8 products found
S.FIVE GROUPE Sarl products

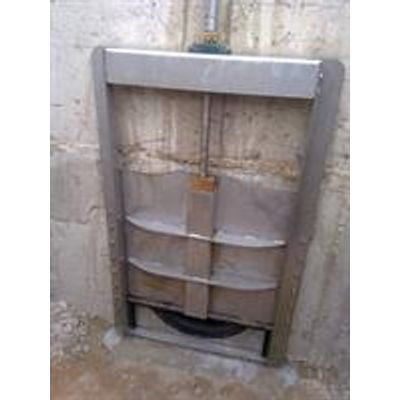

S.FIVE GROUPE - Wall penstock Circular DN 500
Circular Orifice sliding wall penstocks sealed on all 4 sides.
Used for on-off or control applications in wells, tanks, pipe outlets, etc.
Carbon or stainless steel fabricated construction, with tight sealing by means of elastomer seals.
S.FIVE GROUPE - S.FIVE GROUPE. automatic bar screen
Mainly used for the screening of raw water, its inclination and its power make it particularly suitable for structures with very high flow rates, and where screening has to be done over a large width. It uses a central strap as a traction element.
It is made to measure to adapt to all structures.
Although powerful, its simple and robust operating principle keeps all the advantages of bar screens, namely easy maintenance and low operating cost.
S.FIVE GROUPE - Classifier sand
The sand classifier avoids the phenomena of abrasion, clogging and sedimentation in structures and pipelines.
Urban
Urban waste water removal (separation of sand and gravel).
Industrial environment
Treatment of wash water, recycling, glassware, ceramics ...
S.FIVE GROUPE - Rotary screen
The rotary screen consists of a perforated cylinder. The diameter of the holes determines the level of screening. It can be much less than 1 mm. There are two types of equipment:
In one case, the effluents arrive from the outside of the cylinder and the solid particles are recovered outwardly parallel to the axis of rotation.
In the other case, the effluent arrives from the inside of the cylinder and the solid elements are perpendicular to the axis of rotation by means of a worm or a slight inclination.
For this type of scrubber, cleaning is provided by a washing ramp and / or by brushes.
Urban :
Wastewater at the inlet of a sewage treatment plant or downstream of a pre-segregation.
Purified water at the outlet of a sewage treatment plant before rejection.
Wastewater at the entrance to the lagoon.
Industrial environment:
Process water, wash water, wastewater.
Other effluents: valuation of co-products
S.FIVE GROUPE - Conveying and compacting screws
This equipment is mainly dedicated to the treatment of rejections of screening,
Sludge and sand in the treatment of urban or industrial waters.
The waste falls into the conveying screw via an inlet hopper inside the transport zone, the residual water is filtered in the drainage zone.
The rotational movement of the screw, driven by a gear motor, drives the waste to the outlet of the conveying screw or to the compaction zone.
In the case of a compacting screw, the waste accumulates on the outlet flap, which is kept closed by an adjustable pressure spring hinge, compacts on the flap and evacuates as soon as the pressure on the flap is sufficient To open it.
The compaction zone is equipped with a perforated sheet strainer and a receptacle connected to the drainage zone by a pipe in order to recover the filtrates due to compaction.
A washing ramp, to be powered intermittently, allows cleaning of the strainer. The compaction zone can be equipped with an optional frost protection.
S.FIVE GROUPE - agitator
A wide range of agitators for all industries: chemistry, agro-food, water treatment .... These slow agitators can be used with all dimensions of tanks (height, diameter, etc.) and for all the characteristics of the products to agitate (viscosity, aggressiveness, fragility, etc.).
These slow-speed stirrers are available with different turbines as well as different materials (steel, stainless steel 304, 316, or others on request, steel with PVC or PPH plastic coating) in order to be able to respond to all stirring constraints for all Types of fluids and for all industries.
S.FIVE GROUPE - Static sieve
The static screen is equipped with a curved grille
Allowing liquid to pass through and solids
To the recovery area.
The static screen allows a good
Separation of solids for a low price per
Compared to standard bar screens.
Depending on the product to be filtered, it is possible to
A cleaning ramp and horizontal scraper
On the grid.
APPLICATION:
Treatment of non-greasy, non-clogging effluents, and
Containing light suspended matter, Waters
Process, wash water, waste water, Slaughterhouses
DIMENSION
Welded trapezoidal grid (cracks)
Sieving: 100 μm to 3 mm
Max flow: 270 m³ / h in unloaded water
BASIC MATERIALS
Stainless steel: EN 1. 4307 / AISI 304L
Stainless steel: EN 1. 4404 / AISI 316L
S.FIVE GROUPE - Gate valve
The cofferdam valve is designed to be
Mounted in open pipes.
The sealing is obtained on 3 sides by
Water pressure (lateral and base).
APPLICATION
Water treatment, urban collectors,
Routing, irrigation, works
And hydropower plants
DIMENSION
From 200x200 to 4000x4000 mm (Standard).
Other sizes available on request
ORIFICE
Square, circular, rectangular
LOW MATERIALS
Stainless steel: EN 1. 4307 / AISI 304L
Stainless steel: EN 1. 4404 / AISI 316L
