Shaanxi Elade New Material Technology Co., Ltd. products

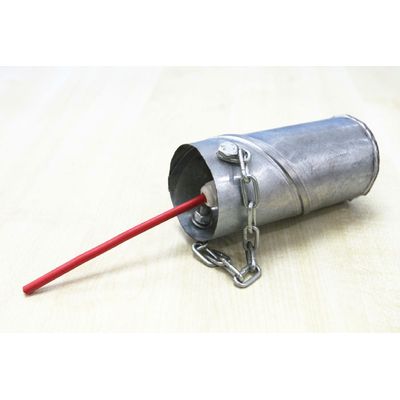

Features: Canister anodes consist of MMO/Ti (tubular, wire, rod , mesh) anode installed in a large metal canister that is filled with coke breeze backfill. Elade provide canister anodes whose core is in MMO tubular or wire anode wrapped with galvanized steel canister. The canister is capped with the anode cable extending out the top of the anode cap.It is commonly used in cathodic protection field, such as buried pipelines or ground beds.

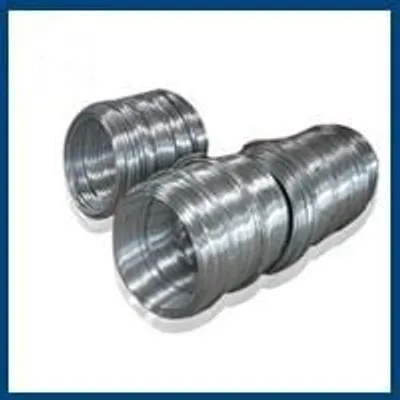

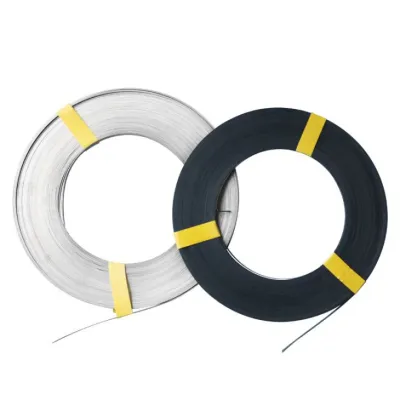

Featurtes: The mmo ribbon anodes are composed of titanium ribbon substrate coated with a mixed metal oxide catalyst. The anodes can achieve 50 years operating lifespan in a current density of 17mA/m. The mixed metal oxide anodes are designed for protecting the bottoms of many large-scale storage tanks. They can be used in sands with various levels of moisture and salt contents without any carbon filling materials. MMO meshes or ribbons were welded together by metal titanium current distribution member as impressed-current anodes in storage tanks’ bottoms for cathodic protection system.

Features: Zinc ribbon anodes are produced according to ASTM-B-418 type I and type II alloy standard.

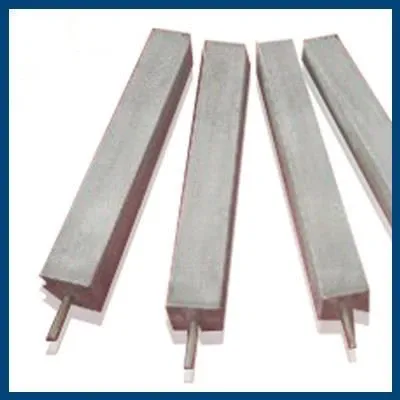

Specifications: carry out standard ASTM-98 ; high potential anode, fine performance, factory direct. High potential magnesium anode in conform to the standard ASTM-98is made from high purity magnesium with high quality. The anode adopting special technique holds splendid electrochemistry performance. In the process of cathode protection, anode consumption is stable; therefore, it has longer life time. In the actual used process, the actual measurement working potential is between-1.8v and 1.85v; therefore, it can provide the most effective protection for structures. It is suggested to use potential magnesium anode in the soil whose resistance is over 8000ohm.cm.

Characteristics: Suit for soil cathodic protection, The life-span is more than 20 years, Perfect reliability, Steady potential
