Shaanxi SK Electronic Technology Co.,Ltd. products

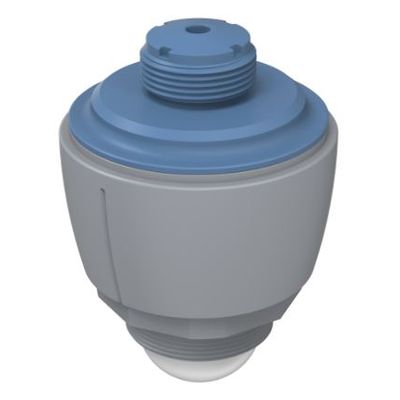

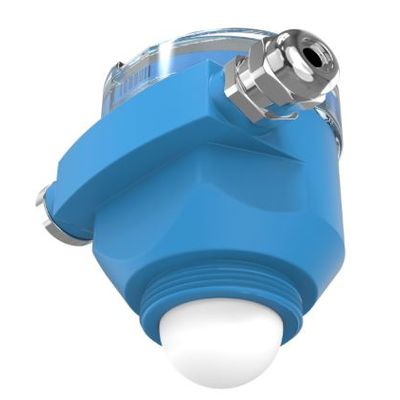

Integrated 80GHz radar level transmitter sensor made of PVDF for highly-corrosion liquids is the ideal sensor for non-contact level measurement in various applications where a high degree of protection is required. It is particularly suitable for water treatment, pumping stations, rain overflow basins and level monitoring. medicion de nivel por radar, medidor de nivel tipo radar. Touchless water level sensor level indicator for tank. This SK-R800EP model comes with Certification issued under the authority of the Federal communications commission.

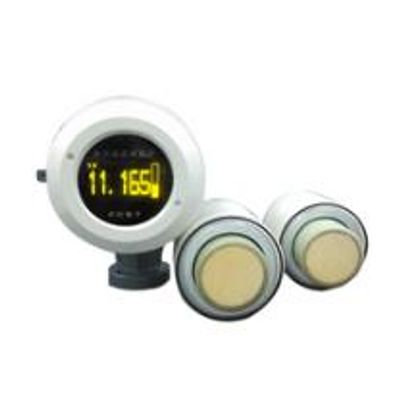

Non-Intrusive Ultrasonic Level Gauge is a kind of instrument developed by SKE which USES the principle of sonar ranging to measure the liquid level inside the tank from the outside of the tank. The product realizes completely isolated measurement.

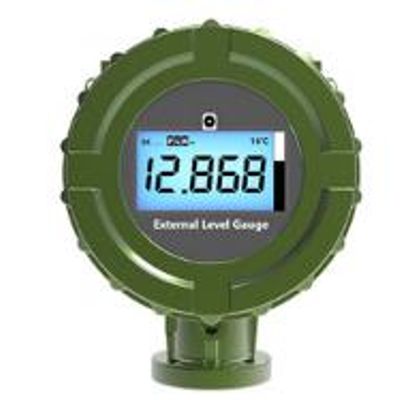

Non-intrusive ultrasonic level gauge with sonar ranging principle, using the special probe gets the sonar signal; the probe has been pasted in the outer wall of the tank. Main system is special sonar wave processing technology, using the SK Method to calculate the level value and output of remote signal. Instrument can through the (4-20)mA analog signal, HART, RS-485, Ethernet, transfers the measurements to the control center, meanwhile can through the wi-fi,Bluetooth,HART,RS-485, infrared, Ethernet debug the controller online. Like the picture, Measure the liquid level, the sonar wave signal from the probe to launch out, after liquid level reflected, the probe detects echo signal. Echo signal by proprietary algorithm to calculate the time (t), system can calculate the liquid level value according to the formula.

Non-Intrusive Ultrasonic Level Gauge with sonar ranging principle, using the special probe gets the sonar signal; the probe has been pasted in the bottom of the tank. Main system is special sonar wave processing technology, using the SK Method to calculate the level value and output of remote signal. Instrument can through the (4-20)mA analog signal, HART, RS-485, Ethernet, transfers the measurements to the control center, meanwhile can through the wi-fi,Bluetooth,HART,RS-485, infrared, Ethernet debug the controller online. Like the picture, Measure the liquid level, the sonar wave signal from the probe to launch out, after liquid level reflected, the probe detects echo signal. Echo signal by proprietary algorithm to calculate the time (t), system can calculate the liquid level value according to the formula.

The sonar pulse of the non-intrusive ultrasonic level switch can pass through the tank wall,the pulse propagate in tank wall and liquid,then be reflected.After detect and calculate about the reflective,it can show whether there is the liquid or not.It also can send the signal to other equipment to detect or control the liquid level.

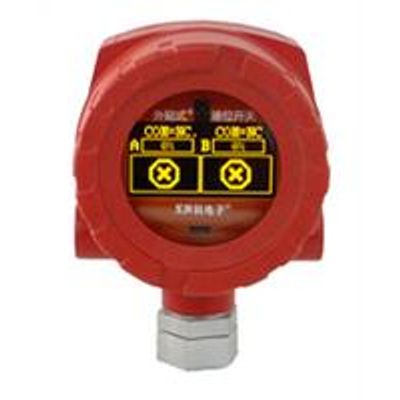

The Non-Invasive level switch is a new type of liquid level monitoring and alarming device. It is mainly used to monitor the liquid level of the storage tank, realize the upper and lower limit alarm or monitor whether there is medium in the pipeline (dry state protection). It can be applied to the liquid level process control of medicine, petroleum, chemical industry, power, food and other industries.

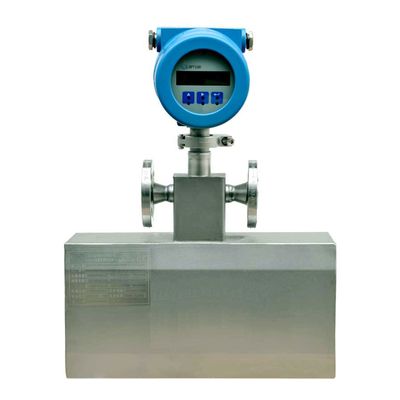

Coriolis flow meter is also known as Coriolis Mass Flowmeter (CMF) , MULTICOR. It is a kind of flowmeter that directly measures the mass flow of fluid. It measures the mass of fluid flowing through the pipe by using the influence of coriolis effect on the vibration phase or amplitude of the two ends of the pipe.Compared with the volumetric flowmeter, mass flowmeter eliminates the influence of temperature, pressure, fluid state, density change and electrical conductivity, and has a natural high precision. It can also measure the density of fluid through resonance frequency, which is one of the development directions of flowmeter.

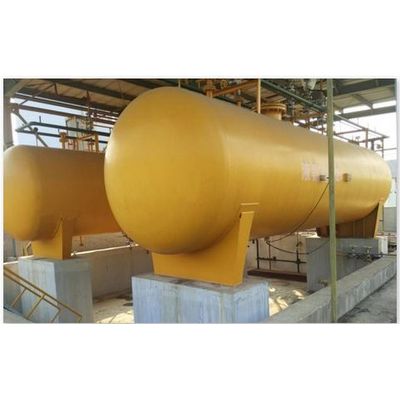

Horizontal tanks are long containers for the storage of crude oil, vegetable oils, chemical solvents, LPG, water, or other petroleum products. Horizontal tank is composed of end cover and horizontal round or oval tank wall and saddle. The volume of the horizontal tank is generally less than 100 cubic meters, it is generally round, oval, there are other irregular shapes.

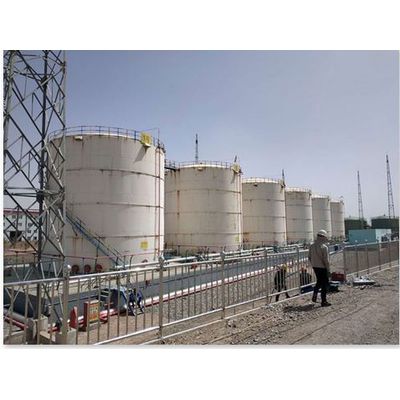

The Non-Intrusive Ultrasonic Level Gauge perfectly solves the problem of measuring the liquid level of the Vertical Tank without the need to open the tank. The pressure, temperature and medium of the spherical tank have no influence on the detection results. Vertical tank: cylindrical tank for storing crude oil, vegetable oil, chemical solvents, water or other petroleum products.Vertical storage tank is divided into fixed top storage tank, floating top storage tank.Special equipment for storing various liquid (or gas) raw materials and finished products.
