Shandong Geosky Technology Co., Ltd products

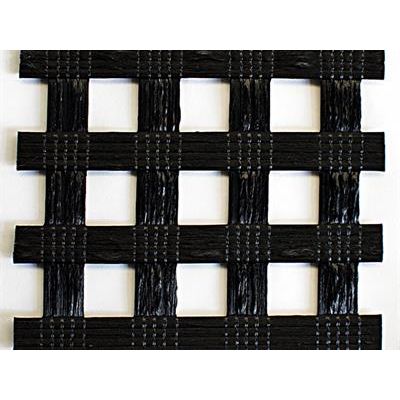

High Strength Polyester Fiber Grid is made of high-modulus and high strength long polyester fiber which are warp-knitted and bundled together as its body and then is coated with fire retarding and static conducting material. It is not only a kind of new type material for mine supporting and protecting , but also the specific materials for open-pit slope protection and reinforcement of sub-grade. It is a good substitute for traditional metal mesh, plastic mesh, steel-plastic mesh and other materials. It is a ideal subsurface supporting and protecting mesh and specific slope protection mesh for open-pit mine.

Warp-knitting polyester geogrid adopts industrial high-strength, high modulus and low-shrinkage twisting polyester fiber as raw material. It is used warp-knitted directional structure, and there is no bend statement between warp and weft yarns on the fabric. The crossing points are bundled and banded together by high-strength polyester fiber, and form solid binding points. After coating high-quality oil or water-soluble PVC, its physical and chemical properties put into great play.

The warp knitting polyester geogrid selects industrial high-strength, anti-embrittlement, low shrinkage polyester yarn as raw material, adopts the warp knitting oriented structure, latitude and longitude in the fabric to the yarn to each other without bending state, Intersection sewn up with high strength fiber filament bundle, forming strong combining site, and through high-quality oil or water based PVC coating processing and form the plane shape of material, fully Play its mechanical properties.

Fiberglass geogrid is a kind of flat mesh material coated with high-quality modified asphalt. It uses high quality reinforced non-alkali fiberglass yarn as raw material and utilizes warp knitting machine to knit as basal body. It adopts warp-knitted directional structure, and makes full use of the fabric yarn strength to improve its mechanical properties.It has good tensile strength, tear strength and anti-creep performance. It follows the principle of similar compatibility and highlights its composite performance with asphalt mixture. It fully protects the basal body of glass fiber, greatly improves the wear-resisting and anti-shearing performance. So it can be used for road enhancement, resistance to rutting cracks such as road disease happened. It solves the problem that asphalt pavement is difficult to reinforce.

Used in landfill, river embankment, lake dam, tailing dam, sewage dam and reservoir area, channels, and other hydraulic ponds.

Waterproof board is also known as geomembrane with thickness no less than 0.8mm. Geomembrane is Its main function is to prevent the leakage of liquid and gas evaporation.
Raw materials include: low density polyethylene (LDPE), linear low density polyethylene (LLDPE), high density polyethylene (HDPE), ethylene / vinyl acetate copolymer (EVA), polyvinyl chloride (PVC), ethylene vinyl acetate Asphalt (ECB) and so on.

This product has excellent permeability, filterability and durability. It can be widely used in railway, highway, sports hall, dam, water conservancy construction, tunnel, coastal beach, reclamation, environmental protection and other projects. It mainly divides spun non-woven geotextile and split film yarn woven geotextile. It has isolation, filtration, drainage, reinforcement, protection, and sealing functions.

Composite geomembrane is a impermeable material which is composite of geotextile and geomembrane. It is mainly used in impermeable, waterproofing, isolation and hydraulic reinforcement engineering materials. It is divided into one cloth and one membrane, two clothes and one membrane. The common width is 4~6m, unit weight range from 200g to 1500g. The anti-stretching, anti-tearing, anti-breaking strength and other physical performance indexes are high. So it can meet the water, municipal, construction, transportation, subway, tunnel and agriculture irrigation, aquaculture, vegetable cultivation, and many other engineering needs.

The Steel-plastic Geogrid is a grid mesh, which is made by high strength steel. The steel turns to steel plastic string after covering with Polyethylene resin, and then thermal melting welded by ultrasonic welding machine according to the technological requirements. The convex node steel plastic geogrid is the upgraded production of normal steel-plastic geogrid. The convex node is formed by special technique in the process of thermal melting welding. It overcomes the weaknesses of normal steel-plastic geogrid, such as less peel resistance strength, node easy to crack, etc. With different proportion of materials and special technique, the peel resistance strength of the ode can be 300N to 500N.

There are two series of drainage board: roller material & sheet material. The roller material includes three types: thermal melting, lapping & self-adhered. The molding process adopts special technology to press the plastic sheet material out of the closed convex columnar shell to form concave-convex film. The shell is continuous and has three-dimensional space and certain supporting height. At edge processing, thermal sticking butyl rubber, coating with geotextile at the top of the shell, it can be used for water seepage, drainage and storage. It is also known as: self-adhesive PE drainage board, drainage plate, drainage protective board, water treatment board, plastic bump drainage board, plastic inter layer board.
