Shanghai Dazhang Environmental Protection Co., Ltd. products

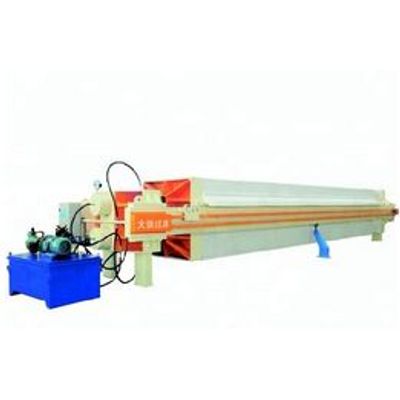

Program Controlled Automatic Chamber Filter Press uses microcomputer controller, PLC, touch screen to control the operation of filter press(such as filter plate pressing, filter plate loosing, effusion plate open and close, water washing, automatic inclining, etc), the remote control port is left to achieve remote automatic control. It is suitable for materials in easy dehydration and high frequency working industries. It has the features of compact structure, stable performance, high efficiency and low running cost.

Hydraulic filter press use eletrical-contact pressure meter to realize pressure keeping, so it is features of easy operation, stable performance, but the cakes are discharged manually. So it suitable for the filter press which filtering area is not too big and have no too much plates.

Mechanical filter press is squeezed by the screw, which is driven by motor via reducer. The special lock nut can easily and stablely realize pressure maintenance. It also can realize automatic control via motor comprehensive protector and also can realize over-heating protection and overload protection.

Recessed Plate /Plate& Frame Design Feature Screw jack filter press adopts screw jack as closing system. It has features of simple structure, easy operation, no power consumption, cost saving. It is generally used in filter press with 1-40m2 filter area.

High temperature cast iron filter press is made from high quality cast iron or nodular cast iron. It is suitable for the filtration of high temperature materials. The filter plate has high strength, large filtration pressure and long service life. Widely used in oil refining (white oil, glycerin), metallurgy, ceramics industries (kaolin, activated bentonite, soil) which solid-liquid separation process needed.

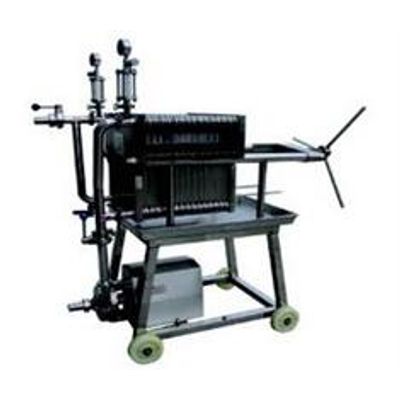

S.S. multilayer filter is for fine filtering. It is surface is polished, has seals, and normally used together with S.S. feeding pump. The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate pass through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realized solid liquid separation. It is normally used for following industries: laboratory, fine chemicals, medicine chemicals, food, cosmetic and others industries of solid liquid separation and liquid filtration.

Stainless Steel Filter Press For fine filtration BASJL 600 BASJL 400 Technical data Application Stainless Steel Filter Press For fine filtration is suitable for various industries: liquid medicine, liquor, beverage, juice, syrup, vinegar, oils, fine chemicals, electroplating etc..

Cartridge filter (also named precision filter), the housing usually is made of stainless steel. The filter uses cartridge as the filtering medium. The cartridge can be: Melt Blow Cartridge/String Wound Cartridge/PP Folded Cartridge/ Nylon Membrane Cartridge/PES Cartridge/PTFE Cartridge (Detail pls check page 21-22). A different filtering element is selected according to different filtered material and the designed technology to reach the quality requirements. The filter precision range: 0.1~60um; the model includes 10 inches, 20 inches, 30 inches and 40 inches; Connection ports: plug port (222 and 226) and flat port.

Jacketed bag filter has a double layers design. There is an external layer outside the housing, and the layer has an inlet and an outlet. Steam, water or conduction oil can be introduced into the external chamber, it can keep or increase the liquid temperature in the vessel, so that to protect liquid from crystallization or solidification caused by temperature dropping; and improve the filter speed of viscous liquid; and meet the temperature requirement in next process (this filter’s inside structure, work principle and features are same as single bag filter in Page9). We can customize various jacketed bag filter as per your different working condition.

The structure, principle, features and applications of multi bag filter is same as single bag filter (Page 09). Regarding the inlet/outlet type, normally it adopts “side-in / bottom-out” or “side-in and side-out” type (especially we also can supply “bottom-in and bottom-out”type). Regarding the opening type, it has: eyebolts, rocker and quick open. The bag quantity can be  2 - 24 bags.
