Shanghai Pullner Filtration Technology Co.,Ltd products

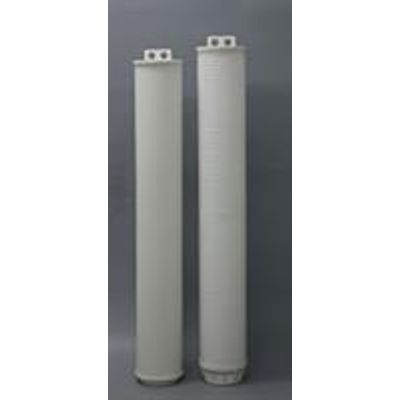

PHFL Series High Flow Filter Cartridge is made of diameter 6 "(152.4mm), single open end, without inner core, inside to outside flow direction. Filter body have two types: melt-blown and pleated. And pleated filter is divided into two forms: standard and crescent-shaped. End caps and filter layer using hot-melt welding, no bonding agent, with a wide range of chemical compatibility, can be applied to various fields.

PHFLH Series High Flow Filter Cartridge is made of diameter 6 "(152mm), single open end, without inner core, inside to outside flow direction. Filter media and support are made of high temperature materials, can long-term use under the conditions of 120 °C. End caps and filter layer using hot-melt welding, no bonding agent, with a wide range of chemical compatibility, can be applied to various fields.

PHFK Series High Flow Filter Cartridge is made of diameter 6 "(152.4mm) and pleated design, with high-strength pp center core, outside to inside flow direction. Outer cage have two types: integral pp cage and polyester mesh.

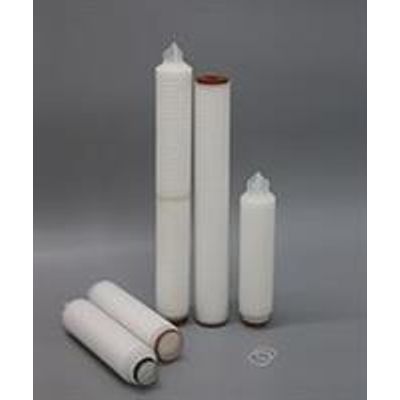

PLZ-PPL series pleated PP filter is Economy type for general application, with filtration efficiency about 95%.

PLZ-PPH series pleated PP filter Cartridge has high precision filtration near to absolute with efficiency more than 99.8%.

PHFZ Series washable pleated filter cartridge is currently the most widely used Condensate Polishing pre-filter cartridge in domestic It   s made of pleated high-precision polypropylene filter membrane, all welded using hot-melt, without any additives, adhesives and surfactants, which ensure high accuracy, high-throughput high-strength, low extractables and low initial pressure, h can be divided into PHFZ-1 (7 parts), PHFZ-II{2 parts) and PHFZ-IH (4 parts) three types. The PHFZ-II (2 parts) is welded of 40 " and 30 ", is the only one filter with 69mm diameter and integral outer support in domestic.

PHFX Series String Wound Filter Cartridge is washable depth filter cartridge, use of high-performance fiber (polypropylene, cotton, glass fiber, etc.) according to a specific process, tightly wrapped on a porous skeleton(PP or SS support), put an end to the fiber deformation and fiber shedding, can effectively remove suspended solids in the fluid, particulates, rust and other debris, has wide applicability.

PLX Series String Wound Filter Cartridges are composed of textile fibers(polypropylene, cotton thread, glass fiber) according to a specific process, tightly wrapped on a porous skeleton{PP or SS support), formed loose outer layers and tight inner layers structure, which can effectively filter suspended solids, rust, particles and other impurities in fluid.

Metal wedge wire filter is manufactured by the V-shaped wire through a special welding technology welded on the ribs(vertical wire or support wire). It has high welding strength, uniform gap, strong corrosion resistance, big effective filtration area, high penetration efficiency, simple structure, etc.

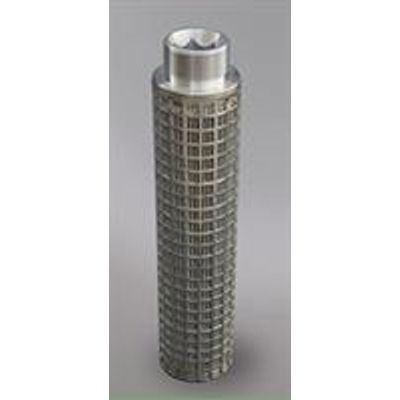

PHSF series stainless steel fiber felt pleated filter cartridge is made of stainless steel fiber felt by pleating wave shape, with larger filter area, high dirt holding capacity.
