Shanghai ST-Solar Co., Ltd products

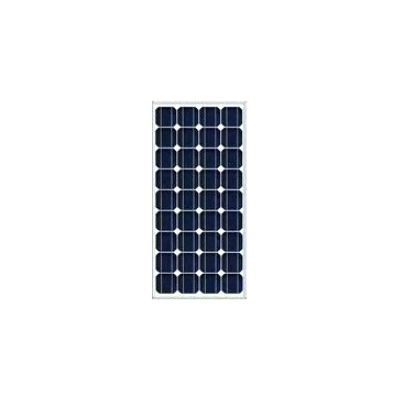

Model ST-80W - Monocrystalline Modules
Peak Power(Pm) 80W.Open Circuit Voltage(Voc) 21V.Open Circuit Current(lsc) 4.92A.Maximum Power Voltage(Vmp) 17V.Maximum Power Current(lmp) 4.42A.Maximum System Voltage(Vmp) 1000VDC.Dimentsion(mm)1200x545x40mm.Cell series36(4x9)

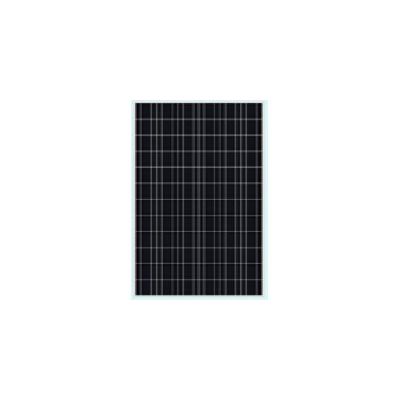

Model ST-280W - Polysilicon Module
Peak Power(Pm) 280W .Open Circuit Voltage(Voc) 43V.Open Circuit Current(lsc)8.1A.Maximum Power Voltage(Vmp)34.6V.Maximum Power Current(lmp)7.3A.Maximum System Voltage(Vmp)1000VDC.Dimentsion(mm)1957x985*40mm.Cell series72(6x12)
Model ST-42W - Thin Film Modules
Peak Power(Pm) 42W.Open Circuit Voltage(Voc) 60V.Open Circuit Current(lsc) 1.17A.Maximum Power Voltage(Vmp) 42V.Maximum Power Current(lmp)1.0A.Maximum System Voltage(Vmp) 600 VDC.Dimentsion(mm)932x568*37mm*.Cell seriesAmorphous

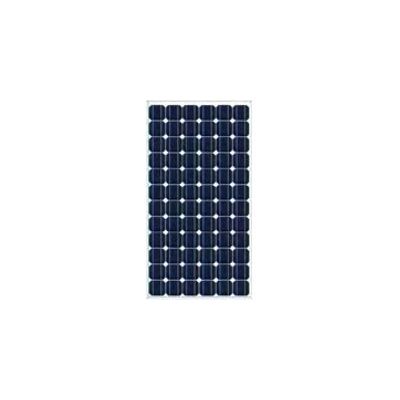

Model ST-160W - Monocrystalline Modules
Peak Power(Pm) 160W.Open Circuit Voltage(Voc)43V.Open Circuit Current(lsc)5.23A.Maximum Power Voltage(Vmp)34V.Maximum Power Current(lmp)4.71A.Maximum System Voltage(Vmp)1000VDC.Dimentsion(mm)1580*808x40mm.Cell series72(6x12)
Model ST-220W - Monocrystalline Modules
Peak Power(Pm) 220W.Open Circuit Voltage(Voc)58V.Open Circuit Current(lsc)5.33A.Maximum Power Voltage(Vmp) 46V.Maximum Power Current(lmp) 4.8A.Maximum System Voltage(Vmp) 1000 VDC.Dimentsion(mm) 1000 VDC.Cell series 96(8×12)
