Shelco Filters products

Single Cartridge Housings with Bolt & Nut Closure for Double Open Ended Cartridges for Liquid Applications.

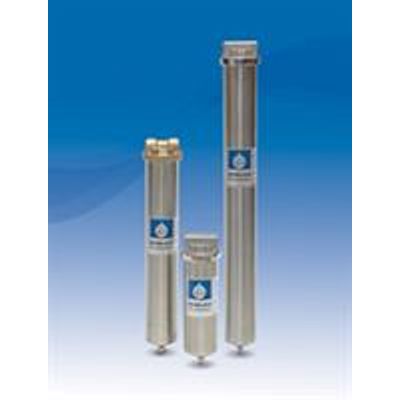

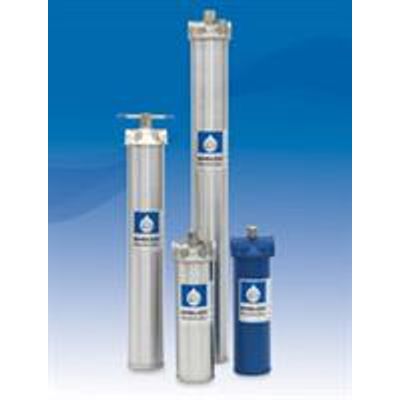

Single Careavy duty construction forlt & Nut Closure for Double Open Ended Cartridges for Air and Gas Applications. 304L or 316L Stainless Steel, Brass Nickel Plated Head with 304L Stainless Steel Body or Cast Iron Head with a Steel Body - Heavy duty construction for durability. Maximum operating pressure: 250 PSI (17 bar) @ 275°F (135°C).. Available in 1/4`, 3/8`, 1/2`, 3/4`, and 1` connection sizes. connection sizes. Wide variety of gasket options for compatibility with almost any fluid. Designed for industrial and commercial filtration needs. Simple Bolt & Nut closure for quick cartridge change outs (T-handle optional). In line fittings for easy installation (standard FNPT, flanged, sanitary (TC) or BSP connections). Knife edge seal provides positive sealing of double-open-ended cartridges.

Single Cartridge Filter Housings with Ring Nut Closure for Double Open Ended Cartridges.

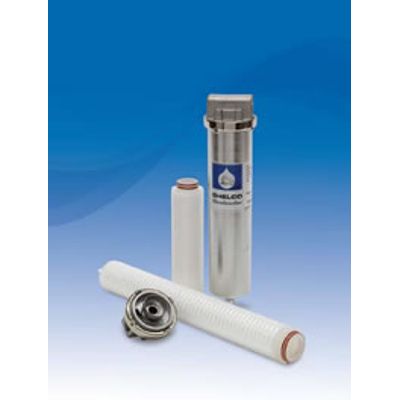

Single Cartridge Housings with Ring Nut Closure for Single Open-Ended Cartridges. Ideal for High Purity commercial and industrial applications. Accepts Single Open-Ended cartridges with 222 or 226 style connectors. Heavy duty 316L stainless steel construction for maximum durability. Maximum operating pressure is 300 PSI (20 bar) @ 200°F (93°C). Quick-locking ring nut closure for easy cartridge change outs. Available in 3/4` and 1` connection sizes. Wide variety of gasket options for compatibility with almost any fluid. In line fittings for easy installation (standard FNPT, flanged, sanitary (TC) or BSP connections). Includes mounting bracket kit and rod (for opening & closing).

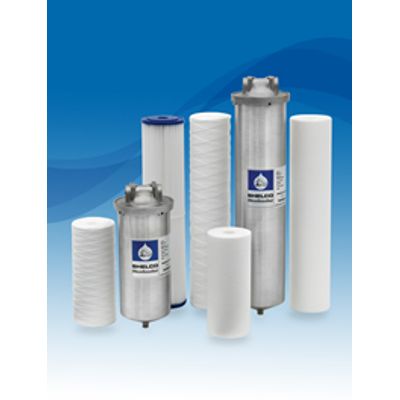

Filter Housings features heavy duty 304L stainless steel construction for maximum durability. Accepts standard BB style (4 1/2″ diameter) double open-ended cartridges for applications requiring greater dirt holding capacity or higher flow rates. Maximum operating pressure is 150 PSI (10 bar) @ 200°F (93°C). Ideal for higher temperatures and pressures versus plastic housings. Most efficient and cost-effective choice for commercial and industrial filter needs. Quick-locking ring nut closure for quick and easy cartridge change outs. Available in 1″ FNPT in-line fittings for easy installation. Knife edge seals with variable spring design to eliminate by-pass and allow for cartridge length variations.

Plastic Housings for Economical Applications. Economical alternative to metallic housings for lower pressure and cold water applications. Ideal for corrosive or sensitive fluids. High quality FDA Grade Polypropylene (opaque sumps) and Styrene Acrylonitrile (clear sumps) construction with EPDM gasket. Available in standard single (10`) and double (20`) length Double Open Ended (DOE) cartridges lengths with 1/2`, 3/4` and 1` NPT connections.

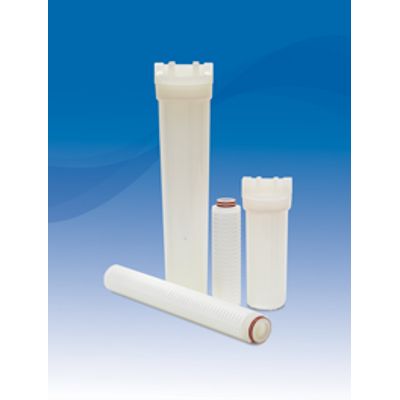

Virgin Polypropylene Housings for High Purity Applications. Economical alternative to stainless steel housings for high purity applications. 100% Natural Polypropylene construction with Viton O-ring for minimal extractables. Available in standard single (10`) and double (20`) length cartridge housings with 3/4` NPT connections for either DOE or 222 cartridge configurations. Meet FDA requirements for potable water, food and beverage applications.. Operating temperature: 40-125°F (4-52°C). Maximum operating pressure: 125 PSI.

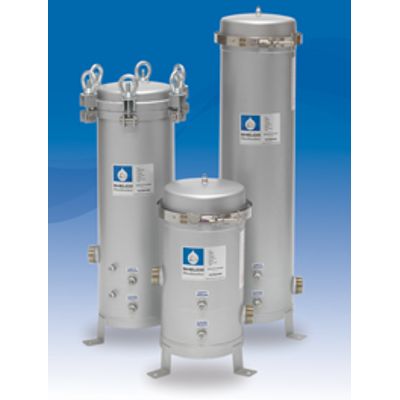

Multi-Cartridge Housings for Light Commercial Applications. Heavy duty 304L or 316L Stainless Steel construction with Band Clamp or Swing Bolt Closure for maximum durability. Holds four (4) or five (5) cartridges to service a wide range of flow rates. Accepts double-open-ended style cartridges (222 and 226 style adapters optional). Maximum operating pressure: 150 PSI (10 bar) @ 300ºF (149ºC). Inlet and outlet connections: 2` MNPT (flanged, sanitary (TC), BSP and other options available). Exterior surface finish: Poly-coat over stainless steel (electropolish, other surface finishes are optional).

Multi-Cartridge Housings for Commercial / Light Industrial Applications. Heavy duty 304L or 316L Stainless Steel construction with Band Clamp or Swing Bolt Closure for maximum durability. Holds seven (7) cartridges to service a wide range of flow rates. Universal cartridge connectors accept standard double-open-ended (DOE) style cartridges or 222 style cartridges with flat or fin closed ends (226 style adapters optional). Maximum operating pressure: 150 PSI (10 bar) @ 300ºF (149ºC). Inlet and outlet connections: 2` MNPT (flanged, sanitary (TC), BSP and other options available). Equipped with stainless steel mounting legs. Exterior surface finish: Poly-coat over stainless steel (electropolish, other surface finishes are optional).

Multi-Cartridge Housings for Industrial Applications. Heavy-duty 304L or 316L Stainless Steel construction with Band Clamp or Swing Bolt Closure for maximum durability. Holds twelve (12) or twenty-two (22) cartridges to service a wide range of flow rates. Accepts standard double-open-ended (DOE) style cartridges (222 or 226 style adapters optional). Maximum operating pressure: 150 PSI (10 bar) @ 300ºF (149ºC). Inlet and outlet connections: 3` flange (12FOS) and 4` flange (22FOS) (sanitary (TC), BSP, grooved or other pipe fitting options available). Equipped with heavy-duty stainless steel mounting legs. Exterior surface finish: Poly-coat over stainless steel (electropolish, other surface finishes are optional).
