Shenyang Great Wall Filtration Co.,Ltd products

Great Wall Activated Carbon Filter Sheets were developed to satisfy general purpose carbon adsorption applications in the food and beverage industry. Activated carbon is highly porous over a broad range of pore sizes, from cracks and crevices to molecular dimensions. It is this porosity that provides activated carbon’s unique adsorptive properties.  Activation refers to the development of the adsorption properties of carbon. Adsorption occurs when the organic molecules bond to the internal pores of the activated carbon filter sheets. This happens in pores slightly larger than the molecules being adsorbed, which makes it extremely important to match the molecule being adsorbed to the pore size of the activated carbon.

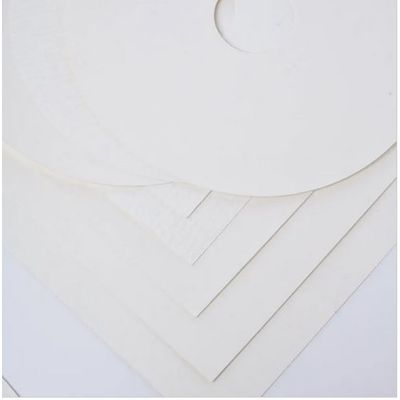

K series depth filter sheets are specifically manufactured for polishing filtration of viscous liquids and media containing particles.  The depth filter sheet is used in the chemical, cosmetics, and food industries for clarifying filtration of coarse, crystalline, amorphous or gel-like impurity structures. According to given specifications, a wide range of filtration tasks can be performed, even with highly viscous liquids.

Great Wall A series high throughput sheets are characterized by their relatively low density, high void volume, greater absorption capacity and increased depth.

Great Wall S series is a new type of washable, reusable support sheet for pre-coat filtration in diatomaceous earth frame filters that you can use to achieve particularly high performance in the food and beverage industry.

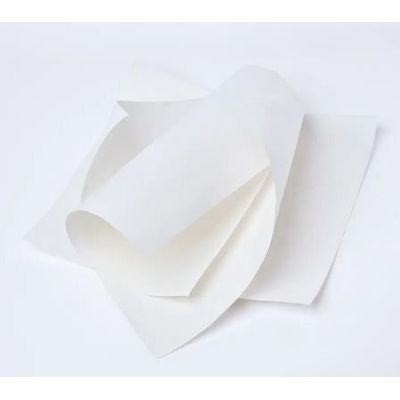

High Viscosity Fluid Filter Papers, we also called fast filter paper. They are made of wooden pulp. Great Wall fast filter paper has a very large air permeability, the fibers are smoother after treatment, There is a higher a cellulose content. It is suitable for filtration of high-viscosity liquids with poor liquid fluidity and more solid particles and impurities. Enables high-viscosity liquids to be used for larger fluxes during filtration. Fast filter paper application.

Food grade oil filter paper adopts pure imported natural wooden pulp, and the specific specifications can be produced and cut according to customer requirements.

The plate and frame filter design is the standard in basic process depth filtration in applications across various industries including pharmaceutical, chemical, cosmetic, food & beverage. Plate and frame filter presses provide the lowest cost of filtration per unit of fluid processed. Great Wall offers specific filter designs, with unique features for flow rates ranging from large volumes to pilot plant and laboratory scale filtration.

Our Depth-Stack Filter Cartridge are a new type of filter cartridge using depth filter sheets. It is designed using a double separator concept. This separator design increases the total stability of the filter cartridge as the separators fully support the sheet material. This design also prevents filter sheet deformities after heat treatments and adverse effects of contact with hot sanitation. It is manufactured with rigid external clips to prevent damaging filter sheets during module loading and unloading while allowing for easy and reliable handing.

The filter cloth produced by us has smooth surface, strong wear resistance, good air permeability, high strength, acid resistance, alkali resistance and high temperature resistance.

Coffee filters of paper are made from about 100 g/m2 filter paper. The crimping of the sides allows the coffee to flow freely between the filter and the filtration funnel. The raw materials (pulp) for the filter paper are coarse long fiber, often from fast-growing trees. Both bleached and unbleached qualities are made.
