Shenzhen Beilai Technology Co., Ltd products

BLIIoT - Data Acquisition IO Module for Harsh Industrial Application Environment

Modbus remote data acquisition module is designed to meet the needs of harsh industrial application environment, providing 2/4 digital input signal acquisition, 2/4 analog and RTD PT100 input signal acquisition, 2 /4 digital relay output control, used as Modbus slave expansion module, with RTU, PLC, HMI and other Modbus master stations to achieve remote digital signal, analog, RTD acquisition and digital relay remote control functions. Widely used in various industrial automation measurement and remote control systems. Features: Model: DAM102 Digital Inputs: 2 channel Serial Port: 1 RS485 Protocol: Modbus RTU Dimensions: 70x 88 x 30 mm

BLIIoT - Industrial Wireless IoT Gateway Temperature&Humidity for Collect Monitoring Scenarios

S475 Cellular IoT RTU integrated with 4G and Ethernet module, supporting dual SIM cards, it comes with a variety of I/O interface, 2 RS485 used to acquiring data from SCADA, PLC, HMI. Users can remote monitor and manage the device by SMS, APP, Web, and BLIIoT cloud. It is widely used in unmanned room, water pump control, sewage treatment, intelligent breeding and other occasions. ●8 digital input, 6 analog input and 4 digital output; ●1 Ethernet port (RJ45), support data acquisition of 5 PLC via Modbus TCP protocol, and upload data to cloud; ●Embedded TCP/IP stack, supporting Modbus RTU/TCP, MQTT and transparent transmission; ●Support Modbus RTU/TCP and MQTT protocol conversion; ●Built-in TCP port, can be as TCP Server and supports up to 5 terminal accesses; ●Built-in 8G large-capacity SD card for storing history records, history records up to 10,000 events; ●Wide working voltage design, support 9 ~ 36VDC power supply, and with anti-reverse connection protection design;

BLIIoT - Wireless Cellular IoT Modbus RTU for BTS Monitoring Remote Data Acquisition

S275 is a 4G RTU with IIoT data acquisition, remote monitoring and control, SMS alarm functions, it is widely used in remote data acquisition and monitoring of various industries, such as smart grid, smart transportation, industrial automation, smart building, firefighting, public safety, environmental protection, meteorology, digital medical, agriculture, forestry, water, coal mining, petrochemical and other fields. ●8 digital input, 4 relay output, 6 analog input and 1 temperature&humidity input; ●1 RS485 serial port, Modbus RTU (Master/Slave), can expand multiple Modbus Slave devices, Max. 320 data points; ●Embedded TCP/IP stack, supporting Modbus RTU, Modbus TCP and transparent transmission; ●Built-in powerful telephone and SMS alarm function, regular reporting, abnormal upper and lower limit alarm; ●Local logic control of the device, linking relay outputs based on monitoring of digital input and analog value thresholds;

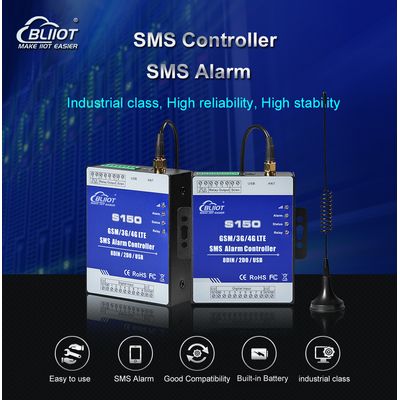

BLIIoT - 4G SMS Alarm Controller 8DIN 2DO for Remote Control and Monitoring

S150 is a cost-effective remote SMS monitoring controllers, supporting 8 digital input alarm, recovery status alarm and 2 relay output. Users can easily achieve remote control (on and off) of equipment, status inquiry, monitoring and anti-theft protection through SMS or cell phone SMS APP software anytime and anywhere. ●8 channels digital input, 1 associated relay output, 1 SMS control relay output; ●SMS arming and disarming; ●Power failure alarm function, automatically send SMS to user's cell phone for alarm when AC power is lost or restored; ●Timing patrol, you can set 0-24 hours host automatic reporting function, so as to avoid the failure of alarm due to the lack of sufficient balance of SIM card in the host.

BLIIoT - Wireless Network Fault Monitoring RTU for Disconnection and Power Failure

4G wireless remote network fault monitoring terminal RTU5028E can be used for disconnection and power failure network fault monitoring, applicable to the state monitoring of server rooms, base stations, laboratories, network cameras, etc.. It can automatically determine the cause of failure of 7 network devices, distinguish whether the network device failure is caused by network failure or power failure, and can automatically or manually restart the device remotely to solve the failure problem, which greatly improves the efficiency of network equipment operation and maintenance. 1.Multi-way real-time monitoring of network disconnection + power failure + network cable failure; 2.Supports simultaneous monitoring of 7 network devices, including WiFi devices; 3.Automatically determine whether a network device failure is caused by a network or a power outage; 4.Automatic or manual remote reboot of the device to solve problems quickly; 5.Built-in 4G and Ethernet communication method;

BLIIoT - Multiple Protocol Conversion Industrial IoT Gateway for Smart City

BL110 IIoT gateway comes with 4 serial ports and 2 network ports. Support various PLC protocols, Modbus RTU, Modbus TCP, DL/T645, BACnet/IP, BACnet MS/TP to Modbus TCP, OPC UA, MQTT, BACnet/IP protocol conversion, Huawei IoT, Alibaba IoT, AWS, ThingsBoard, Sparkplug B, Ignition SCADA, BLIIoT Cloud. Support custom secondary development.

BLIIoT - ARM Based Embedded EdgeCOM Computer for Industrial Solutions

EdgeCOM BL304 Embedded ARM Computer is built around NXP i.MX8M based on Arm Cortex-A53 and Cortex-M4 cores, running speed up to 1.8GHz, 2G DDR4 RAM, 8GB eMMC Flash. The embedded ARM based controller supports Linux, Android, FreeRTOS and other systems. The Embedded controller comes with 4 serial ports, 1 CAN port, 2 Ethernet ports, 2 Digital inputs, 2 Digital outputs, 2 SIM card slots, 1 Mini PCIe expansion slot for 4G/WiFi module. This tiny embedded computer is widely applicable to a variety of industrial solutions. The ARM based embedded controller suppotrs Ubuntu, Debian; Node-Red, QT, Python, C++; MySQL, InfluxDB, SQLite, Docker, Ignition for secondary development. The Embedded controller comes with 4 serial ports, 1 CAN port, 2 Ethernet ports(1 100M Ethernet port, 1 Gigabit Ethernet port), 2 Digital inputs, 2 Digital outputs, 2 SIM card slots, 1 Mini PCIe expansion slot for 4G/WiFi module.

BLIIoT - GSM SMS Alarm Wireless Remote Controller for Industrial IoT

S272 is a 4G RTU with IIoT data acquisition, remote monitoring and control, SMS alarm functions, it is widely used in remote data acquisition and monitoring of various industries, such as smart grid, smart transportation, industrial automation, smart building, firefighting, public safety, environmental protection, meteorology, digital medical, agriculture, forestry, water, coal mining, petrochemical and other fields. 1. 8 digital input, 4 relay output, 6 analog input and 1 temperature&humidity input; 2. 1 RS485 serial port, Modbus RTU (Master/Slave), can expand multiple Modbus Slave devices, Max. 320 data points; 3. Embedded TCP/IP stack, supporting Modbus RTU, Modbus TCP and transparent transmission; 4. Built-in powerful telephone and SMS alarm function, regular reporting, abnormal upper and lower limit alarm; 5. Local logic control of the device, linking relay outputs based on monitoring of digital input and analog value thresholds;

IoT Gateways - PLC IoT Gateway

Beilai - PLC Gateway

PLC/Modbus Gateway BL102 is an industrial IoT gateway that converts various PLC Modbus RTU and Modbus TCP into Modbus TCP, OPC UA, MQTT, Huawei Cloud IoT, AWS, Aliyun, ThingsBoard, KPIIOT Cloud and other protocols.

Beilai - Industrial IoT Edge Gateway

Industrial IoT Gateway BL110 is a rugged industrial IoT gateway, especially suitable for industrial IoT, for realizing IT and OT integration, OT and cloud platform communication. Industrial IoT Gateway BL110 used to convert Modbus, Modbus TCP, DLT645, PLC, BACnet MS/TP, BACnet/IP and other industrial protocols to MQTT, OPC UA, BACnet/IP, Modbus TCP and other protocols.Support BLRMS (also known as BLIIOT RMS) and can facilitate remote upgrades of software versions as well as device management.
