Shenzhen Milont Technology Co.,Ltd. products

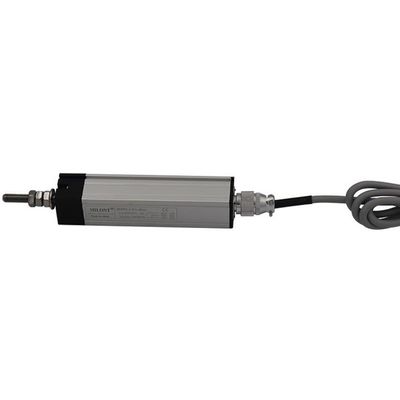

Characteristic: Principle of potentiometer, absolute position measurement. Conventional output voltage signal, current signal output and RS485 signal output can be customized. High precision, good stability, dust and wear resistance. The structure is simple and easy to install and use.

Characteristic: Principle of potentiometer, absolute position measurement. Conventional output voltage signal, current signal output and RS485 signal output can be customized. High precision, good stability, dust and wear resistance. The structure is simple and easy to install and use.

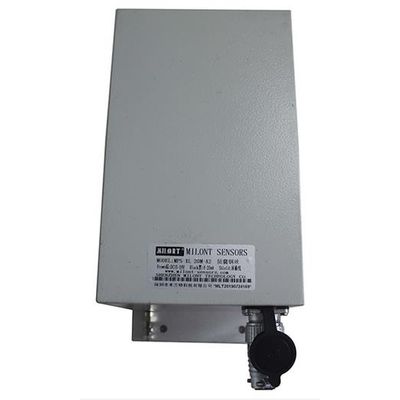

MPS series â…ª super long rope displacement sensor, measuring range 15000m~30000m, the sensor  has high accuracy, good stability, simple structure, easy to install and use. The output signals are:  resistance output, voltage output, current output, RS485 output and increase pulse output optional It is suitable for precise measurement of long stroke displacement

Howell WPS economical drawstring displacement sensor, measuring range 100mm-7000mm,  S type (small 100mm-2500mm), M type (medium 500mm-7500mm), sensor output signal: resistance output (5K  or 10K) , Voltage output: (0-5V, 0-10V, three-wire or four-wire), current output (4-20MA, two-wire, three-wire or  four-wire; 0-20MA, two-wire, three-wire or four-wire System), pulse output (AB phase or ABZ phase pulse  square wave, differential signal output), small sensor size, good stability, easy to install and use.

Milont HPS cable displacement sensor is imported from BEBIK Germany which is a high-precision sensor, the range of 300~7000mm, the sensor signal output types are: resistance output, voltage output (0-5V;0-10V), current output (4-20mA, two-wire or three-wire system). The sensor is standard equipped with external thread rope head, high precision, good stability, easy installation and use.

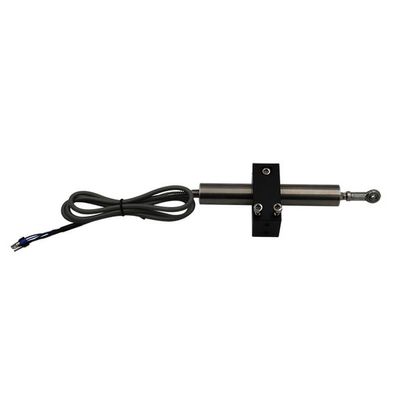

GT series split-type LVDT displacement sensor has excellent performance, the sensor is powered by 12-24VDC,  is equipped with fisheye head, optional universal joint slider, and the electronic circuit is sealed in a 304 stainless  steel metal tube, which can be stable for a long time in harsh environments such as humidity and dust Work,  the output signal is a standard 0-5V or 4-20MA output that can be used by a computer or PLC, or RS485 digital signal

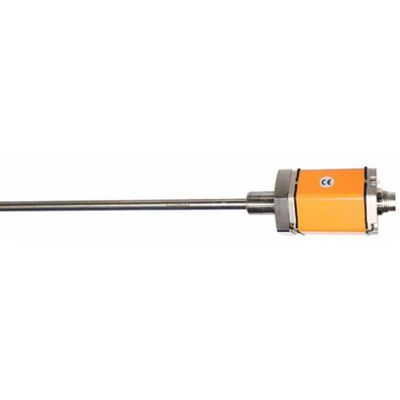

Strong and durable: Fully enclosed design, the highest IP68 protection level . Straight line measurement Absolute output, no need to return to zero. Easy to use: Standard signal output, maintenance free. Never wear: Continuous non-contact measurement.
Full range adjustable: 100% adjustable zero and full range. High resolution: The highest resolution is 0.5um.

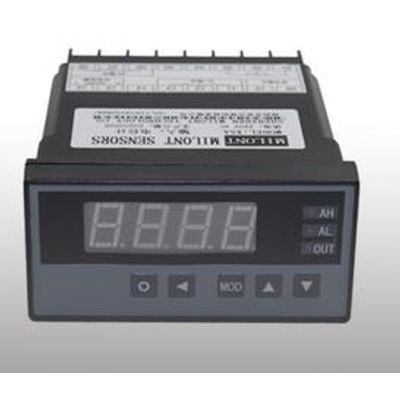

Milante XSA displacement digital display meter can be used with all kinds of displacement sensors, suitable for all kinds of automatic equipment displacement display, specific position monitoring and early warning.

Waterproof analog transmitter module can be connected to any electronic ruler or resistance output type drawstring ruler, and convert the DC voltage signal to 0-3.3V, 0-5V, 0-10V or 4-20mA ( Two-wire or three-wire) current signal.  The transmitter has a built-in lightning protection chip, which has high protection performance, and can be used in the open air or work stably in harsh environments for a long time

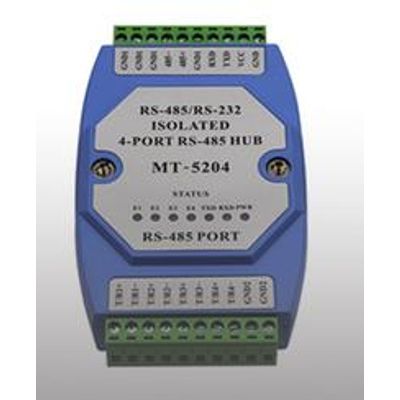

The RS485 hub supports up to 115.2 Kbps transmission rates. In order to ensure the safety and reliability of data communication, the interface adopts photoelectric isolation technology to prevent the lightning surge from introducing the converter and equipment.Built-in photoelectric isolator and 600W surge protection circuit, can provide 2500V isolation voltage, can effectively suppress lightning strike, electrostatic discharge and site interference.
