Double walled construction. Inner chamber made of anodized Aluminum / S.Steel. Outer body made of mild steel is powder coated/painted. Temperature thermostatically controlled by hydraulic thermostat from 50°C-250°C. Elements are at the bottom and sides. Built in `L` shape thermometer. The gap between the inner & outer chamber is filled with high grade glass wool to avoid the thermal losses and having perforated adjustable trays. Two pilot lamp on/off switch. Work on 220/230 V.AC. Following sizes are available

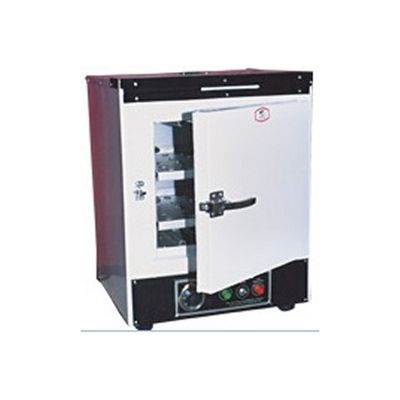

Temperature thermostatically controlled by hydraulic thermostat from 50°-300° with a sensitivity of +/- 3°C. Beaded heating elements are placed in ribs at the bottom and sides. Built in `L` shape thermometer double walled, inside made of Stainless Steel and outer M. Steel painted with attractive stove enamel with perforated adjustable trays two pilot lamps on/off switch. Works on 220/230 V AC.

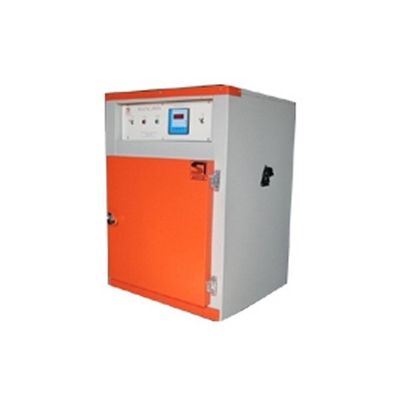

These Ovens are triple walled construction. In this system there is one path of circulating Hot Air in between the Inner Chamber and middle chamber. Forced air moved by the motorized blower is called PERFECT SYSTEM. It results in minimum temperature variation at any point in working space. Temperature controlled by Digital indicator-cum-controller with safety alarm from 50-250°C with a sensitivity of +/-1°C. Working chamber is made of S.S. Chamber and adjustable trays. Works on 220/230 V AC.

This machine is suitable for crushing stone less fruits and vegetables. The machine is mounted on a heavy duty mild steel stand equipped with motor and starter. The material is fed into the stainless steel hopper which feeds the product into the crushing drum, which consists of stationary and rotary beater which crushes the loaded products With 0.5HP motor (Cap.100kg/hr) and With 1.0HP motor (Cap. 500kg/hr)
.

Display 3½ digit LED Resolution 0.01 pH to 14 pH, 0 ± 2000 mv. Accuracy 0.01 pH & ± 1 mv, temp. compensation o to 100°C (manual) power supply 230 V 10% Hz supplied with combined electrode, buffer solutions Electrode stand, dust cove.

With Automatic Temperature Compensation Facility and ATC probe & pH Electrode. pH METER ACCESSORIES (OPTIONAL FEATURE). pH Electronic Spare.

For determining the scratch hardness of ready mixed paints and enamels, which is the minimum load required to produce a scratch showing the bare metal surface of the painted panel. The apparatus consists of a 1mm dia hemispherical stainless steel needle, fixed to a platform of a counter- balanced rod, which is assembled on a grooved platform. A rack moves through the groove, to which a painted panel can be clamped. An indicator lamp is provided to indicate the metal contact if the Needle penetrates the paint surface to make contact with the metal. Complete with 1 kg weight. Suitable for operation of 230 V, 50 Hz, single phase, AC supply. Needle Weight, 2 kg Optional Extras.
