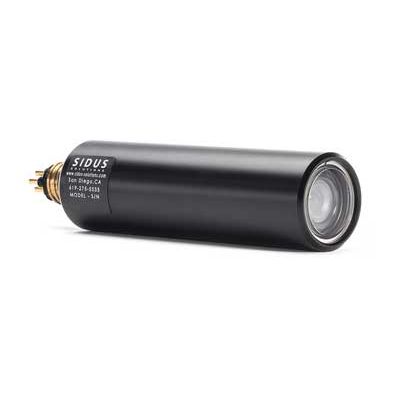

Sidus Solutions’ SS400 is a lightweight and compact camera designed to be noise reductive. At the heart of this tool is a 600 TVL color camera module employing a 1/3″ Sony Super HAD CCD imaging sensor. Image is presented in wide dynamic range. Video output is provided in NTSC or PAL formats, with a standard 3.6 mm lens. The durable acetal housing is corrosion resistant and will provide years of quality service. Subsea Camera, Color, Depth Rated 350 meters (1,000 feet) - higher ratings available

Ultra compact, subsea HD camera (63mm D x 178mm L) with 1-8x digital zoom, optically corrected viewport and wide dynamic range (WDR).

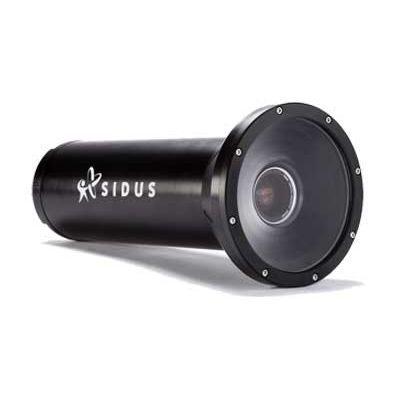

The SS490 4K UHD 20x zoom camera from Sidus Solutions offers 4K resolution ultra high-definition video image quality (3840 x 2160 QFHD at up to 29.97 fps) at four times the resolution of 1080 full HD images with excellent focus and color reproduction under challenging lighting conditions. Subsea Camera, 4K UHD 20X Zoom, Depth Rated 3000-7000m

This small, affordable, yet rugged self-lighted camera is designed to fit where traditional cameras cannot go.  A high-quality sapphire port and aluminum housing allow operation down to 3,000 meters for a wide range of subsea applications.  A miniature, highly flexible, integral cable helps reduce the overall size and weight of the product for tight spots such as small ROV pan & tilts with very low torque capability. The dimmable HBLED light can output up to 2500 lumens using our unique high count LED circuitry; to ensure uniform illumination over the entire field of view with minimal shadows. Subsea Camera, HDR IP,  Built-in HBLED - 2500 lumens, Depth Rated 3000m

The SS560 Ultra Mini Color Camera by SIDUS Solutions unites an image-rich, high-clarity color camera with an integrated, variable intensity, built-in, adjustable white HBLED.

Designed and built for the harshest industrial environments, the compact SS560 offers improved higher dynamic range, sensitivity, and video resolution, giving better contrast and perfect grey shade gradients in the image. Subsea Ultra Mini Camera with built-in adjustable HBLED, Depth Rated 6000m, HDR

SIDUS Solutions SS109APT underwater acoustic pan and tilt has been purposely designed and built to meet the demanding requirements for long-range imaging sonar applications. As part of the design effort, we took careful consideration of the key features an advanced imaging sonar system would demand. Subsea High Torgue Positioners, 14-foot pounds of torque, Depth Rated 6000m

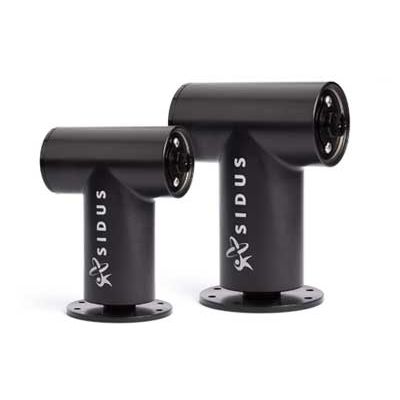

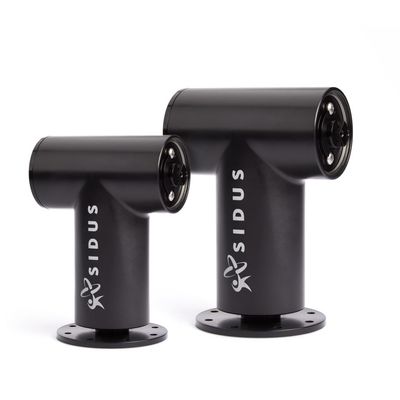

Sidus Solutions’ SS109HT underwater pan and tilt assembly is a high performance robotic positioning device that improves the versatility and reliability of subsea video inspection systems. Subsea High Torgue Positioners, 14-foot pounds of torque, Depth Rated 6000m

Sidus Solutions’ SS250 deepwater pan and tilt assembly is a powerful robotic positioning device. Within a small footprint, you are now able to position heavy loads with ease and high accuracy. Like the SS109, the SS250 gains its dependability and ease of maintenance through integration of reversible synchronous motors, extremely low backlash harmonic drives and precision ball bearings into a unique modular motor assembly.

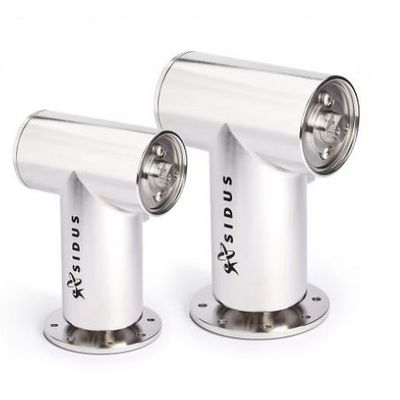

Sidus Solutions’ SS251 deepwater, heavy duty, stainless steel pan & tilt assembly is a powerful robotic positioning device offering impressive torque ratings up 65 ft-lbs. Rated with an operating depth of up to 10,000 ft / 3000 m with internal compensation and up to 20,000 ft / 6000 m with external compensation and a corrosion resistant 316 stainless steel housing, this heavy duty pan & tilt assembly delivers reliability and robust design.
