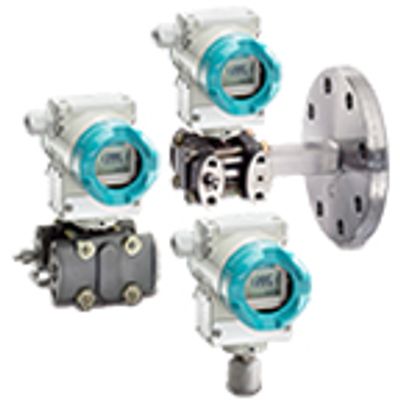

The SITRANS P DS III series includes digital pressure transmitters for measuring gauge pressure, absolute pressure, differential pressure, flow and level. Even the standard devices offer comprehensive diagnostics and simulation functions with high reliability. The suitability for use in SIL2 circuits has been certified by external test institutes. With Profibus transmitters, the new PROFISAFE technology guarantees uniform safety from the control system down to the transmitter.

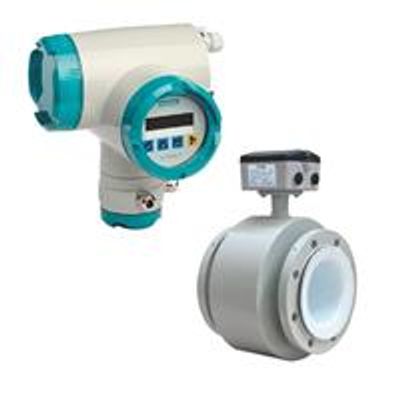

SITRANS F M TRANSMAG 2 is a pulsed alternating field magnetic flow meter where the magnetic field strength is much higher than conventional DC pulsed magnetic flowmeters.

Pointek CLS500 is an inverse frequency shift capacitance level switch for detecting interfaces, solids, liquids, toxic and aggressive chemicals in critical conditions of high temperature and pressure

The SITRANS P500 has been developed to meet the highest expectations for measuring accuracy, ruggedness, and user-friendliness, and it merges seamlessly into the SITRANS P family. With the SITRANS P500, you can expect pressure measurement at the highest level. It guarantees an accuracy of ≤ 0.03 % as well as outstanding values for the influence of static pressure and temperature on the measured result. In this way, it guarantees a total performance of ≤ 0.14 % up to a turndown of 10:1. Since this feature means that only one measuring cell can be used for different measuring ranges, inventory costs can be significantly reduced without the need for losses in the quality of the measured result. The high long-term stability of the sensor also reduces maintenance costs thanks to extended calibration intervals, and ensures that you can always rely on the measured results in the long term.

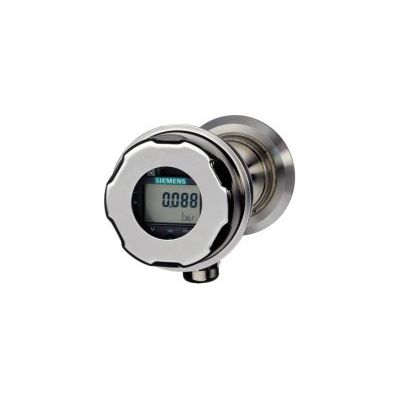

The SITRANS P 300 offers the measuring precision and ruggedness already known from the SITRANS P DSIII. Its stainless steel housing with laser-printed nameplate, together with a wide range of hygienic process connections, mean that it is highly suitable for use in the food & beverages industry as well as for pharmaceutical processes. With a maximum deviation in measurement of 0.075% and the proven operating philosophy, it fits seamlessly into the SITRANS P family.

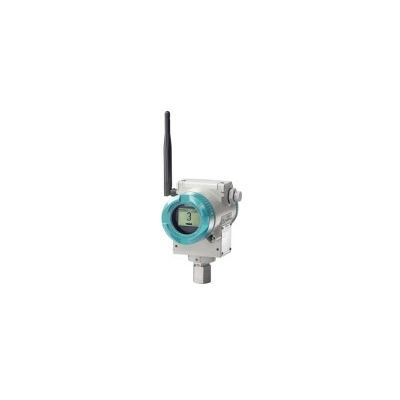

The SITRANS P280 is a WirelessHART pressure transmitter that provides all measured process values as well as diagnostic information, parameters and functions via radio. The device is powered by an internal battery and designed for ultralow power consumption. The compact and rugged design makes it specially suitable for direct mounting on tanks and pipes in remote parts of plants, and on moving or rotating equipment for process monitoring or asset management applications.

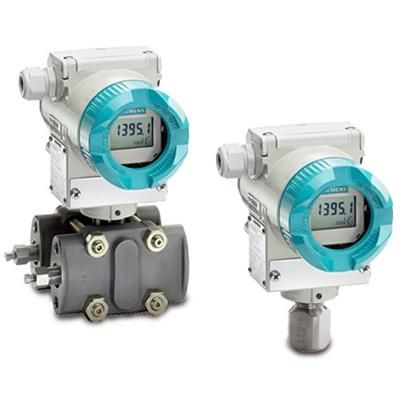

The SITRANS P310 is a digital pressure transmitter with integrated HART diagnostic functions and a high operating comfort. Representing a basic device for easy measurements with low accuracy requirements compared to SITRANS P DS III the P310 complements the already existing P DS III. The different design variants for measuring gauge and differential pressure are of course available. Certifications like e.g. ATEX, NEPSI, FM, CSA and SIL guarantee the application in flameproof areas as well as within processes with high safety requirements.

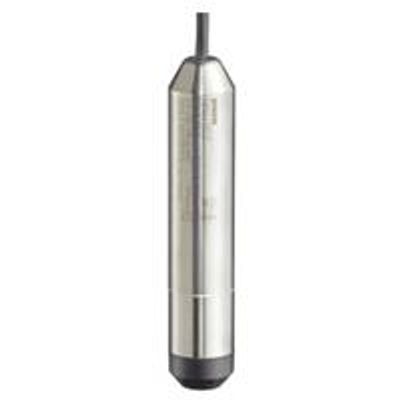

The SITRANS LH100 series pressure transmitter converts the level-proportional hydrostatic pressure into a standardized signal 4 to 20 mA. The transmitter consists of a stainless steel housing (Ø 23,4 mm) with mechanical protection IP 68, a piezo-resistive sensor with ceramic diaphragm. The transmitter cable has a diameter of Ø 6 mm and also contains a vent pipe for connection to the atmosphere.

The SITRANS F M  MAG 5100 W  with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications such as ground water, drinking water, cooling water, waste water, sewage or sludge applications.

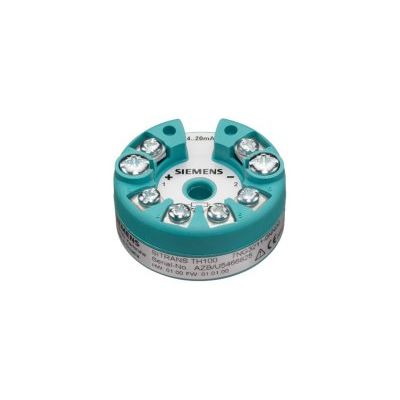

SITRANS TH100 is rigid designed for economic use. For example with saving of the galvanic insulation, which is not need for PT100. Therefore the TH100 offers economic plant operation and reliable measurements. It is an ideal substitute for over aged analogue PT100 transmitters. Setup is quick and easy with the transmitter-modem and SIPROM T. This configuration tool can be downloaded for free.
