SIGHT-PIPE - Depth Gages for Visual Inspection
SIGHT-PIPE Depth Gages are specialized tools designed for accurately measuring longitudinal depth dimensions within machined bores or cavities. These gages are equipped with a Gage Dot pattern that corresponds to the specific application tolerance, offering a visual method for checking if a characteristic dimension is within or outside tolerance limits. The system employs a magnified projection of the Gage Dots and the inspected characteristic edge on the enlarged head, providing clarity in assessment. A characteristic is considered within tolerance if it appears tangent to or situated between the Gage Dots, while it is regarded as out of tolerance if passing through them. Designed with various styles, from Style A for tolerances as tight as +/- 0.010 inches to high-accuracy versions accommodating tolerances as small as +/- 0.001 inches. These gages come with customizable features, including lighting and magnification solutions, to suit diverse inspection needs. Custom gages are available based on specific requirements by analyzing provided sample parts.
SIGHT-PIPE - Boreview Inspection Gage
The Boreview Inspection Gage by SIGHT-PIPE provides an innovative solution for conducting comprehensive internal inspections. Employing advanced borescope technology, these optical viewers are designed to simplify the process of inspecting hard-to-reach areas in various industrial applications. The company offers custom bore inspection gages tailored to meet specific inspection requirements. Users are invited to submit sample parts for detailed quotations on bespoke gage designs. This ensures each inspection tool is precision-engineered to deliver reliable results in demanding environments, enhancing quality control and maintenance procedures across sectors.
SIGHT-PIPE - Porosity Gages for Inspection and Measurement

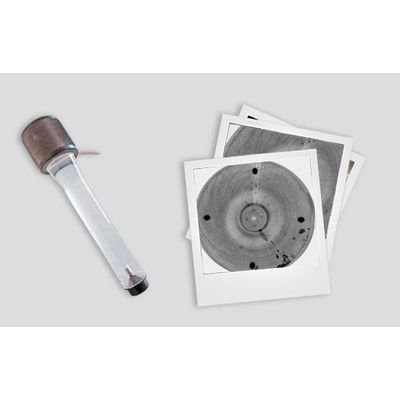

The SIGHT-PIPE Porosity Gages are designed for efficient inspection and measurement of porosity in machined bores. Leveraging the advanced optical properties of the 360 View™ Series, these gages provide a comprehensive 360-degree view of bore sidewalls at right angles to the axis. The device facilitates easy detection and inspection of porosity in various industrial applications. Users can assess the size and distribution of porous characteristics using custom reticle marks. Optional features include adjustable fiber optic illumination and additional circular reticle patterns for detailed assessment within predefined tolerance limits. This innovative solution allows for accurate porosity measurement, ensuring that parts meet specified quality standards. Custom-built gages can be designed to cater to unique inspection requirements, providing a robust tool for quality assurance in manufacturing processes.Sight-Pipe
SIGHT-PIPE - Visual Inspection Borescopes
SIGHT-PIPE offers a range of borescopes crafted from high-grade optical materials designed for inspecting intricate features within machined components. The Regular Series SIGHT-PIPES are specifically engineered to provide visual access to confined sections of bores or cavities, crucial for assessing detailed characteristics. They operate by projecting the image of the bore's internal sidewall, delivering a perspective akin to a sectional view of the piece. Available in standard diameters ranging from 0.125 to 1.000 inches, with customized sizes available, they are adaptable to various inspection needs. These devices can function independently or with accessory attachments such as stop collars for depth positioning and light input adapters for optimal illumination. The 1310 Portable Illuminator further enhances inspection with its battery-operated design. SIGHT-PIPES are a flexible solution for industries requiring precise examination of internal component features, with repair and customization options ensuring enduring functionality.
