SignalFire Telemetry products

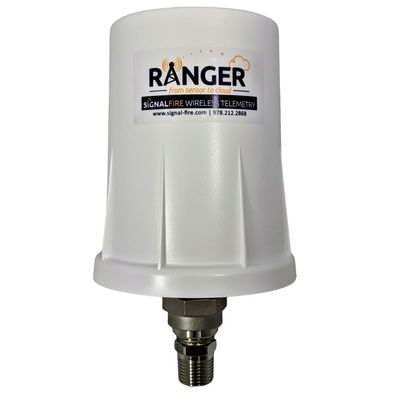

The SignalFire Pressure RANGER is an IoT (internet of things) cellular pressure transmitter using the latest LTE CAT M1 technology for sensors and fully integrated with SignalFire’s cloud monitoring and alarming services. The Pressure RANGER includes an integrated pressure sensor and features a built-in GPS receiver that reports location of devices to the cloud, providing a map of all connected assets. The unit is powered by a 4 D Cell Lithium battery pack that is field replaceable. The Pressure RANGER comes complete with the mobile device ready SignalFire cloud interface to monitor, trend and get alarms either by text or email message. In addition, the cloud platform provides for remote configuration and troubleshooting of the Pressure RANGER.

SignalFire’s RANGER wireless telemetry system is a cost-effective, reliable, easy way to deliver your sensor data where you need it. Battery, solar, or DC powered RANGER transmitters quickly attach to your sensors, providing power and connecting your entire network of sensors to a simple cloud interface through the LTE-M cellular network.

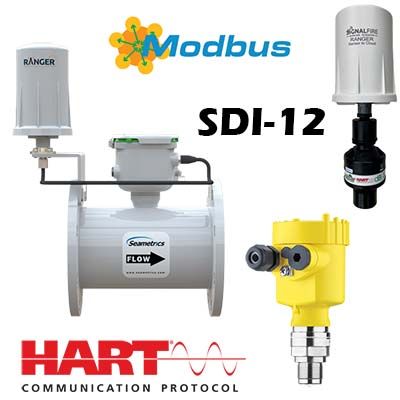

Both the SignalFire 900MHz nodes and the SignalFire Ranger support many industrial sensor interfaces including analog (1-5V, 4-20mA), HART, Modbus, SDI-12 and discrete IO supporting a wide variety of sensors. One of the strengths of the SignalFire system is that it allows the integration of all kinds of sensors and actuators into a single network. The customer can choose the best sensor for each application and the SignalFire wireless system can tie it all together or bring the sensor readings directly to the cloud.

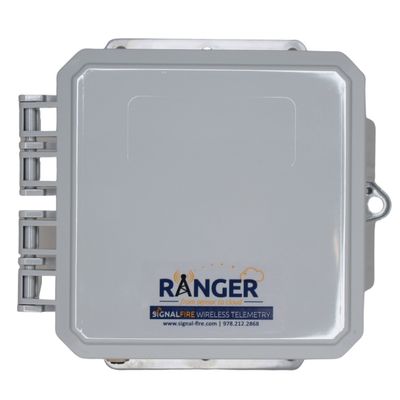

The RANGER Wall Mount supports all of the same options and features of the standard RANGER but housed in an IP68 rated enclosure. The Wall Mount features 2 cord grips for cable entry along with a third PG9 plug that can be replaced with a cord grip for additional I/O. The Wall Mount is perfect for applications requiring an IP68 rating or for those where this form factor provides more convenient mounting options.

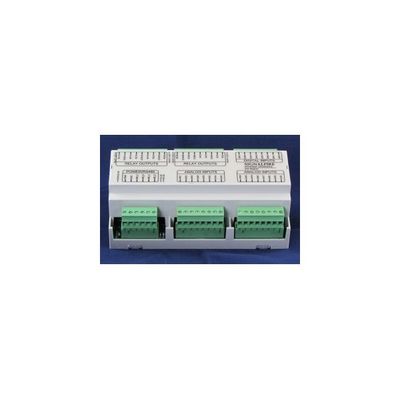

The Multi-I/O Stick System is designed to connect to a Modbus Stick and provide sophisticated wireless I/O control and monitoring at remote locations.  Ideal for Separator, Heater Treater, Plunger Lift and Other Applications.

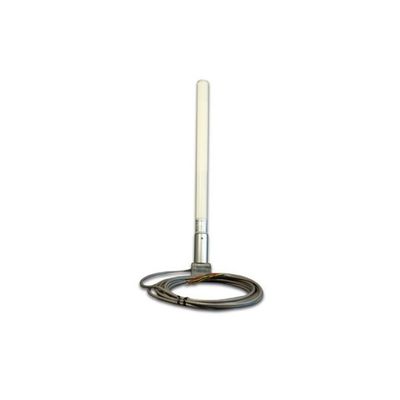

This rugged, integrated device combines a high-gain antenna with gateway electronics in a single, easily mounted package. Gateway Stick combats a common problem with RF networks, which are increasingly used to monitor and control remote devices over tens or hundreds of square miles. Gateways traditionally have different location requirements for their electronics module and antenna, making it necessary to place them separately. Gateway Stick is a revolutionary solution that combines them in one easy-to-install component.

Powers sensor and radio for years with an internal battery. Class 1 Division 1 Intrinsically safe system. Optional Class 1 Division 1 solar module with integrated charger, battery panel, and mounting bracket. Costs less than 60ft of installed conduit. Rugged design for demanding outdoor environments. Up to 1/2 mile range. Sensor independent. 1/2” NPT conduit interface. Automatically configures as a star or mesh network. Simple to install and Maintain.

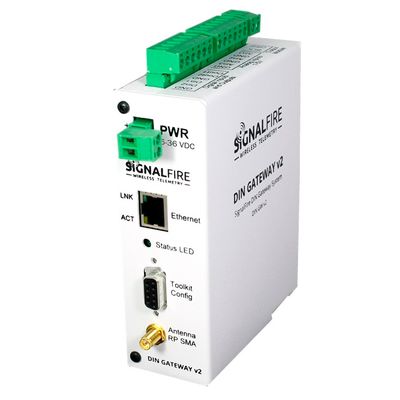

The new DIN Gateway V2 is a wireless 900 MHz Gateway with integrated I/O for easy connectivity to wireless and wired sensors, integrated Ethernet and built-in automation.

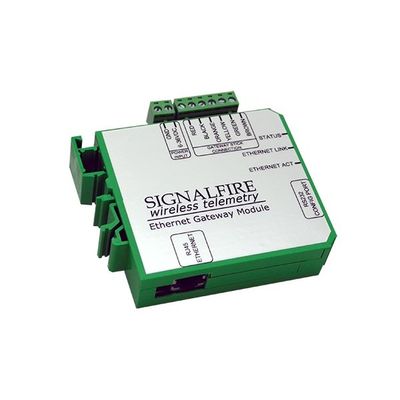

The Ethernet Interface Module permits direct connection of the SignalFire Wireless Mesh Network to an Ethernet Network. The Ethernet Interface Module has 2 addressable ports and is designed to connect to a standard SignalFire Gateway Stick with little or no configuration necessary.

In environments like oil fields, decisions to start and stop actions often need to be initiated remotely from where the action happens. For instance, if a storage-tank battery fills up, oil flowing to the battery must stop to prevent an overflow, but the controlling device making that “decision” (PLC or SignalFire Gateway) may be miles away.
