Signature Control Systems Incac products

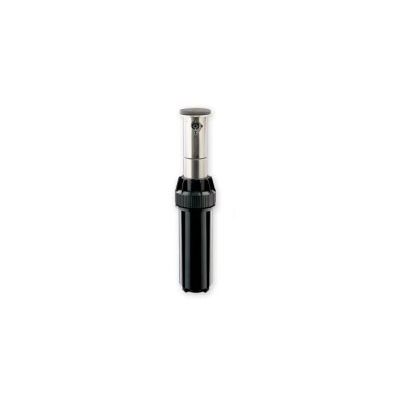

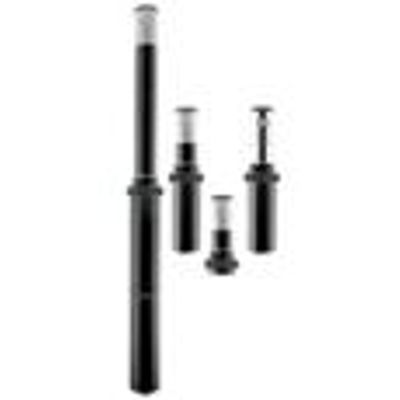

High impact corrosion resistant construction with stainless steel metal components. Dome cap design will ensure sand and debris flush away from the riser to provide for longer life. Double lipped wiper seal will help keep debris away from the riser. 1⁄2" (12,7 mm) bottom inlet is standard on all models. All models can be upgraded with an anti-drain valve (ADV) and the new iStop™. Standard male thread on the riser.

Wide range of matched precipitation fixed spray. Color coded bodies for easy identification. Multi-arc nozzles from 8 ft – 17 ft (2.4 m – 5.2 m) radius that can be adjusted from 0° - 360°. Fixed spray nozzles from 8 ft – 15 ft (2.4 m – 4.6 m) radius in all the various patterns. Wide variety of special pattern nozzles.

Multi-zone, valve box mounted, battery operated controller. Available in 1, 2, 4 and 6 zone models. Three Programs. Operates on two AA batteries for several years depending on usage. Waterproof design allows this unit to be submerged up to 6 ft (1,8 m) of water. Installs directly on all Signature Turf valves and can be fitted to many other valves through the use of adapters. Can have up to 250 ft (76 m) of 18 AWG direct burial wire between the 8020 series controller and the DC solenoid. All models accommodate normally closed rain, freeze or event sensors.

The 5500 Pro series rotors are constructed of high impact plastic and all internal metal parts are made of stainless steel. 3⁄4` (2 cm) inlet. No tools are required to adjust the arc from 40° – 360° by using the easy to use Click-Set disc. This series comes with 4 interchangeable nozzles with a discharge range between 0.5 – 2.5 gpm (1,9 – 9,5 l/min). All models come with a rubber protective cap and an optional vandal resistant retaining screw. The built in slip clutch protects the gears and motor from damage when adjusting for a part circle. If the rotor is manually moved out of position it will automatically reset to the defined pattern. NIR2 (Nozzle Insertion / Radius Reduction) eliminates the need to remove the cap while fine tuning the radius and inserting the nozzle.

The 7500 Pro Series 1` (25,4 mm) inlet series rotors are constructed of High impact plastic and all internal metal parts are made of stainless steel. The arc will adjust from 40° – 360° by using the easy to use Click-Set disc. This series comes with 6 interchangeable nozzles with a discharge range between 9.4 – 27.5 gpm (35, 6 – 104,1 l/min). All models come with a rubber protective cap. The built in slip clutch protects the gears and motor from damage when adjusting for a part circle. If the rotor is manually moved out of position it will automatically reset to the defined pattern. NIR2 (Nozzle Insertion / Radius Reduction) eliminates the need to remove the cap while fine tuning the radius and inserting the nozzle. 7500 comes in two styles: stainless version with anti-drain valve (ADV) and the high speed stainless version with ADV.

The Aurora-RT Satellite Controller operates exclusively in a central controlled environment. Immediately connects to Signature`s Share™ platform of products, out of the box. No complex keypad or display; simple operation via Smart Phones or web based iOS applications. Ability to control via the internet from anywhere without requiring expensive local communications infrastructure. Ease of installation makes the Aurora-RT™ the choice of Contractors. Control standard solenoids via 24VAC wiring or 2-wire decoder configurations.
