SIKA Dr. Siebert & Kuhn GmbH & Co. KG products

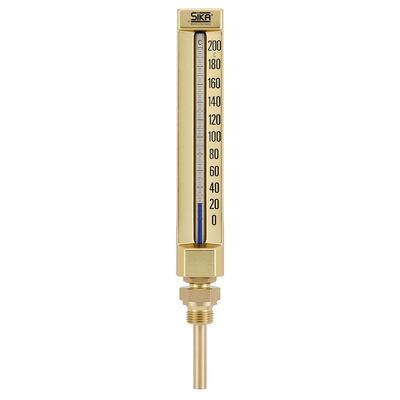

The original SIKA thermometer with high-quality V-shaped aluminium casing, smoothly polished on all sides, anodised in golden colour. The numbers of the display range are printed in black on the right-hand side of the scale under the anodised layer. The print is thus permanently and indissolubly fixed in the anodised layer. Our thermometer is available as standard in three nominal sizes, each in straight or angled 90° version and many display ranges from -30...50 °C to 0...250 °C. In addition, immersion tubes optionally made of brass, steel, stainless steel, special brass or copper nickel alloy and a variety of selectable connection types and threads. Our standard range of industrial thermometers contains a total of more than 17,000 different variants.

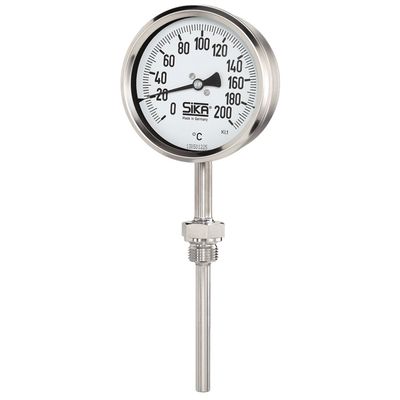

Type 341 to 347 dial thermometers are local thermometers with a crimped-on ring cases. Cases, immersion tubes and connections are made of stainless steel. All devices comply with EN 13190 and meet the class 1 requirements. The devices are available in the nominal sizes from 63 to 250 mm. Through the crimped cases, the thermometers are permanently sealed (IP65) and they are ideal for case fillings with silicone oil (optional). We recommend this version with case filling for applications that involve vibrations. SIKA precision dial thermometers are the tried and tested solution for in-situ, local temperature measurement of fluids and gases in the industrial sector. They are ideal for installation in pipelines, containers, machines and plants, have a long service life and do not require any external power.

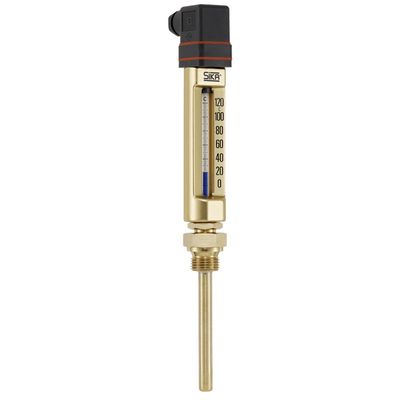

The SIKA KombiTemp® consists of a SIKA industrial glass thermometer and an electrical temperature sensor according to customer requirements in the same casing and immersion tube of the industrial thermometer.

The digital thermometers of the SolarTemp product series work with a discrete-time measuring method. The cycle time of the measurement starts from 3 sec, so that the operator can read the current measured value in passing. The SolarTemp has an easy-to-read LCD-based display. The instruments of the SolarTemp series have a robust mechanical construction and are designed for industrial use as well as for use under difficult environmental conditions. The IP65 protection class (front side) meets these requirements. The immunity to electromagnetic interference complies with the requirements of the applicable industry standards.

The application areas for temperature sensors are very individual and the conditions are often harsh.

The room condition monitor RCM880 in combination with the SIKA multisensor E03 simultaneously monitors humidity, temperature and pressure at one measuring point. The robust measuring system is specially designed for use under extreme environmental conditions. The digital 3-channel standard signal transmitter enables safe signal transmission, for example to engine control systems, and easy integration into your system. The permanent monitoring of the operating condition guarantees safe, reliable operation, enables compliance with emission standards and is used to maximise efficiency as well as performance evaluation of marine engines.

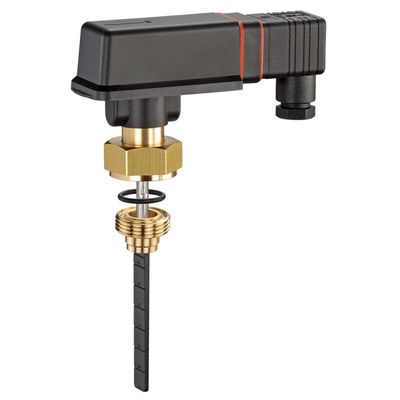

SIKA flow switches are used for monitoring volume flows. Depending on the requirements, they are available for different nominal widths and switching point ranges. Thanks to the "modular principle", the product variants and options can be adapted to a wide range of applications. The wide temperature and pressure ranges as well as the choice of materials or the various connection options offer a very high degree of flexibility.

The SIKA flow switches are used for monitoring volume flows. Depending on the requirements, they are available for different nominal widths and switching point ranges. Thanks to the "modular principle", the product variants and options can be adapted to a wide range of applications. The wide temperature and pressure ranges as well as the choice of materials or the various connection options offer a very high degree of flexibility.

SIKA quality pressure gauges in industrial version with 100, 160 or 250 mm stainless steel casing are suitable for pressure measurement of gaseous and liquid media, but not for highly viscous or crystallising media. DIN display ranges available from -1...0 bar up to 0...1,600 bar (up to...1,000 bar, brass connection; up to...1,600 bar with stainless steel connection). We manufacture special ranges on request. The stainless steel casing is available either as a bayonet ring case (type MRE) or as a cramped-on ring case (type MRE-G).

Digital pressure gauges of the TANTUM series are particularly suitable for both stationary and mobile measurement and display of pressures. The use as a pressure reference allows easy checking, setting and calibration of other pressure measuring devices directly on site.
