Silesfor DP S.r.l. products

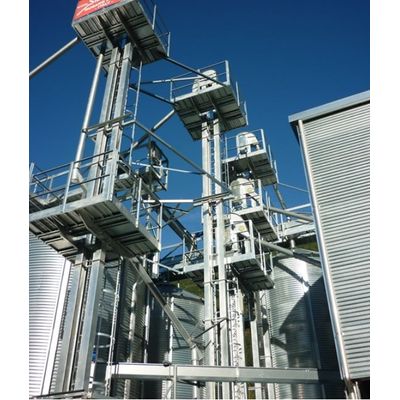

The bucket elevators are used for vertical transport of cereals,grain, flour products. The entire series EL is realized with dip galvanizing steel,that made this series suitable for outdoor uses. Also legs can be supplied on dip galvavanized steel or SENDZIMIR galvanizartion. Buckets are made of iron or PVC with high efficiency form while belts are made of rubber, with mediately anti-oil and anti-static coating. Drive is made, on standard execution, by motor, anti-return reduction gear, belt drive; if required drive can be direct assembled on shaft.

The TC chain conveyors are used for carrying cereals, granular and flour products on horizontal or slightly inclined tracks. Designed for outdoor use they are made by galvanised steel sheet (SENDZIMIR Z300 process) on request TC serie can be supplied with dip galvavanized steel. The chain drive with steel folded meshes is made from very strong steel complete with PEHD scrapers for cleaning the bottom of the case polyzene chain guide with high molecular density. Drive is made, on standard execution, by motor, gearbox, chain drive; if required drive can be direct assembled on shaft.

The FF serie pit filters are used to extract and filter the dust produced during the receiving of cereal. They are installed along the biggest side of the receiving pit in order to not limit the use of the pit. The modular construction system, enables the making up filters, according to plant requirements. Each module is indipendent , provided with a ventilator with a silencer fitted on,the the air depression attracts the dusty air which is retained by the filtering elements. At timed intervals, sleeves are back-washed by a compressed air jet wich causes the fall of dusts.
