Silver Automation Instruments Ltd products

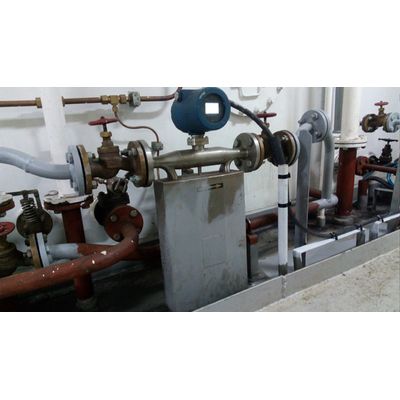

Silver - Coriolis Mass Flow Meter
Key Benefits: True Mass Flow Measurement – Unaffected by temperature, pressure, density, or viscosity changes Multi-Parameter Output – Simultaneously measures mass flow, density, and temperature High Accuracy – Up to ±0.1% for demanding applications like custody transfer No Regular Calibration – Long-term stability with minimal maintenance Corrosion-Resistant Options – Hastelloy, titanium, and stainless steel materials Industries Served: Oil & Gas – Custody transfer, chemical injection Food & Beverage – Batch control, ingredient dosing Pharmaceuticals – Precise recipe formulation Chemicals – Reactive and abrasive fluid handling Why Choose Us? Wide range of sizes (DN1 to DN200) Explosion-proof and sanitary configurations Customizable outputs: 4-20mA, pulse, Modbus, PROFIBUS, HART Global support and technical service
Silver - Magnetic flow meter
Measurement Principle • Faraday's Law of electromagnetic induction • Measures conductive liquids (>5 μS/cm) Key Features • Accuracy: ±0.5% of reading (±0.2% optional) • Zero moving parts maintenance-free design • Bi-directional flow measurement • IP68 submersible option available Applications • Water and wastewater treatment • Chemical and process industries • Pulp and paper production • Food and beverage processing Technical Parameters • Sizes: DN15 to DN3000 • Pressure Rating: PN10-PN40 • Temperature Range: -20°C to +180°C • Outputs: 4-20mA, pulse, RS485 (Modbus/HART) • Power: 24VDC/85-265VAC • Electrode Materials: 316L, HC, HB, Ti, Ta • Liner Materials: PTFE, PU, rubber, ceramic Certifications • CE, RoHS compliant • Explosion-proof versions (Ex d, Ex i)

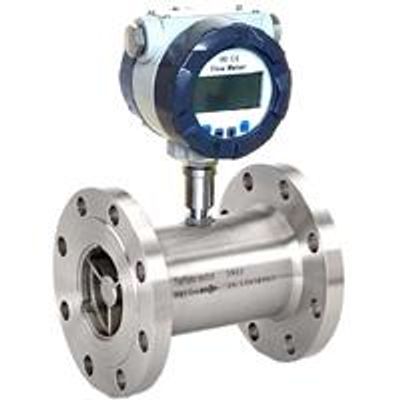

Silver - Liquid turbine flow meter
Measurement Principle • Mechanical rotor measurement • Proportional pulse output to flow rate Key Features • Accuracy: ±0.5% of reading (±0.2% optional) • Wide turndown ratio: 10:1 to 25:1 • RS485 Modbus communication • Compact and lightweight design Applications • Fuel and oil measurement • Chemical processing • Water treatment systems • Industrial lubrication monitoring Technical Parameters • Sizes: DN4 to DN200 • Pressure Rating: PN16 to PN100 • Temperature Range: -20°C to +120°C • Outputs: RS485 Modbus, 4-20mA, pulse • Materials: 304/316 stainless steel • Power Supply: 24VDC, 12VDC, or battery Performance Specifications • Repeatability: ±0.1% • Max Pressure: 6.3 MPa standard (higher available) • Fluid Viscosity: <10 cSt optimalFlow Meter - Turbine Flow Meter

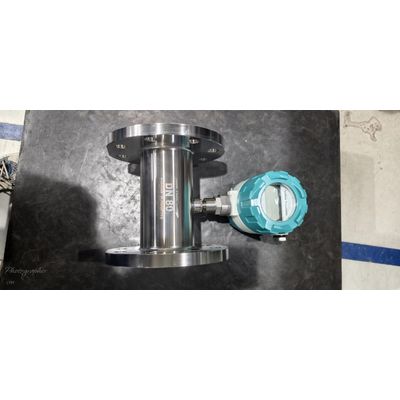

Silver - Battery Operated Liquid Turbine Flow Meter
SLW-B series battery operated liquid turbine flow meter is intended to clean, low viscosity and low corrosively liquid measurement where main power supply is impossible. Turbine type flow sensor can measure diesel fuel, DI water, tap water, drinking water, ethanol.etc.
Flow Meter - Magnetic Flow Meter

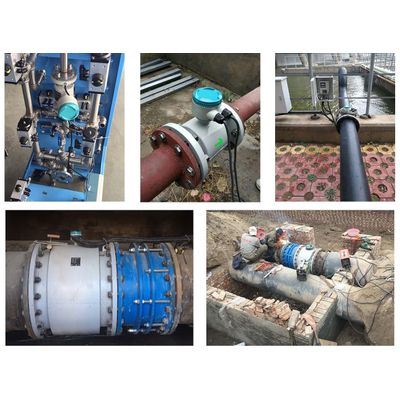

Silver - Electromagnetic Flow Meter
Battery powered electromagnetic flow meter has a lithium battery which can work for 36-72 months, it has built-in GPRS/GSM/CDMA module which can send flow measurement value to cloud server to realize wireless and remote water management, GPRS magnetic water flow meter has large applications in irrigation and abstraction ,water treatment, municipal works, water industry and so on.
Paperless Recorders & Controllers
Silver - Color Paperless Recorder
1~4 channels universal input. SD card option. Color LCD display, 3.5 inches. RS 485, current outputs, alarm outputs options. Low cost paperless graphic recorder. Receive signal types: current ,voltage,frequency,MV,Thermocouple, RTD .,etc. In stock paperless graphical recorder,fast delivery time.
Pressure Measurement

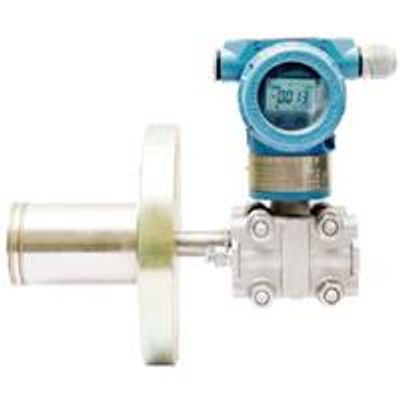

Silver - Level Transmitter
SHLT (smart) flange type level transmitter can carry on accurate measurement of level and density for all kinds of containers. Flush flange and extended flange available, diaphragm seal direct contacts with medium without impulse line.

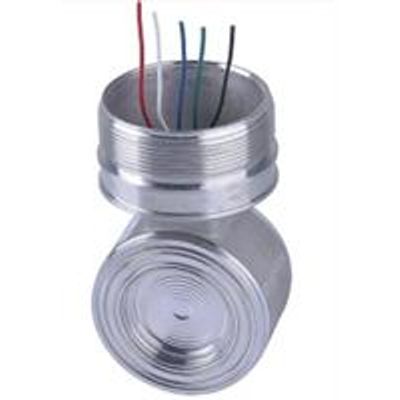

Silver - Capacitive Pressure Sensor
Capacitive pressure sensor or differential pressure sensor; it is all welded construction with stainless steel material. This kind of pressure sensor is to sense the pressure or differential pressure via the oil filling in the sensor .It can sensor minimum 0-0.16~1.6Kpa differential pressure or 0-16~40Mpa gauge pressure with high accuracy.The sealed chamber integrated temperature diode, this diode supplied real time temperature parameters for the capacitance pressure transducer, and it provides temperature compensation for the capacitance pressure transmitters.
Temperature Measurement - Temperature Sensor

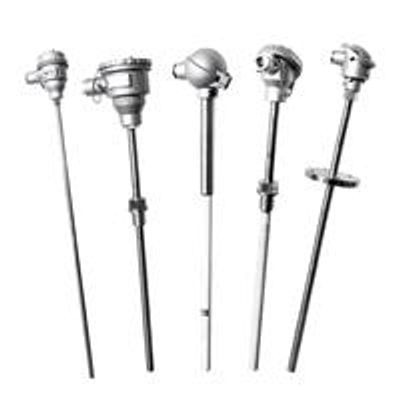

Silver - Thermocouple Temperature Sensor
Thermocouple with lead wireThermocouple with connection boxThermocouple with connection head/nippleThermocouple with connection head.
Level Measurement - 6.8GHz Pulse Radar Level Instrument
Silver - Radar Level Transmitter
Application: Process condition is simple, corrosive liquids, slurries and solids level measurement. For example: Water tank Acid and alkali tanks, slurry tanks, solid granules small petrol tanks level measurement.
