Simatek A/S products

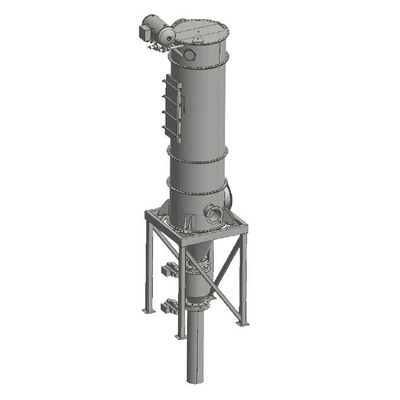

The SimPact 4T-R filter has a compact, cylindrical design and an efficient pulse-jet cleaning system. The filter housing and inlet zone are strategically placed in the various construction forms. This ensures a smooth flow of both coarse and fine particles into the filter.

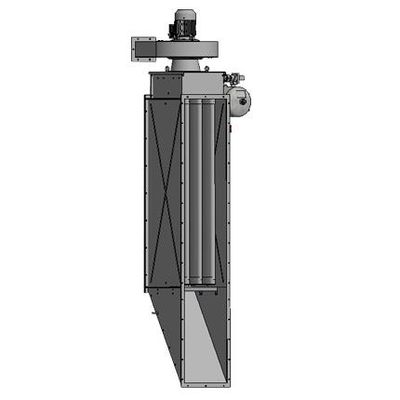

The UniClean is a simple filter designed for processes with high dust load and where on-line maintenance is not required. It has bags length up to normally 4,5 m.

Based on the latest technology the FabriClean is a customisable fabric filter with advantageous benefits for medium to high gas flow applications and with bag length up to 12 m. It is a reliable filter, that offers significantly longer bag life and cost-effective operation. Reduced equipment weight and footprint are also integral to the FabriClean’s design, improving the baghouse’s emission reduction capabilities and minimising its construction time and shipping costs. This all translates to lower CAPEX expenses for your business.

Baghouse Controllers – Key to Increasing Dust Collection Efficiency.  A simple upgrade to a new clean-on-demand dust collector controller from an older, less-efficient baghouse timer board usually results in more cost savings than larger investments such as new bags or system modification

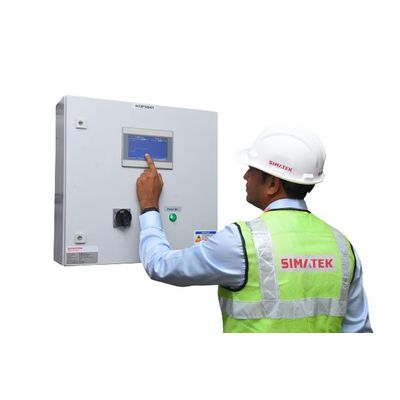

SimControl Advance (SCA) is the next generation fabric filter controller automatically adjusting differential pressure according to process and bag conditions, reducing fan energy and compressed air consumption, extending the life of your filter bags and minimizing downtime. It continuously analyses specific baghouse conditions, looking at the rate of change of differential pressure across the bag filter system, which is driven by the dust load from the plant. It then adjusts fabric filter cleaning parameters in response to baghouse conditions to ensure that you are only ever doing the minimal required cleaning. This smarter way of cleaning reduces costly compressed air usage and extends filter bag life. And it’s an easy add-on to your existing SimControl Advance® or our other fabric filter controllers.

Fabric filter technology acquired from FLSmidth Airtech. Mining, crushing, grinding, transportation and storage of raw materials creates fugitive dust which is a big problem in most cement plants and lime calcination lines. Simatek holds several NDC filters designed to capture these fugitive dust particles, so they can be recycled.

The SimSpot (PSR) bag filter with pressure shock resistance of 0.7 bar -  is a practical alternative to conventional central aspiration. Its simple, functional design allows it to be easily installed on conveyors and bucket elevators.

A pneumatic conveying system transfers products like grains, powders and other dry material through a duct. This is done using either a vacuum system or a differential pressure system depending on the product dimensions, the distance and the pressure needed to move them. At Simatek, we offer two distinct types of pneumatic conveying systems:

An efficient aspiration system plays an important role when handling dusty bulk loads. The smart solution will prevent dusty from escaping into the surroundings through leaks – by establishing and maintaining the required differential pressure within the system.

Simatek central vacuum cleaning system ensures a well dimensioned aspiration system that performs efficiently. It helps create a safe, clean working environment with optimal work conditions. We provide different types of ducts – mild steel or stainless steel – that are assembled with easy-to-detach pipes.
