Simmons Manufacturing Company products
Well Seal
Simmons - Single Drop Pipe Eye Bolt Well Seal
Class 25 Non-toxic lead free painted cast iron. Zinc plated steel bolts. Single Hole. 3/4″ molded rubber, 50 durometer.

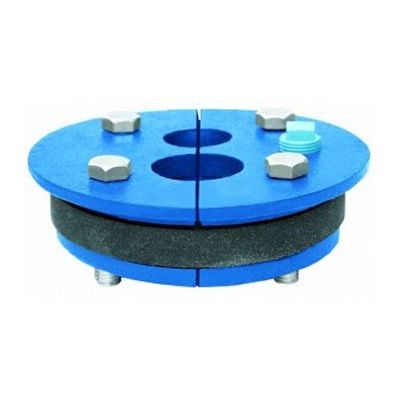

Simmons - Double Drop Pipe Split Top Well Seal
Class 25 Non-toxic lead free painted cast iron.Zinc plated steel bolts.Double Hole. 3/4″ molded rubber, 50 durometer.
Check Valves

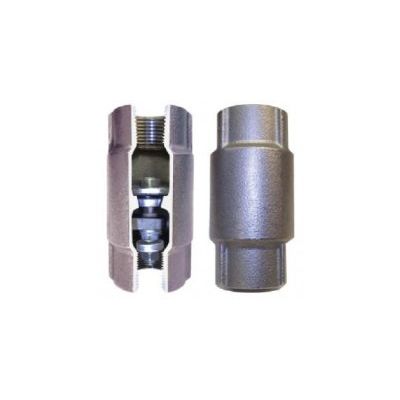

Simmons - Stainless Steel Certified Lead Free Check Valve
304 Stainless Steel cast body. 304 Stainless Steel cast poppet. Female Threads. Certified lead free to NSF/ANSI 372 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65. All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut. All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.

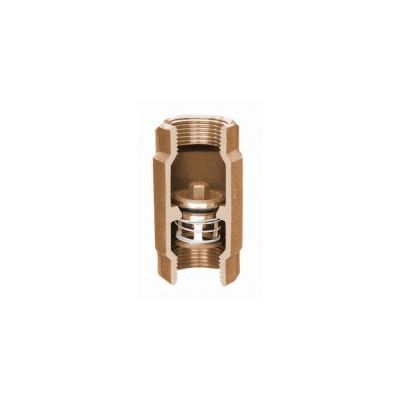

Simmons - Stemless Check Valve
Silicon bronze cast body. Silicon bronze cast poppet. Female Threads. Certified lead free to NSF/ANSI 372 and NSF/ANSI 61 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65. All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut. All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.
Tank Tees & Crosses

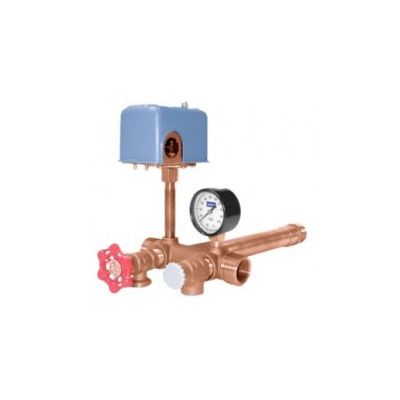

Simmons - Tank Packages
Silicon bronze cross contains less than .05% (1/20 of 1%) lead.
Simmons - Tank Cross for Drinking Water Systems
ertified lead free to NSF/ANSI 372 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.
Foot Valve
Simmons - Dual Thread Foot Valve for Drinking Water Systems
The 400 SB Series Foot Valve with Dual Threads from Simmons Manufacturing Company is engineered with a silicon bronze cast body and poppet, ensuring durability and reliability in various applications. It features a stainless steel perforated strainer that provides effective filtration. Certified as lead-free by Truesdail Laboratories under NSF/ANSI 372 and NSF/ANSI 61 standards, it meets all federal and state safe drinking water requirements, including California Proposition 65. This foot valve includes a Buna-N O-ring, stainless steel spring, and stainless steel locknut, and is capable of withstanding a working pressure of 400 psi. Designed and manufactured in the USA, it assures compliance with stringent safety standards while delivering robust performance in water systems.
Simmons - Foot Valve with Dual Threads for Plumbing System
The Foot Valve - Dual Threads is a reliable component designed by Simmons Manufacturing Company, primarily used in plumbing and water systems for preventing backflow. Constructed with a silicon bronze cast body and poppet, it includes a stainless steel perforated strainer for effective operations. The valve features dual purpose threads and is certified lead-free by Truesdail Laboratories according to NSF/ANSI 372 and NSF/ANSI 61 standards, ensuring it meets all federal and state safe drinking water requirements, including California Proposition 65. Each valve is equipped with a Buna-N O-Ring, stainless steel spring, and stainless steel locknut. It operates at a working pressure of 400 psi, suitable for high-demand applications. This product is made in the USA, reflecting stringent manufacturing standards and high-quality materials.Hydrants
Simmons - Landscape Hydrant
3/4” NPT Female Inlet. 3/4” Male Hose Thread Outlet. Series 5800 Landscape Hydrant has floral styling and green color, sure to be the preferred choice of homeowners who take extra pride in their lawns and gardens. All components, other than head casting and handle, are identical to 800 Series.Green polyester powder coated finish. Max Pressure 120 PSI. Individually boxed with sales features and installation instructions printed on box.

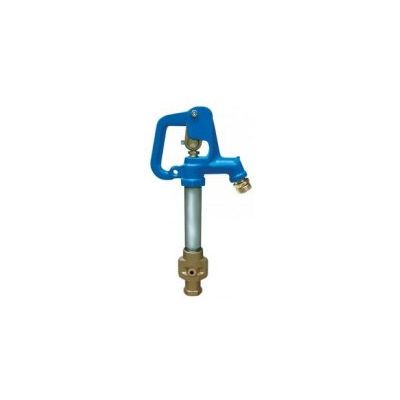

Simmons - Frost-Proof Yard Hydrant
3/4” NPT Female Inlet. 3/4” Male Hose Thread Outlet. All components identical to 800LF Series except head casting and handle are smaller. Does not have flow lock wheel. Polyester Powder Coat finish.
