SimpleChips Technology products

The CL1 and CL2 product family are temperature-compensated unipolar current regulators with versions available from 5mA to 30mA. They are designed to be used with voltages from 6V to 250V DC and the temperature coefficient is optimized from –40C to 125C. SimpleChips’ unipolar current regulator can source or sink constant current. For high voltage applications a heat sink can be connected to the Ground pin (Source), or the device can be mounted on a larger copper plate used as a heat sink. These devices can be paralleled for larger current drives or connected back-to-back for AC current limiting function.

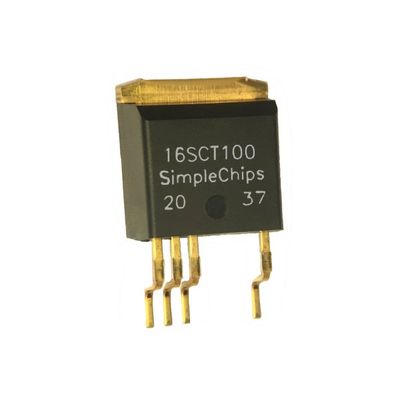

The 16SCT100 is a 1200V 15A fully integrated half-bridge high-side switch typically used in systems requiring H-bridges. The chip’s integrated circuitry drives an integrated MOSFET gate above the HV supply to ensure that the transistor is adequately saturated. All control lines are low voltage. Package creepage distances allow for 1200V operation without the use of conformal coating or slots.
