Simsonar Oy products

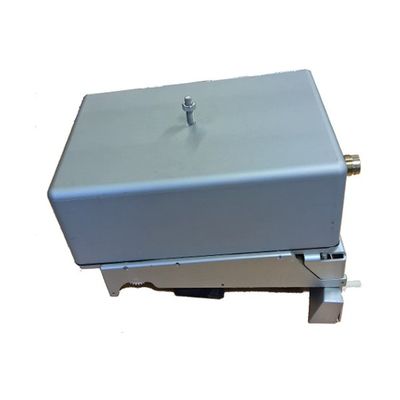

Simsonar UVC is based on ultrasound and is designed to monitor migratory fish when visibility is poor or the distance is long. UVC is based on ultrasound giving maximum distance of 70 meters (LR model).

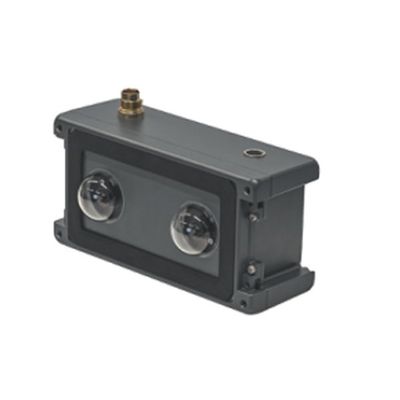

Simsonar FC is designed to detect fish in fishways and small brooks. FC is based on stereo optics enabling optical video and automatic measurements. Advanced pattern recognition makes fish detection and measurement more accurate and faster.

Camera unit that are installed under the water. Image width of Simsonar Ultrasound Video Camera is from 28 to 44 degrees. The practical shooting distance is 50 meters (standard model) or 70 meters (Long Range model). Camera unit is connected to power supply unit (Land Level Unit, called LLU). The user interface runs on Windows 10 PC that is connected to LLU (and to camera) via ethernet.

Simsonar FC is delivered with Simsonar Video Tunnel. It optimizes the distance and lighting to achieve optimum conditions for creating real time video and measurement of fish.
