SIPOS Aktorik GmbH products

Mounting position, duty classifications, noise level, paint finish and corrosion protection, lubrication, degree of protection, vibration performance, ambient temperature, installation altitude.

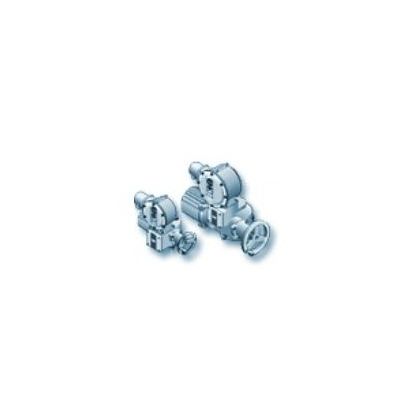

SEVEN HiMod was developed to operate in conditions where the highest quality of control is an absolute prerequisite. Among the exceptional quality features of the SEVEN HiMod is a Highres Absolute Position encoder with a maximum tolerance of 0.003 %. By means of this encoder, the HiMod actuator registers the position of the output shaft even when there is a power failure, if the position of the output shaft is altered by operating the hand wheel. As a result, changes of position which could occur during a power-cut can be reliably identified and, when power is reinstated, this information is communicated accurately to the control system.

2SP78.. was developed to operate in conditions where the highest quality of control is an absolute prerequisite.

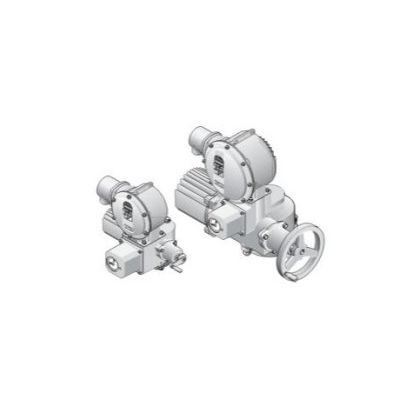

Standard duty 2SA50.. 9 to 4000 Nm. Modulating duty 2SA55.. 10 to 2800 Nm. Output speed range 1.25 to 160 rpm. mechanical interface
DIN ISO 5210 or DIN 3210.

SIPOS 5 HiMod was developed to operate in conditions where the highest quality of control is an absolute prerequisite.

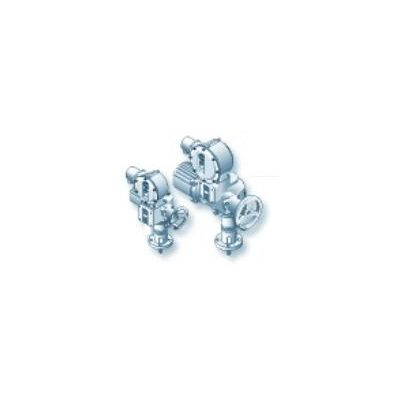

SIPOS 5 HiMod was developed to operate in conditions where the highest quality of control is an absolute prerequisite. Among the exceptional quality features of the SIPOS 5 HiMod is a Highres Absolute Position encoder with a maximum tolerance of 0.003 %. By means of this encoder, the HiMod actuator registers the position of the output shaft even when there is a power failure, if the position of the output shaft is altered by operating the hand wheel. As a result, changes of position which could occur during a power-cut can be reliably identified and, when power is reinstated, this information is communicated accurately to the control system.

Safety relevant - SIWI series: Standard duty M76361: 10 to 4000 Nm. Modulating duty M76362: 15 to 2800 Nm.
