SJE-Rhombus products

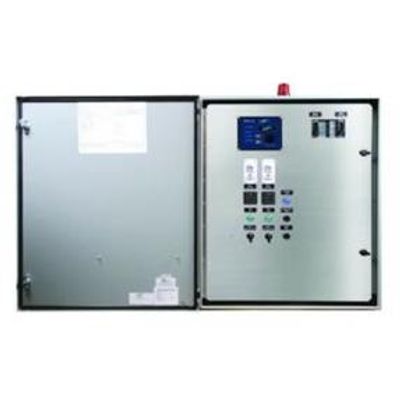

Drive more sales with our new ACCEL Panel Program designed to deliver top quality control solutions in a quick turn-around time for simplex, duplex and triplex water/wastewater applications. We’ve pre-engineered popular base models with select options that are quoted and delivered with accelerated lead times:

The Model 111 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.

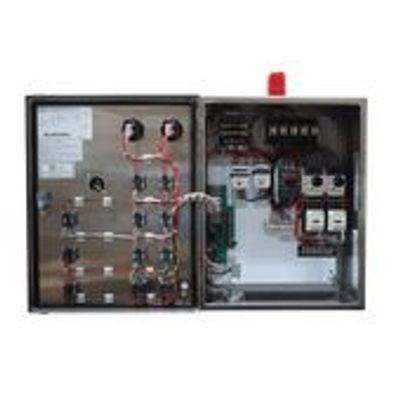

The Build-A-Panel PLUS Program offers expanded control panel options not available through the standard catalog. Don’t see the option you need listed? Let us know! We may be able to offer it through the PLUS program or we can design a custom engineered solution for you!

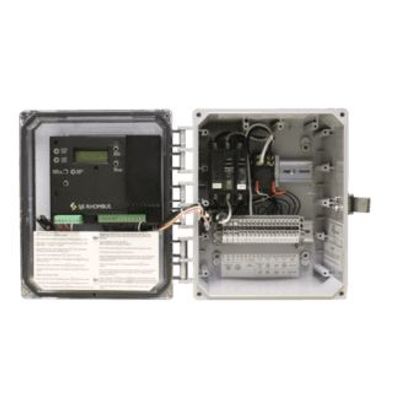

The EZ Series Single Phase Simplex panel is designed to control one 120/208/240V single phase pump in water and sewage installations. It features a digital backlit LCD display on the inside of the front cover for programming pump control and system monitoring, including: float status, elapsed time pump run, cycle counter, alarm counts (high water/power fail), float error count, auxiliary alarm counter, timer override count (TD only), on/off time (TD only). This innovative control panel is easily converted to demand or timed dose in the field.

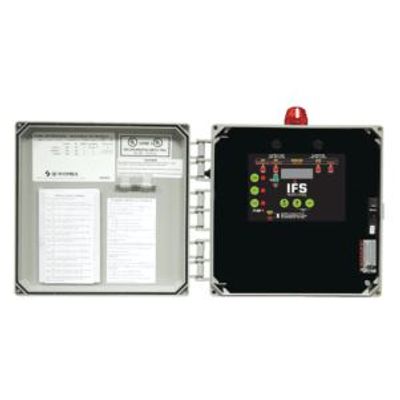

Installer Friendly Series control panels utilize circuit board technology for advanced pump control and system monitoring. The Installer Friendly Series® (IFS) Single Phase Simplex Demand/TD control panel is designed to control one 120/208/240V single phase pump in water and sewage installations.

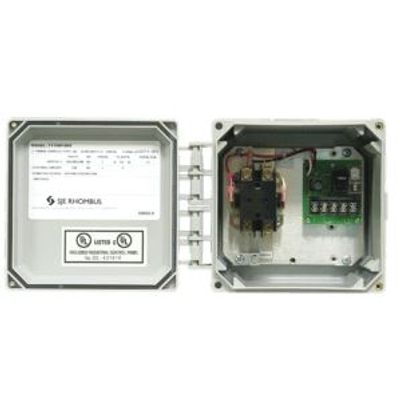

The NEX Series simplex panel is designed to control one single phase pump in water and wastewater applications. Two control switches activate a power relay to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audible/visual alarm system. The compact design (8 x 6 x 4″) is ideal for residential applications. Universal pump voltage and control/alarm power allows the NEX Series® simplex panel to handle three voltages (120/208/240V). The innovative internal design of components and integral mounting tabs make installation quick and simple.

The Xpert Alert Indoor Alarm System is an innovative multi-condition alarm that combines the latest liquid level technology with a sleek, modern design. When it comes to sump and septic alarm systems, Trust the Expert! SJE Rhombus® has over 40 years of providing high quality residential alarm systems to users all over the world. With our exceptional customer service and an industry-leading 5-year limited warranty, SJE Rhombus is the leading choice for protecting your home and valuables! The NEW Xpert Alert® indoor alarm system helps protect your home from potentially costly damage due to flooding, pump failure or freezing pipes. When the level rises in your tank, the high water float activates the alarm (audible and visual) to alert you of potentially threatening liquid level conditions. The sleek design of the Xpert Alert® alarm incorporates an LED alarm light ring that illuminates red for alarm 1 and amber for alarm 2.

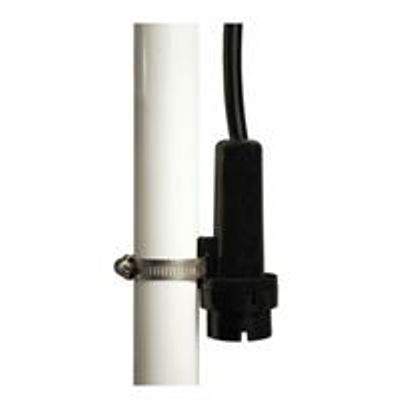

The innovative C-Level sensor provides continuous level monitoring in tank applications. The simple and accurate C-Level™ Sensor converts the water pressure in a tank into a low voltage electrical signal that is read by a variety of level monitoring products manufactured exclusively by SJE Rhombus. This innovative technology provides for continuous level monitoring for wastewater tank applications, confined space applications and systems with a high grease content.

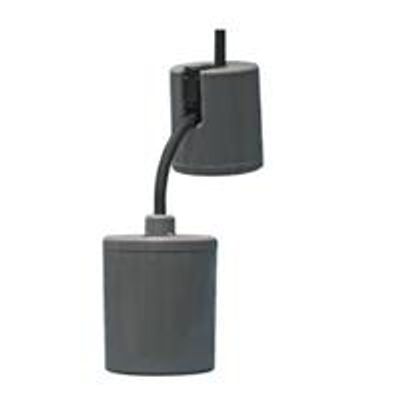

The SJE PumpMaster WPS is a mechanically-activated, wide-angle float switch providing automatic control in potable water and water applications. It provides direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC or control applications as low as 120 VAC, 100 mA. It is CSA Certified to meet NSF/ANSI 61 standard for use in potable water and approved for use in tanks of 250 US gallons (950L) in volume or greater per float. It can be wired to work in either pump down (normally open) or pump up (normally closed) applications. It is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.
