Skandia Elevator products

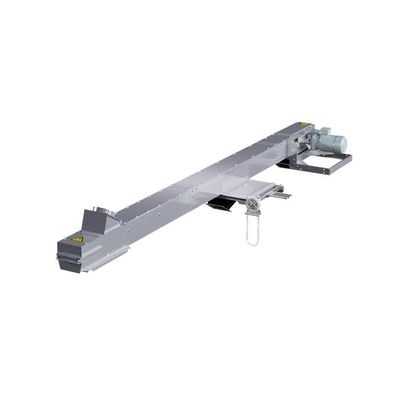

Manufactured from galvanized material and in accordance with the EU machinery directives. It is suitable for 15°, 30° and 45° degree conveying. Brush gear for intermediate outlet cannot be used on KTA. It is as standard a Category II 2D/0D Conveyor and complies with the European ATEX directive 94/9EC. When operating in a farm drying and storage plant handling different types of grain, the internal atmosphere complies with Zone 21 and the external is unclassified. If the conveyor operates in a plant where the external atmosphere is classified as Zone 22, electrical motors and switches must be ATEX approved. KTA is available in three models, 30, 40 and 60, and matches the Skandia Bucket Elevators SE140 and Chain & Flight Conveyors.

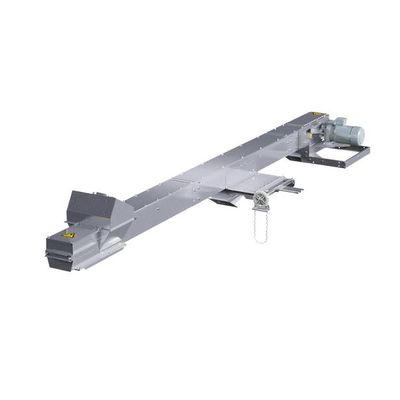

Manufactured from galvanized material and in accordance with the EU machinery directives. It is suitable for 15°, 30° and 45° degree conveying. It runs very quiet and is totally enclosed and dust free in operation. Brush gear for intermediate outlets can not be used on KTAb. It is as standard a Category II 2D/0D Conveyor and complies with the European ATEX directive 94/9EC. When operating in a farm drying and storage plant handling different types of grain, the internal atmosphere complies with Zone 21 and the external is unclassified. If the conveyor operates in a plant where the external atmosphere is classified as Zone 22, electrical motors and switches must be ATEX approved. KTAb is available in three models, 30, 40 and 60, to match the rated capacities of Skandia Bucket Elevators SE140 and Chain & Flight Conveyors.

Manufactured from galvanized material and in accordance with the EU machinery directives. It is suitable for 15°, 30° and 45° to horizontal conveying. Brush gear for intermediate outlets can not be used on KTAb. It is as standard a Category II 2D/0D Conveyor and complies with the European ATEX directive 94/9EC. When operating in a farm drying and storage plant handling different types of grain, the internal atmosphere complies with Zone 21 and the external is unclassified. If the conveyor operates in a plant where the external atmosphere is classified as Zone 22, electrical motors and switches must be ATEX approved. KTB is avaliable in three models; 30, 40 and 60, to match the rated capacities of Skandia Bucket Elevators and C&F Conveyors.

Our Conveyor Walk is built to fit the latest Eurocode-standards. Hard weather needn’t bother; the Conveyor Walk stays firmly fixed to the silo. The Conveyor Walk is also really robust, with strong railing and proper flooring. If you want the walk to be even safer and get quicker access to the outlets you can always add service platforms to the system. Or add our secure ladder to connect to an inter bin platform at the eaves. And the best news of all; the whole thing is really easy to set up.

Skandia Elevator offers two different galvanized ducting systems. 1 mm ducting is available in ø160, ø200 and ø250mm. 2 mm ducting for industrial use is available in ø200, ø250 and ø300mm. Both systems offer a wide variety of accessories such as 2, 3, 6 and 8-way valves.
