RT10 roughness tester is the basic tester of the range. This instrument is ideal to measure pieces directly on work stations or production machinery. Thanks to its simplicity of use, it is ideal for the simple numeric characterization of the roughness of an object and boasts quick testing times. Thanks to the internal memory, simple handling and integrated battery, RT10 is ideal for taking measurements in difficult conditions, like in case of bulky or complex pieces. RT10 Plus (code 1.101). RT10 roughness tester is also available in the Plus version which features a plug-in connector that allows to interchange the pick-up, thus being able to take measurements on all types of surfaces, by simply mounting the most suitable pick-up.

RT10G roughness tester was born from the success obtained by RT10; easy to handle and reliable like the basic version, it also carries out advanced analyses typical of a laboratory instrument. In addition to 31 roughness parameters calculated, RT10G displays the graphs of the roughness profile, primary profile, bearing capacity curves, distribution of ordinates, and allows to set tolerances on single parameters and personalize prints. RT10G uses new generation electronics with 0.001 µm resolution that ensure always reliable results and displays them in a user-friendly fashion, thanks to the internal icon menus taken from modern Smartphones.

The PGS100 profilometer allows to acquire 2D profiles in an extremely simple and intuitive way, thanks also to its measuring range of 130 mm in length (X) and 50 mm in height (Z). The use of the tool takes place through the commands given by the software or from the PC keyboard in a very intuitive way. The Profile Studio analysis program is equipped with all the CAD functions necessary for the dimensioning of your pieces, it also allows you to create programs to automate the characterization of the elements, for example during series measurements. The standard configuration that includes the worktable with "T" slot and the 32 mm chisel measuring probe, can be enriched and completed with various accessories, including the positioner with 3 or 4 degrees of freedom on bearings and the precision vice that allows you to firmly clamp the pieces during measurements. The calibration, thanks to the dedicated calibration sample, takes place guided by the software.

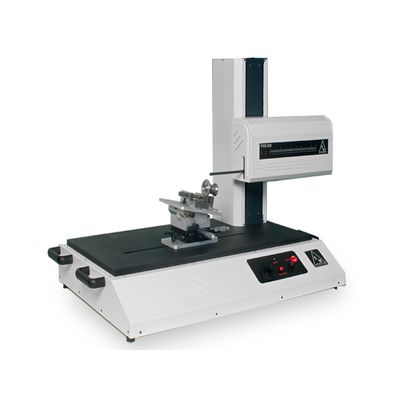

PGS200 profilometer is an instrument of new generation, able with a few simple operations, to characterise the profile of also complex pieces, thanks to the modern “all in one” logic: with just a few operations, it is immediately ready and calibrated to take measurements. Profile Studio software installed on PGS200 was conceived to be extremely user-friendly and easy to use by the operator.
