5 products found

SMART FACTORY Ltd. products

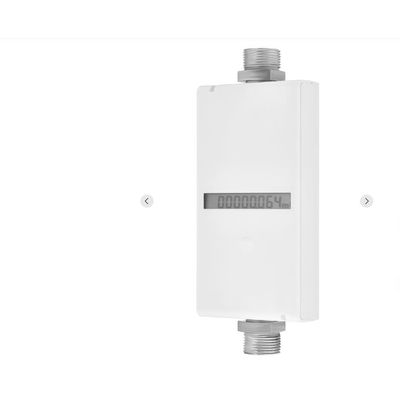

SMART FACTORY - Smart Single-Jet Water Meter

Single-jet dry electronic meter. Up to R160 - wide measurement range. DN15 - ideal for residential metering. Applicable for cold and hot water: from 0,1 to +90 °?. The embedded communication module: Sigfox, LoRaWAN, NB-IoT, Smart UNB. Certified in European countries. Resistant to magnetic fields. Bi-directional flow measurements. Vertical and horizontal installation. Electronic head with indicator, rotating 360 °. High IP67 enclosure protection. Long service life of a built-in lithium battery.

SMART FACTORY - Smart Ultrasonic Gas Meter

Electronic gas meter is based on an innovative ultrasonic technology. Thanks to it gas meter is compact and extremely precise. It immediately responds to flow changes and provides no pressure loss. The meter ensures stable measurement reliability over time and a long service life. The readings are saved in a non-volatile meter memory and then the embedded communication module sends all the data to a utility platform using one of the popular LPWAN technologies: SigFox, LoraWAN, NB-IoT, UNB.

SMART-FACTORY - Radio Modem

Radio modem is used to allow the remote monitoring of the consumed resources in case they are measured by traditional meters without IoT capabilities. The data is transmitted by the modem to the utility servers using one of the popular LPWAN technologies: SigFox, LoraWAN, NB-IoT, UNB.

SMART-FACTORY - Base Station

Base station receives readings from individual meters (water, gas, electricity meters) and radio modems using UNB LPWAN technology and transmits them to utility servers via Ethernet or LTE connection. A single base station is capable of supporting hundreds of thousands of end devices within a radius of several kilometers which reduces the cost of overall network and makes it the most costeffective solution for large projects.

Data Acquisition and Transmission Device

The device is intended for acquisition, processing, storage of data from meters and transfer of information via information channels to the upper level in automated systems for comprehensive utility metering. It is installed as a part of a three phase smart electronic meter and functions together with it. An important function of the device is time measuring and clock synchronization on the metering devices in automated systems for comprehensive utility metering.
