SMI Compact products

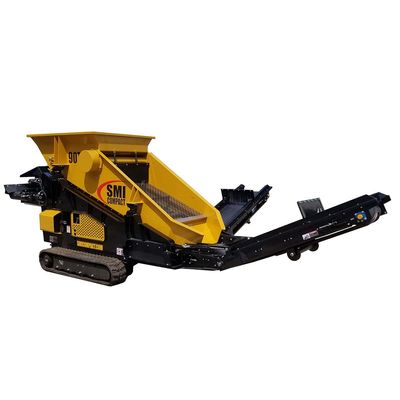

This self-contained compact screening plant comes complete with a receiving hopper, double-deck screen, three-cylinder diesel engine, and three stockpiling conveyors, all mounted on a remote control tracked chassis. It is designed for customers who need three screened products and is ideal for landscaping, golf courses, crushed aggregates, and sand. The screened material can be separated exactly where it is needed on site. Oversize and undersize contamination can be removed to create useable finished products from waste. It can be fed by excavator or directly from a crusher conveyor to make a complete system. The compact dimensions and low weight mean it can be easily transported and the hydraulically folding conveyors allow the plant to be set up in a matter of minutes.

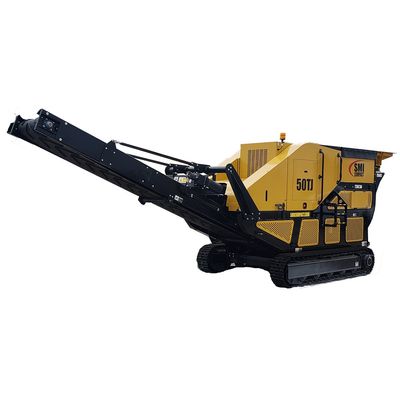

The Model 50TJ is a track mounted 16” x 28” jaw crusher fitted with a hydraulically driven variable speed vibratory grizzly feeder. This optimizes the crushing process by diverting the fines away from the crushing chamber and onto the output conveyor in order to reduce wear costs.  The feeder bed is fitted with wear plates that are easily replaced during maintenance periods. Instant hydraulic adjustable jaws allow output product sizes ranging from 1” to 5”. The wireless remote-control system means operation of the crusher from the safety of an excavator or loader cab.
