Solexperts AG software

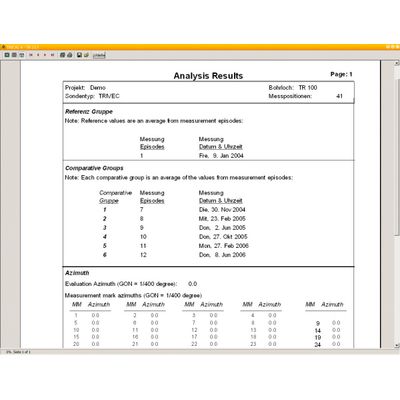

The Trical software is used for processing and evaluating measured values and measurement results of the Sliding Micrometer, Sliding Deformeter, Trivec and Borehole Inlinometer. The measured values are usually transferred from the field computer to the office PC or entered manually and then evaluated. The evaluation includes graphical and numerical representations of the displacement profiles in the vertical Z-direction or in the borehole direction and in the two horizontal directions X and Y. The measuring tube rotation is also evaluated. The measuring tube rotation and the measuring tube orientation are taken into account by coordinate transformation. The measurement results can be output in different languages and, for use in other programmes, also as result files.

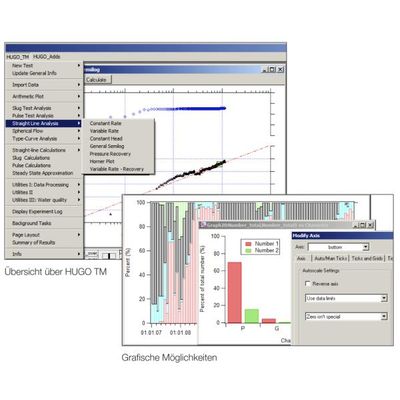

Our hydrogeologists are experts both in the performance and in the evaluation of hydraulic tests. The analysis is carried out in multiple steps, already starting during the field work:

Solexperts developed the "Dilato" software for the control and evaluation of dilatometer tests. The simple and clear programme displays the dilatometer tests in tabular and graphical form. The test evaluation is supported with various functions. The report is efficiently created with already prepared forms.

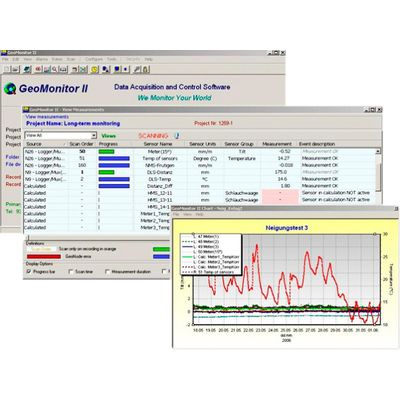

The software has the possibility to display real-time graphs, measurement logs, data statistics and to calculate virtual sensors (complex mathematical calculations with measurement data). It also includes an automatic event log and alarm system. The individual modules can be adjusted and changed at any time. The alarm system can be configured according to a wide range of requirements.

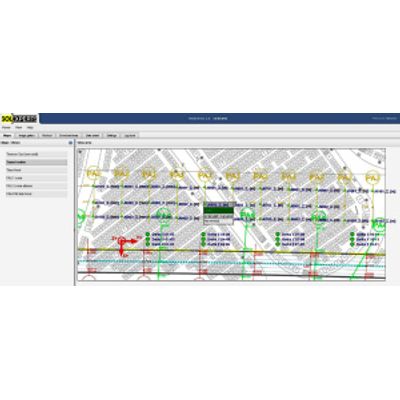

Large amounts of data are collected in many projects, which serve as evidence, represent the current test or construction status or need to be evaluated and displayed to support the necessary decisions. The display of the most recent data is very important and is absolutely necessary for the setup of alarms.
