Somni Solutions products

Displacement Sensors

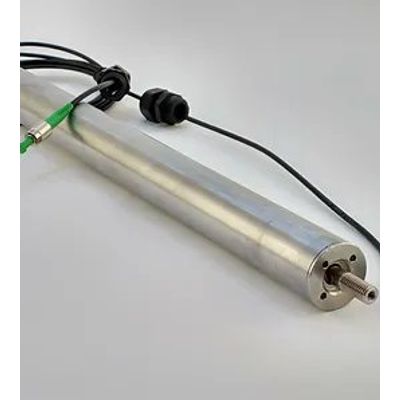

A fiber optic displacement sensor is used to measure travel range between where an object is and a reference position. A displacement sensor is used for all kinds of dimension measurements, for example and object`s thickness, height, and width in addition to travel range. The sensor on the left is a spring-loaded linear displacement sensor. This displacement sensor has a range of 30mm and can be adjusted at installation within the 30 mm range. The displacement sensor has an integrated temperature sensor which is used for temperature compensation during measurement.

Temperature Sensors

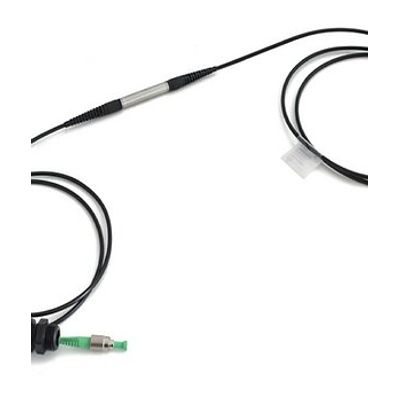

Most application require a temperature sensor which needs to be responsive and accurate for critical quality control. Our fiber Bragg Grating based temperature sensor has a ruggedized housing for use in harsh environments. The sensor can be mounted directly on the surface or embedded into nearly any structure including concrete.

Acceleration Sensors

Smallest Dual Ended Fiber Optic Accelerometer

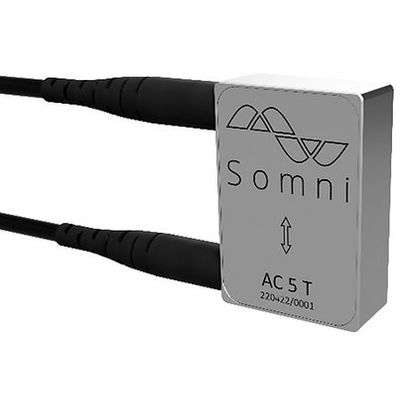

The AC 5 T is Somni`s smallest dual ended fiber optic accelerometer. Weighing less than 40 grams and with a size of only 22x32x10 mm this is the smallest FBG based accelerometer available worldwide.

Fiber Optic Accelerometer

AC 8 NT fiber optic accelerometer, specifically designed to measure high acceleration levels and high vibrational frequencies.
