Sonel S.A. products

Digital filters function for measurements in high noise environment. Continuity measurement of protective connections and equipotential bonding in accordance with EN 61557-4 with current > 200 mA. Adjustable limits for measured resistance R_ISO and R_CONT. Measurement of leakage current during insulation resistance testing. DC and AC voltage measurement in the range of  0...750 V. Drawing graphs on the display during measurement. Innovative  memory  with possibility of description of:   measurement points,  facilities,  names  of  customers. Operating with mini Bluetooth keyboard (option). Stable measurements in noisy environments such as 765 kV substations. Graphic LCD 5,6`’ backlit. Keyboard backlit. Power supply from main power line or battery packs. Built-in fast charger. The instruments meet the requirements of the EN 61557 standard.

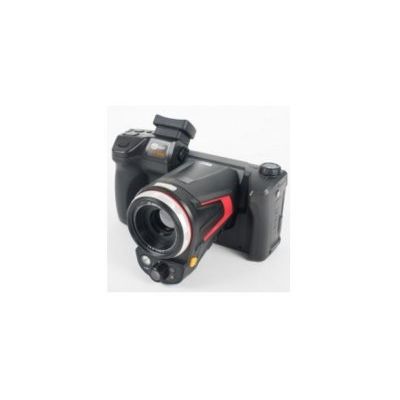

Polish manufacturer of measuring instruments introduces the new high level cameras with many usable features, matched with a wide variety of IR lenses. A fully radiometric, high resolution cameras which records temperature at each point of the image. This cameras make shooting professional IR images fast and easy as never before. Everything closed in a durable, water and dust proof casing, small size and low weight. Can you expect more? Yes, and Sonel gives you more. More features, options and functions (compass, GPS, IR analysing functions, Wi-Fi reports printing, others). Additional we offer you fully free, professional but intuitive software for image editing and reports creating. You need only to enjoy the quality, professionalism and performance of new Sonel KT series.

UV-260 isan innovative NDT - Non Destructive Testing equipment, that detects, pinpoints and documents flash-arc corona and arcing partial discharge camera! Being with high sensitivity UV-260 is a power tool to detect UV emission in full daylight with high signals from faraway and nearby sources. UV-260 is an ideal predictive maintenance device for overhead transmission lines and high voltage substations. UV-260 is newest genaration of UV imaging system with an emphasis on high performance functionality and easy operation, it is widely used in transmission line inspection, electrical utilities, HV research institutes, HV electrical component inspection, HV panal inspection, service providers, laboratories and more.

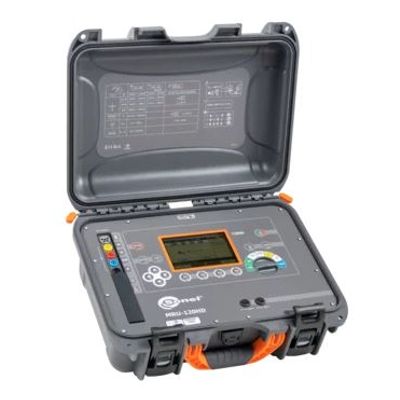

The Sonel MRU-120HD earth resistance and soil resistivity meter is a robust and functional device characterised by particular resistance to difficult working conditions. It is not afraid of dust or mud and performs excellently even in areas where there is an increased risk of splashing. With the use of the Sonel MRU-120HD meter it is possible to perform earth resistance measurements using the 3-pole and 4-wire method. The instrument also allows measurements to be made using additional clamps (multiple earthing - without the need to disconnect the monitoring connections) and measurements using the two-clamp method.

Remote measurements mean maximum safety. Choose the Sonel MZC-340-PV high-current short-circuit loop impedance meter for operating voltages up to 900 V AC with measurement category CAT IV 1000 V and efficient ventilation system for smooth and effective operation without downtime. It is only wirelessly controlled. In case of multiple short-circuit loop impedance measurements, some measuring devices may get blocked. This problem does not affect the Sonel MZC-340-PV meter. To prevent blockages, the device is equipped with a special high performance ventilation system that significantly reduces the time required to cool the short-circuit resistor. The Sonel MZC-340-PV advanced high current meter is the right choice for professionals in the power, electrical, as well as installation and measurement industries.
