Sonotronics, Inc. products

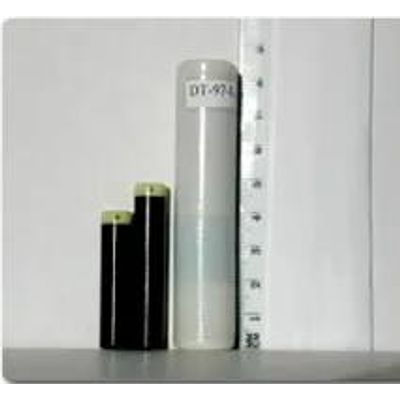

Coded transmitters generate a unique aural sequence, as well as unique combinations of frequency and ping interval allowing detection by both passive and active receivers. The CT series of transmitters offer an excellent value with a choice of long life, good range, and small size.

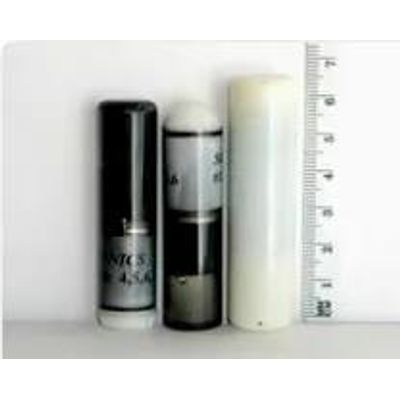

Sonotronics temperature telemetry transmitters transmit their current temperature by varying the pulse interval time between pings. For example, a tag at 0 deg Celsius may have an interval time of 700ms, and at 25 deg celsius it may have a pulse interval time of 1450ms. Temperature tag instruction sheets are sent with temperature tags. The temperature transmitters have an accuracy of +/-2 deg C and a resolution of.5 deg C. The transmitters can be user calibrated for accuracies greater than +/- 2 deg C.

Sonotronics’ depth telemetry transmitters transmit their depth by varying the pulse interval time between pings. For example, a tag at 0psi at the surface may have an interval time of 650ms, and a full scale pressure of 100psi with a corresponding interval time of 2050ms. Depth transmitters come in 50, 100, 200, 300, and 500psi models. The accuracy of these transmitters is +/- 2% of full scale.

The MANTRAK kit was designed to bring together the most common tools our customers have found to be valuable for manual tracking. The kit has become the most frequent package used by first time researchers.

Sonotronics, Inc. offers an Under Water Diver Receiver that allows a diver to approach an object or animal marked with an ultrasonic pinger*. The UDR can achieve ranges exceeding 1km, while still allowing relocation in zero visibility. The UDR comes with waterproof headphones and has variable gain control to maintain good signal strength and directionality during approach of the target, as well as volume control and a backlit display. The UDR is user programmable for frequency and gain ranges. The UDR has been used in field research for locating pingers manufactured by SONOTRONICS as well as others.

The USR-14 is an active tracking receiver with new features to locate ultrasonic transmitters manufactured by SONOTRONICS, Vemco or Lotek Wireless.

The DH-4 provides the greatest range and precision in locating transmitters from 30kHz to 100kHz. The parabolic reflector provide 16db of gain over a comparable omnidirectional hydrophone, and yields a calculated DI of nearly 25db, reducing the effect of environmental noise. The DH-4 is the primary hydrophone for manual/active tracking.

The DH-5 is a small directional hydrophone for use in shallow water or from the boat deck at low speeds.

The TH-2 provides a simple method for mobile active tracking: its small size and hydrodynamic shape allows for trolling at speeds up to 5 knots, while the long cable length minimizes the affect of engine and prop noise. Eyelets allow attachment of small weights or diving lures to ensure the hydrophone is kept at depth while trolling. This design, though simple, rivals more elaborate and expensive systems in actual field trials.
