Spectrex - Emerson Process Management products

The New SafEye Quasar 900 is an open path detection system which provides continuous monitoring for combustible hydrocarbon gases. It employs “spectral fingerprint” analysis of the atmosphere using the Differential Optical Absorption Spectroscopy (DOAS) technique.

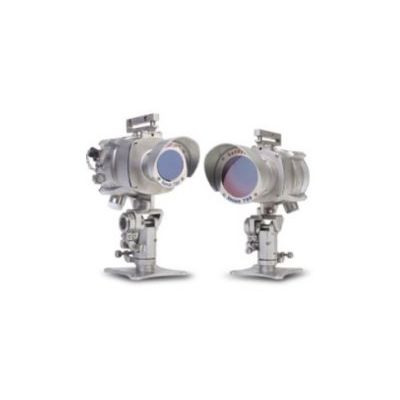

SafEye 700S Series integrates the well-proven, superior Xenon Flash technology. The 700S series includes heated optics to withstand severe environmental conditions such as icing, snow, condensation, SIL2 approved  and has a data port to allow easy access for maintenance or configuration changes. Highest quality backed by a 3-year warranty (10-years for the source flash bulb). The SafEye is fully functional in heavy fog, rain, etc. with up to 90% of the signal obscuration. The low maintenance SafEye, due to its special optics design, has a misalignment tolerance of ±1° in all directions.

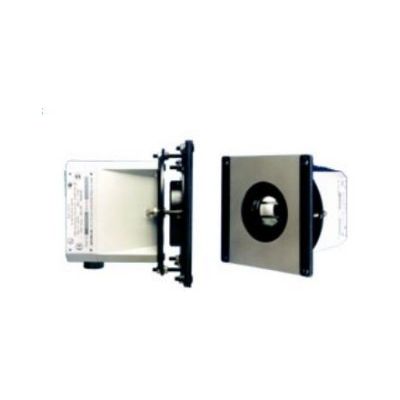

he Duct SafEye Open Path Detectors were specially designed and are widely used to monitor ingress of hazardous flammable gas concentrations into air intakes of turbine engines and HVAC air ducts. Duct applications require that the small path across an air inlet responds with a very high sensitivity, full scale of 1 LEL.m for 2-6.6 ft (0.6-2 m) wide inlet and full scale of 2.5 LEL.m for 6.6-23 ft (2-7 m) wide inlet. Special duct mountings allow a clear path across the duct and are easy to align. Due to its special optics design, it allows a misalignment tolerance of ±2°. Fast Response 20-50 times faster than point type detectors or sampling systems.  Fast response time of 2 seconds

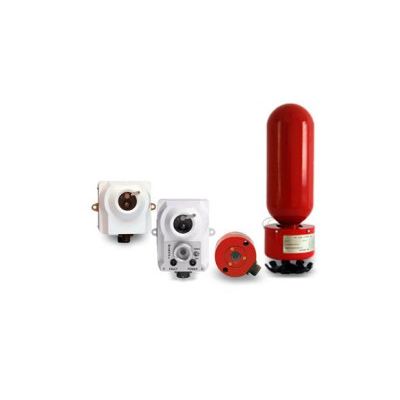

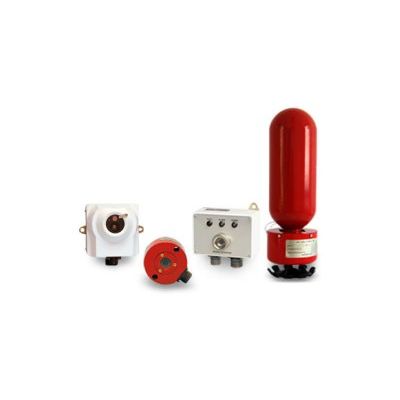

The Spectrex system is an automatic fire/fuel explosion detection system, specifically designed for small Tactical Vehicles, providing increased survivability against fires initiated by IED`s and penetrating munitions.
