Spectron Gas Control Systems GmbH products

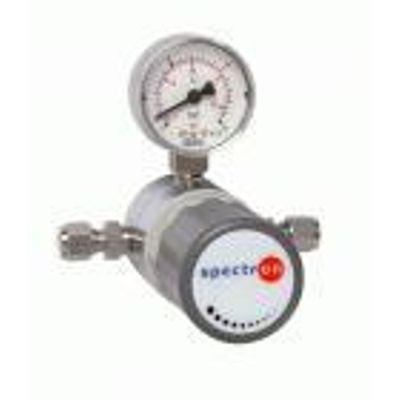

Single-stage cylinder pressure regulator. Simple and safe gas withdrawal from gas cylinders, for corrosive gases and gas mixtures up to quality 6.0 up to 25 bar vapour pressure.

Stainless steel line pressure regulator. Pressure regulator with very stable outlet pressure and anti-vibration device. For corrosive, toxic gases and gas mixtures with corrosive components up to quality 6.0. 2, 4 or 6 ports for flexible and individual configuration.

Stainless steel panel pressure regulator for panel and panel surface mounting. Pressure regulator with very stable outlet pressure and anti-vibration device. For corrosive, toxic gases and gas mixtures with corrosive components up to quality 6.0. 2, 4 or 6 ports for flexible and individual configuration. Suitable for inlet pressures up to 300 bar.

Wall- and cabinet-mounting stainless steel high pressure panels. For corrosive gases and gas mixtures with corrosive components up to quality 6.0.

Stainless steel safety shut-off  device (SSD) for pressure control panels. Immediate stop of the gas supply at excessive increase of the outlet pressure. For corrosive, toxic gases and gas mixtures with corrosive components up to quality 6.0. Suitable for an inlet pressure up to 300 bar. Suitable for max. outlet pressure between 1.5 and 100 bar.

Extension modules for purging with inert gas in Spectrocem BE55 and 56 series pressure control panels. Non-return valve in the inlet. Filter in the in- and outlet. Laboratory-style design. Handwheel with on/off position indicator.

Stainless steel safety valve for Spectrocem BE55 and BE56 series pressure control panels. Protects the pressure control panel and the downstream system from overpressure. For corrosive, toxic gases and gas mixtures with corrosive components up to quality 6.0. Design according to ISO 4126-1: completely open at activation pressure +10% closed at activation pressure -15%. CE certified (CE 0036). Approved for use with oxygen.

Stainless steel-pigtail for the connection of a gas cylinder to BE/BM series pressure control panels. For gases up to quality 6.0. 4 windings for sufficient flexibility. Manual cylinder valve connector for easy installation and cylinder change without tools (for CEN-connections and for DIN-connectors for non-corrosive gases only). Compact pigtails available for gas cabinets or applications with other space constraints.

Stainless steel-pigtail for the connection of a gas cylinder to BE/BM series pressure control panels. For gases up to quality 6.0. 4 windings for high flexibility in all directions. Manual cylinder valve connector for easy installation and cylinder change without tools (for CEN-connections and for DIN-connectors for non-corrosive gases only). Compact pigtails also suitable for gas cabinets or applications with other space constraints.
