Spink Controls products

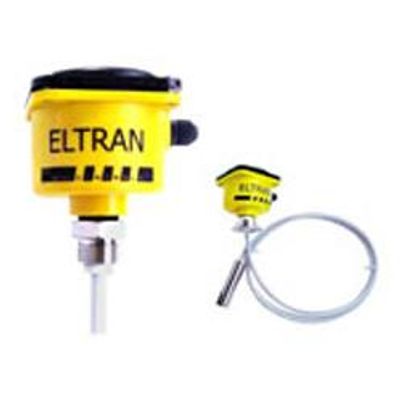

New generation capacitance based level transmitter for any type of liquids. “ELTRAN” is based on the physical properties of capacitor. The sensor selection is based on the type of liquid and can be measured from 50 mm to 2000 mm with rugged probe and above 2000 till 10000 flexible probe are used.

It is specially designed for diesel level measurement. It is the only transmitter in its class which measures minimum height as low as 65 mm with an accuracy of 0.5 mm. This is directly mounted on any diesel generator fuel tank. This product is specially designed for mobile tower management system and has got proven track record at many locations. Eltran 705 Abs : Diesel.

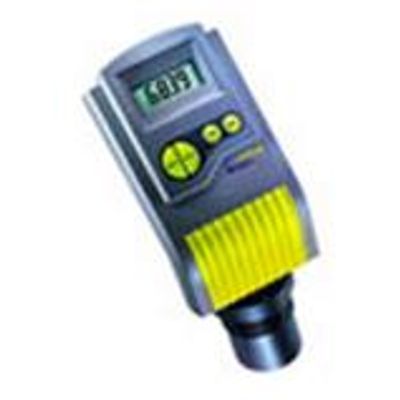

Monoscan is a product of solid applied technologies ltd., Israel. Monoscan is an ultrasonic level measuring instrument with a loop-powered 4-20ma device, with integral lcd display. Monoscan is an excellent choice for measuring the level with a 0.25 % accuracy.

Remote fuel tank monitoring: Detect and alert for fuel theft. Identify refueling process and report quantities. Track fuel inventory in large tank farms.

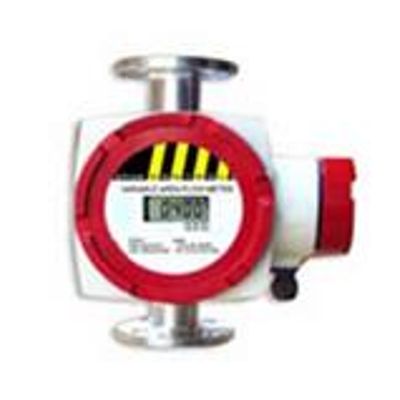

It operates on the principle of variable area; the fluid in the metal tube raises the float in the taper tube increasing the area of passage of fluid. By a magnetic coupling the inner float movement through a series of linkages and counter weight. The tube and the float combination determines the flow rate. The inner float magnetic field is detected by the high sensitive magnetic field detection sensor, enable us to show the digital readout. As such this flowmeter does not require any electrical connection, since it operates on battery. This got an inbuilt two wire transmitter just provide 24 vdc. and take 4 – 20 ma signal.

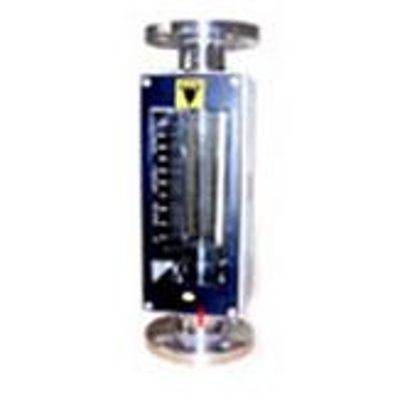

It operates on the principle of variable area the fluid in the glass tube raises the float in the taper tube increasing the area of passage of fluid. The float moves up in proportion to the rate of flow of fluid and get stabilized when the weight of the float is balanced by the upward hydraulic force. The tube and the float combination determines the flow rate. The float has a sharp metering edge where the reading is observed by means of scale mounted along side of the tube. The taper glass tube is formed of annealed borosilicate glass of extremely high accuracy bore.

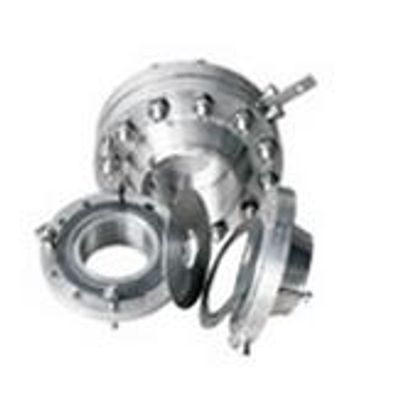

The orifice plate with flange assemblies are employed for measuring the rate of flow or quantity of moving fluids like liquids, gases or vapours. The orifice plates are designed as per BS1042-1981 / ISO 5167 & L K. SPINK STANDARDS. When a device such as an orifice plate in a pipe line through which a fluid is flowing, as static pressure difference exists between the upstream side & the downstream side of the device is geometrically similar to one on which direct calibration has been made, the conditions of use being the same, the rate of flow may be determined from a knowledge of the circumstance under which the device is being used.

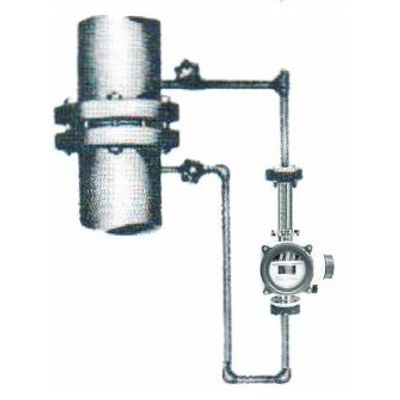

The ori-flow meter measures flow by inserting an orifice at part of the piping, generating differential pressure before and behind the orifice by means of the flow, and extracting this differential pressure by a suitable method. Differential pressure (p1-p2) of main orifice & the flow q have shown in equation given below. The flow is proportional to square root of the differential pressure.

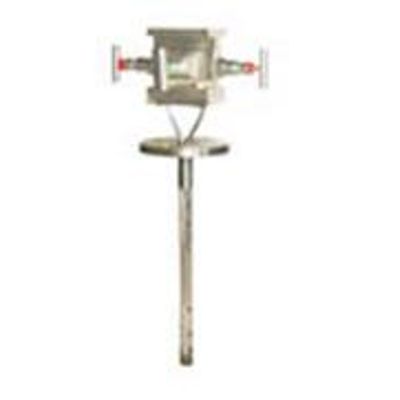

The pitot tube produces a Differential pressure (DP) signal proportional to the square of the flow rate in accordance with Bernoulli`s theorem. This signal has two components, the high pressure (HP) and the low pressure (LP).

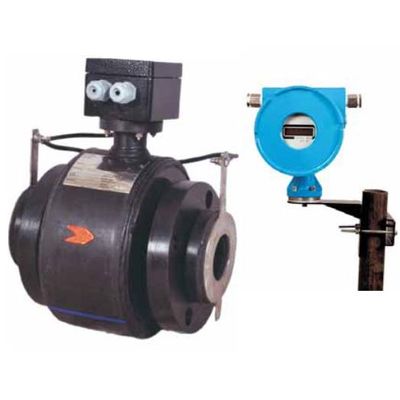

Spink introduces new range of Plastic Body Electromagnetic Flowmeters for the first time in India. These Flowmeters will help you reduce your cost and at the same time giving performance as that of metallic body Flowmeters. It is suitable for pipes with diameters of 10 mm to 150 mm. The meter features flanged construction. It has excellent accuracy and flow rangeability. The meter is suitable for use on wide range of corrosive and aggressive range of conductive liquids.
