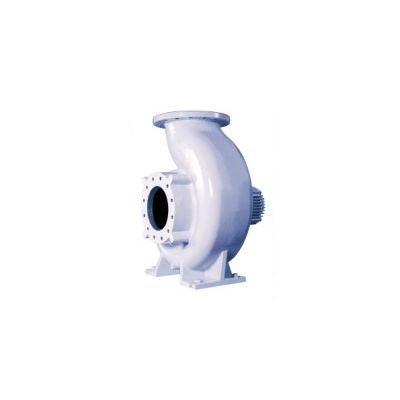

The Aquaglide range of high efficiency large end suction pumps has been developed for high capacity water pumping applications. A range of material and coating options is available catering for non-corrosive and corrosive applications including seawater. The Aquaglide range covers duties from 250 m3/hr to 10,000 m3/hr. Larger duties are covered by our engineered range (please contact our marketing department for further details). For lower flow duties please refer to the Isoglide range of medium end suction pumps.

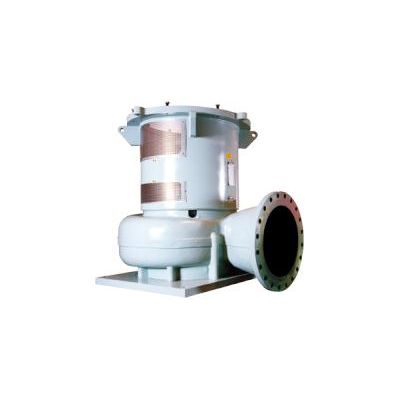

The Swallowglide is a solids handling end suction pump, specifically designed for sewage, effluent and screened sewage. Robust design and features developed over years of running experience make the CydeUnion Pumps Swallowglide a highly reliable pump with hundreds of installations globally.

The Uniglide range consists of both configured and engineered to order axially split double suction pumps. This traditional range is available in larger capacities up to 20,000 m3/hr 88,000 US GPM

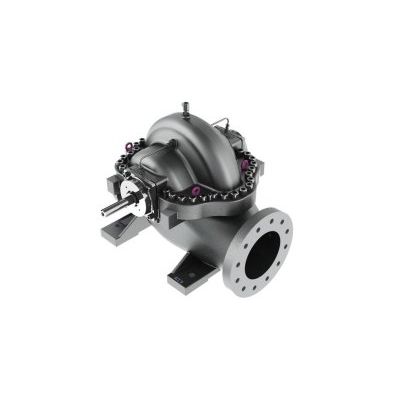

The ClydeUnion Pumps Uniglide-e range is the latest generation of axially split double entry pumps. The range has been developed using the latest 3D and FEA analysis software together with extensive consultation of major users. This has produced an advanced pump which will provide total reliability and reduced whole life costs.

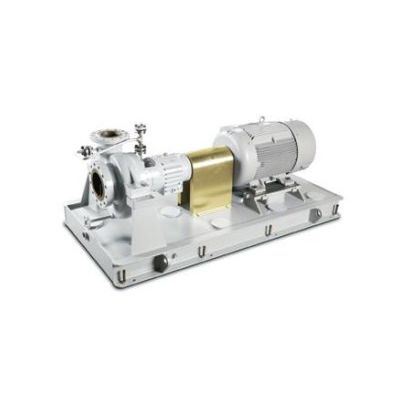

The ClydeUnion Pumps CUP-OH2 pump is a heavy duty, single stage, radially split, overhung, end suction machine, designed and manufactured to the latest edition of API 610. The CUP-OH2 pumps are employed for many oil & gas, desalination, power, and general industrial applications. Stringent API noise and vibration limits are met due to a rigid pump body with 360 degrees bearing support and heavy centreline mounting. Reliable operation at elevated temperatures, is ensured due to a number of cooling methodologies complementing inherently cool running bearing modules. The CUP-OH2 pump is a back pull-out design that allows the complete rotating assembly to be removed without disturbing the suction or discharge pipework. ClydeUnion Pumps legacy brands including HHS, DB10, and SMK, H-OP provide the industry with a very comprehensive hydraulic coverage.

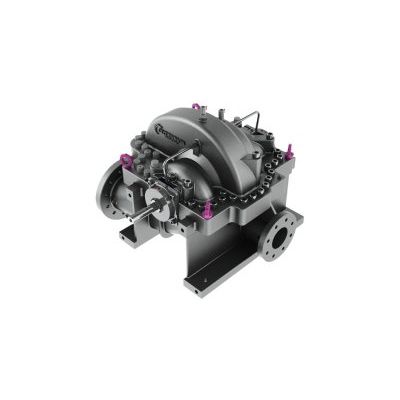

The ClydeUnion Pumps Duoglide range consists of both configured and engineered to order axially split case, two stage pumps designed for higher head/flow applications. The Duoglide provides higher efficiency and lower maintenance than traditional ring section or high speed single stage pumps.

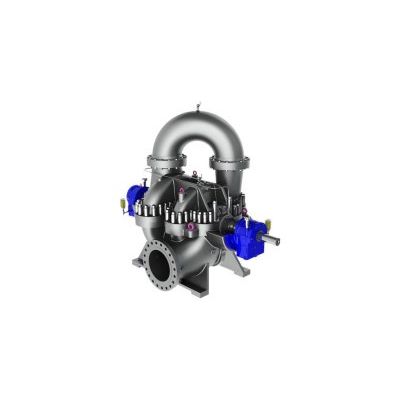

The ClydeUnion Pumps Duoglide-e range is the latest generation of axial split two stage pumps. The range has been developed using the latest 3D and FEA analysis software together with extensive consultation of major users. This has produced an advanced pump which will provide total reliability and reduced whole life costs

The ClydeUnion Pumps Condensate Extraction Pump (CUP-CEP) is a vertically suspended mixed flow bowl pump range designed specifically for the requirements of the power generation industry. The pumps can be configured with either above or below floor suction to suit the specific design considerations of the plant. Additionally, the full range of pumps can be provided with either a single or double suction inlet stage to closely match your site NPSH, thereby optimising the solution provided. Designed for both the 50 and 60Hz markets, these pumps are suitable for a range of 4 and 6 pole duties and pressures.

ClydeUnion Pumps has been designing and manufacturing multistage throughbolt and boiler feed pumps for nearly 100 years. The ClydeUnion Pumps CUP-FT/FK (2 Pole) is a world class product range designed for boiler feed applications, meeting the demands of modern thermal, combined cycle and solar power plants. Our extensive engineering, manufacturing and operational experience has been incorporated in the design of the 2 pole diffuser pump CUP-FT/ FK (2 Pole). A radially split case diffuser type pump with options for throughbolt (FT) or barrel case (FK), designed for low, intermediate and high pressure and temperature applications. A world leading product, with features such as optimum hydraulic design, sustainable efficiency, and the inherent ability to withstand thermal shock, the CUP-FT/FK (2 Pole) range pump offers reliable operation and low through life cost of ownership.

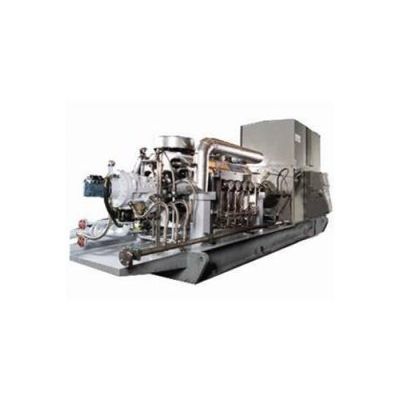

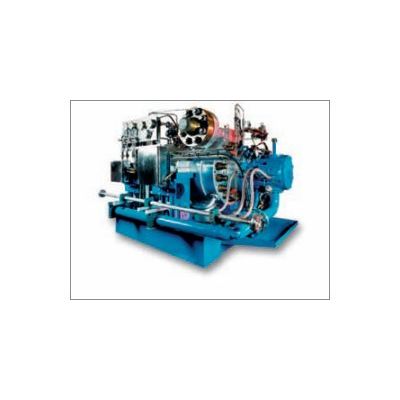

ClydeUnion Pumps has vast experience, over 70 years, of supplying large high speed multistage pumps. Our extensive engineering, manufacturing and operational experience has been incorporated in the design of the CUP-FK, a radially split, barrel case, multistage diffuser pump designed for high pressure, high temperature and high speed applications. A world leading product with features such as optimum hydraulic design, sustainable efficiency, full cartridge withdrawal, and the inherent ability to withstand thermal shock, the CUP-FK range pump offers reliable operation and low through life cost of ownership. The CUP-FK range has been designed to produce an advanced pump with reduced whole life costs. All the pump internals can be withdrawn quickly without disturbing pump alignment or pipework. This helps in saving time and making maintenance straightforward.
