High accuracy within temperature ranges of -20°C up to 900°C. Easy to use - small size. Excellent thermal sensitivity (NETD) of 0.08 K. Exchangeable lenses with 9° FOV and 31° FOV. Real-time thermography with 100 Hz frame rate. USB powered device. 1m, 5m or 20m cable length. Windows XP/Vista - Software PI Connect. Analog input and output, trigger interface. Extremely lightweight (250g) and rugged (IP65). Size 45mm x 45mm x 62mm.

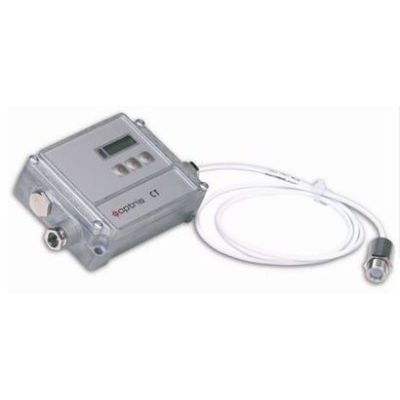

One of the smallest infrared sensors worldwide with 22:1 optical resolution. Rugged and usable up to 180°C ambient temperature without cooling. Separate electronics with easy accessible programming keys and LCD backlit display. Selectable analog output: 0/4-20 mA, 0-5V, 0-10V, thermocouple type K or J. Optional USB, RS485, RS232 interface, relay outputs (2x optically isolated), CAN-Bus, Profibus DP, Ethernet. Installation of up to 32 sensing heads.

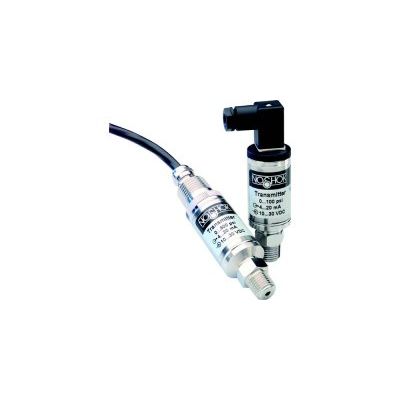

NOSHOK 100 Series current output pressure transmitters are designed to provide a previously unequalled level of performance, utilizing diffused semiconductor and sputtered thin film strain gage technology. 100 Series transmitters are highly repeatable, shock resistant and are extremely stable over long periods of time. CE compliance which includes substantial levels of RFI, EMI and ESD protection combined with reverse polarity and over-voltage protection insure they perform well in the most demanding applications.

FM Series Turbine Flowmeters provide exceptionally reliable digital outputs. These flowmeters are being used for a wide variety of liquid and gas flow sensing applications. FM Series meters range in size from 1/2 inch to 12 inches, offer a high turn‑down with minimum uncertainty and very repeatable output. The turbine flowmeter is ideal, if the liquid to be metered has a viscosity of 500 cst or less for 2 inch and larger flowmeter, and 200 cst for smaller than 2 inch flowmeter. The turbine flowmeter has a quick response time as the rotor has low inertia and is suitable for measuring fluctuating flow. For pulsating flow, digital readout should be used and the counting period should be long, compared with the frequency of the flow pulsations. If the flow is in the form of one jet, for example while measuring a short single discharge, the pulsing rate of the flowmeter should be high.Bearing wear is usually increased with pulsating flow.

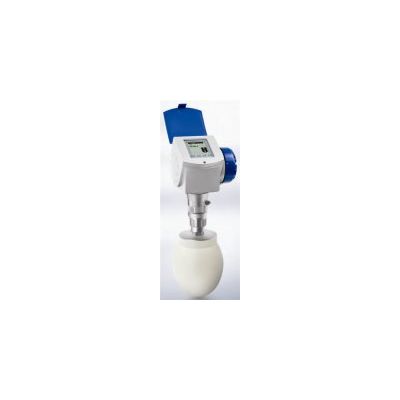

This device is a non-contact Radar (FMCW) Level Meter for distance, level, volume and mass measurement of powders, granulates and other solids. It gives a stabler measurement than pulse radar and is well suited to dusty process conditions. The device can operate at very low and very high process temperatures as long as the process connection temperature limits are observed. * Sold in the water, waste water industries in Alberta.
