Stan Design Inc products

The Fast-Lube rolling Pit Jacks are designed to fit your pit.  These jacks are designed with the technician in mind.

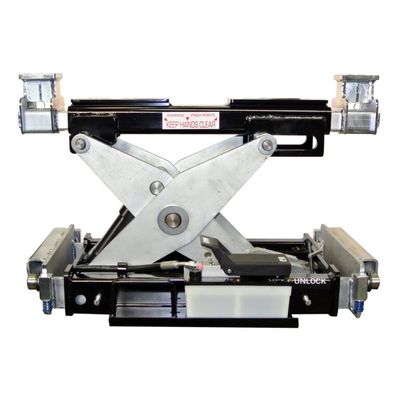

The Hot Rodder jacks offer great performance with an extended lift height of 12” that’s a lot higher than other jack in its class.  Also the jacks feature poly wheels for most all lift applications. The wheels provide smooth rolling action and low maintenance.

Scorpion TJ12S: Capacity – 24,000 lbs./12 Tons. Only 8’’ Collapsed Height. Lifts Over 15.75”.

Scorpion TJ12SL: Capacity – 24,000 lbs./12 Tons. Only 7.5’’ Collapsed Height. Lifts Over 15”.

Scorpion TJ14: Capacity – 28,000 lbs./14 Tons. Only 8.25” Collapsed Height. Lifts Over 20”.

Scorpion P12S: Capacity – 12,000 lbs. Dual Hydraulics Arms. Extended Lifting Height – Over 20”. Size – 31” Wide. Expandable Size - 46” Wide.

Scorpion PJ15: Capacity – 15,000 lbs. Dual Hydraulics Arms. Extended Lifting Height – Over 20”. Size – 34” Wide. Expandable Size - 42” Wide.

Scorpion PJ25: Capacity – 25,000 lbs. Dual Hydraulics Arms. Extended Lifting Height – Over 20”. Size – 34” Wide. Expandable Size - 42” Wide.

Capacity – 6,000 lbs. Heavy-Duty Hydraulics. Extended Lifting Height – Over 11”. Lowest Collapsed Height. Application: Aboveground Lifts are ideally suited to any of the following lifts: Rotary, Bend-Pak, Challenger, Wheeltronics, Snap On, Hoffman, John Bean Company, Western, Benwill, Globe, Stenhoj and Hunter (all 12,000 or 14,000 lb. capacity models).

Capacity – 7,000 lbs. Heavy-Duty Air Bag. Extended Lifting Height – Over 10.25”. Lowest Collapsed Height – Only 7”. Application: Ideally suited to any of the following lifts: Rotary, Bend-Pak, Challenger,Forward, Western, Benwill, Globe, Stenhoj and Hunter (all 12,000 or 14,000 lb. capacity models).
