Standard Glass Lining Technology Limited products

AE Reactors, also known as Range-Type Glass-Lined Reactors, are specially designed for various chemical and industrial processes. These reactors feature flanges at the top of the vessel, facilitating ease of maintenance and versatility The flanged design allows for easy access to the interior, making tasks such as cleaning, inspection, and repairs more efficient. Additionally, the top flanges enable the integration of accessories and modifications to suit specific process requirements, making these reactors highly versatile.

Monoblock pressure vessels ere a specialised type of pressure vessel designed as a single, integrated unit Unlike traditional pressure vessels, which consist of multiple welded or bolted components. Monoblock pressure vessels are manufactured as a single unit with a center opening cover. This seamless construction offers enhanced strength durability, and a reduced risk of leakage, making them ideal for high-demand applications.

The BE Reactors ere renowned for their single-piece construction where the largest opening is the manwey (DN500 or DN600). as per DIN 28136 standards These reactors range in capacity from 1.600 to 40.000 litres, offering high flexibility and efficiency in agitation with multiple blade change features to cater to various customer requirements and process configurations. The unique Cryo-Fix technology allows agitators to be assembled inside through the manhole. ensuring minimal downtime and easy maintenance.

Receivers, also known as Flange-Type and Monoblock Glass-Lined Receivers, are specifically designed for various chemical and industrial processes. These vessels are typically located close to reactors for dosing reactants upstream or recovering specific substances downstream of the reaction. Flanged receivers feature flanges at the top, providing ease of maintenance, while Monoblock receivers are constructed as a single, seamless unit for enhanced durability and reduced leakage.

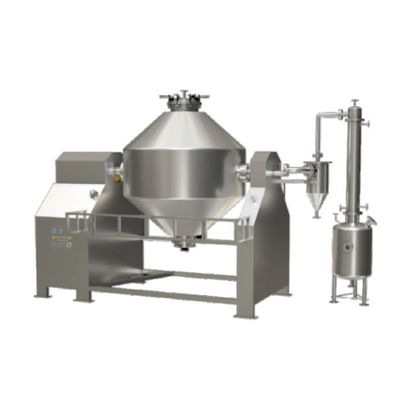

Our Glass Lined Rotary Cone Vacuum Dryers (RCVDs) provide efficient and uniform drying solutions for chemically aggressive substances. The Glass Lined RCVDs are expertly designed to deliver optimum drying efficiency The completely jacketed construction allows for effective heat transfer through fluids such as hot water, steam, or vapor circulated through the conical jacket. This ensures even product drying through conduction. The unique shape end rotation of the RCVD facilitate thorough mixing and highspeed drying, maintaining uniform temperatures and eliminating cold spots, thus preventing product re-condensation. High vacuum is employed to remove any remaining moisture, ensuring a dry.
