Standex Electronics products

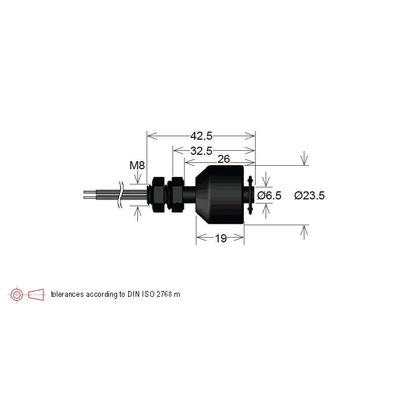

Compact single level vertical mount LS01 Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other cables and connectors.

Compact single level vertical mount LS02 Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other cables and connectors. IP68 only up to screw in thread.

The MFM7-APS90-LACD4 Hall Effect Angle Position Sensor operate at 8 to 32 VDC and provide 0-5V analog output over 90 degrees of rotation. “APS” type Angle Position Sensors are non-contact sensors that detect a marked magnet to define orientation. The output is proportional to the angle. The flange mount housing installation ensures proper orientation and gap from the target magnet. The MFM7-APS90-LACD4 Angle Position Sensor has a regulated and load dump protected input with linear analog output. A ratiometric output to internal 5 V regulator, analog ref. output wire can be connected for regulator tolerance. Furthermore, the sensor is potted in a flange mount housing with Deutsch DT04 4-pin connector. Target Magnet Sold Separately

The MFM7-APS360-LACD4 Hall Effect Angle Position Sensor operate at 8 to 32 VDC and provide 0-5V analog output over 360 degrees of rotation. “APS” type Angle Position Sensors are non-contact sensors that detect a marked magnet to define orientation. The output is proportional to the angle. The flange mount housing installation ensures proper orientation and gap from the target magnet. The MFM7-APS360-LACD4 Angle Position Sensor has a regulated and load dump protected input with linear analog output. A ratiometric output to internal 5 V regulator, analog ref. output wire can be connected for regulator tolerance. Furthermore, the sensor is potted in a flange mount housing with Deutsch DT04 4-pin connector. Target Magnet Sold Separately
