STDS-Jantz GmbH & Co. KG products
STDS - Model Premodrill 50 - Drilling Rig
The own developed STDS-Jantz drilling rig Premodrill 50 sets new dimensions to the well drilling industry.Premodrill 50 convinces with its simple operation via a remote control panel for driving , all drilling functions and also winch, mud pump and hydraulic casing extraction clamp.

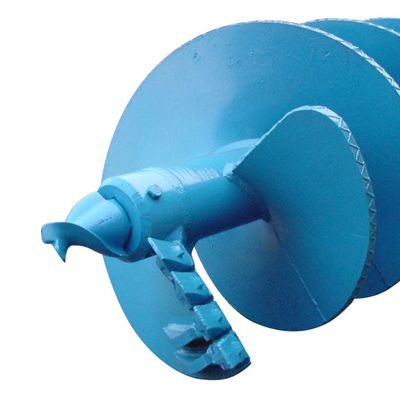

STDS - Solid Stem Drilling Auger
Our heavy-duty solid stem augers, when used with lead augers and drill heads, are ideal for drilling in all types of soil including
STDS - Model CFA - Drilling Systems for Piling
Single-walled casings for the double head drilling system have a standard wall thickness of 10-16 mm and a welded-on casing shoe with cutting teeth. They are fitted with a male coupling for connection to the casing head adaptor, and are available in all working lengths.Our casings for double head drilling systems are available to suite all popular drilling units. Depending on the diameter, they have either 2 or 3 side openings for discharge of spoil, and a female coupling to accept the casing. The standard working length is 1,000 mm.
STDS - Rotary Drilling Tools
Our rotary drilling tools are built for use with modern high-torque machines and to a robust and high specification for longevity of life.The rotary tools are constructed with a Kelly box to suite the individual rigs and are manufactured to the customers specification with cutting teeth or blades to optimise drilling in all types of soils.Typically auger blades or wedge teeth are used for clay drilling and bullet / point-attack teeth for soft and hard rock.
STDS - Water Well and Soil Investigation Drilling Auger
Our robust hollow stem augers have proven reliable in many demanding applications for water well and exploratory drilling.To suit individual requirements we can supply you with Tri-lock, hexagonal or octagonal connectors and drill bits with various combinations of teeth and pilots to suite your drilling conditions and rigs.It goes without saying that all hollow stem augers are designed to be ideal for high torques and deep drilling – for more efficient well and exploration drilling.
N.U.B. - Model Premodrill 50 - Drilling Rigs
The own developed STDS-Jantz drilling rig Premodrill 50 sets new dimensions to the well drilling industry. Premodrill 50 convinces with its simple operation via a remote control panel for driving , all drilling functions and also winch, mud pump and hydraulic casing extraction clamp.
N.U.B. - Solid Stem Auger Drilling
Our heavy-duty solid stem augers, when used with lead augers and drill heads, are ideal for drilling in all types of soil including Alluviums, mud, clay and sandy soils. Heavy clay and marl. Chalk, limestone and soft rock. Rock and concrete. Lead augers and drill heads with different tooth and holder configurations together with flight combinations are perfectly suited for your individual drilling needs.
STDS - Drill Rods & Casings Hammer
Our friction welded drill rods for use with down-the-hole hammers and for flushing are provided with the API threads. We also supply drill-strings with large internal diameters for use when flushing. Casing and casing shoes are manufactured in accordance with DIN 4918.
N.U.B. - Model CFA - Drilling Systems for Piling
Our drilling systems for piling can be used in a wide range of applications: Drilling systems for the double head drilling. Drilling systems for piling. Partial and full displacement augers.
STDS - Soil Mixing Pump
Cement in suspension is pumped through the inner pipe sections of the mixing stem to the mixing head at high pressure, and emerges at outlets in the drill-head, where it is mixed with the surrounding soil by the mixing tool.Thus the soil mixing creates no drill spoil – and both time and cost is saved transporting drill spoil and surplus concrete, which ensures faster and more efficient working.
