A special assignment of tasks needs precised designed systems with practice-oriented detailed solutions. Please ask our staff for an individual counseling of your exhaust gas extraction system.

In test lanes rotating systems, round trip carrier systems and automatic systems are being used. The criterion is the desired vehicle transfer rate.

The arm has a balanced, pneumatic spring aided parallelogram building. The arm is designed with a rod external of the hose. This minimizes the wearout, the air flow is increased and maintenance and calibration will be faciliated. Highly flexible hose with grey copolymers at the outside and 6 coatings aluminium foil on the inside. Built on concealed steel coil. Suitable for many ventilation purposes; especially for welding fume. Temperature resistance: -20°C – 140°C. Weight: Æ160 – 0,42 kg/m.

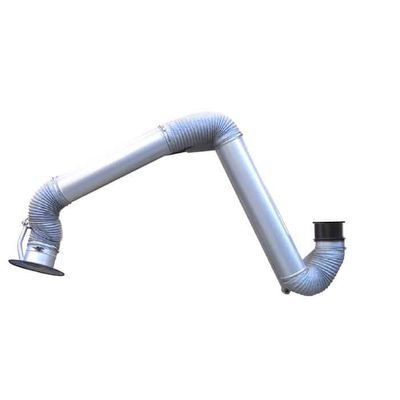

The fixed-mounted, powder enamelled steel pipes give the extraction arm an elegant and exclusive appearance. The arm is equipped with external rods and dampers for an easy handling. Highly flexible hose with grey copolymers at the outside and 6 coatings aluminium foil on the inside. Built on concealed steel coil. Suitable for many ventilation purposes; especially for welding fume. Temperature resistance: -20°C – 140°C. Weight: Æ160 – 0,42 kg/m.

Highly flexible hose with grey copolymers at the outside and 6 coatings aluminium foil on the inside. Built on concealed steel coil. Suitable for many ventilation purposes; especially for welding fume. Temperature resistance: -20°C – 140°C. Weight: Æ160 – 0,42 kg/m.

The polluted air is extracted and led into the filter unit either by the self-locking extraction arm or by other capturing elements. The particles or gases are extracted from the airflow during a filtering procedure consisting of several stages and the cleaned air returns to the working area.

As the filter cartridge with a big filter area is dedustable, the unit only generates minimal consequential costs. The filter cartridge remains in the unit during dedusting which guarantees that no dust can reach the working space. A stable sheet steel construction with continuous powder coating guarantees a low maintenance operation even under rough conditions.

Self-cleaing, stationary catridge filter in cyclone construction. Unit incl. pressure tank with manometer, dust container, dust bag, spark arrester and plump separator. Filter control with automatic overrun „Off-Line”-dedusting and differential pressure controlled compressed air cleaning (Digital differential pressure display).

Extraction table with back wall. Application as: gluing table – grinding table – polishing table – welding table – manual cutting table. Table top and back wall delivered with steel ribs. Built-in air distribution chamber. Dust container(s) for coarse pre-separated dust. Height-adjustable.

Suitable for extraction of fumes, gases and lighter sorts of dust. Extraction wall with curved backside for optimal air flow. Extraction wall must be mounted on firm surface. No wearing parts.
