Stolz S.A. products

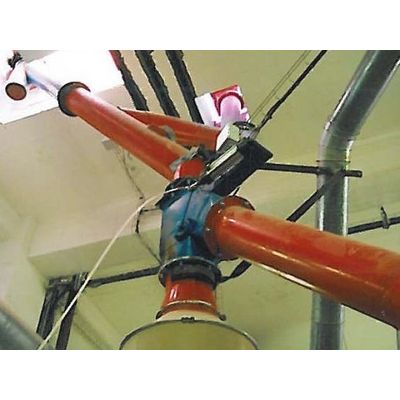

They are used to divert the product flowing through a pneumatic conveying circuit another or other circuits. A typical application is the filling of several silos from a single point of unloading tanks.

It uses compressed air at pressures ranging from 2 to 5 bar. It is suitable for abrasive products in which low transport speed prevents wear and tear in pipes, elbows and other items. This type of transport prevents dust leakage, it is flexible and adaptable to any route of transport, being fully automated. It eliminates breakage of the product by friction and disintegration of different density components.

They receive grain from ships, so they tend to be of high capacity and have multiple compartments for the storage of the different products received. They are highly automated to allow the rapid unloading of vessels and the agile handling of theproducts stored.

It is a specific oscillation system that optimizes the distribution of products while limiting the dynamic loads. It is suitable for all particle sizes whose spectrum ranges from large-diameter granules starchy products. The finished products can be of different types depending on the application using mono or multidirectional cases with flexible circular connecting elements. It provides the possibility of depression start. There is a version with an integrated crumble to the sifter. The PTAG sifter isa suspended case animated by a circular- horizontal motion. It is intended to separate the products from different particle sizes by successive steps of inclined screens The PTAG is mainly used to work with products intended for animal feed, but can be used for other applications. The particles sizes of the products worked with can vary from 0.5 mm to 25 mm. The trayectory of the movement is adjustable to adapt the linear velocity of the product according to each need.

They mix batch products. All dimensions flush hatches. Full bottom discharge to prevent any cross contamination. Different profiles of cells depending on the application (in canal, lira, cylindrical). Widely sized side inspection doors for easy maintenance.

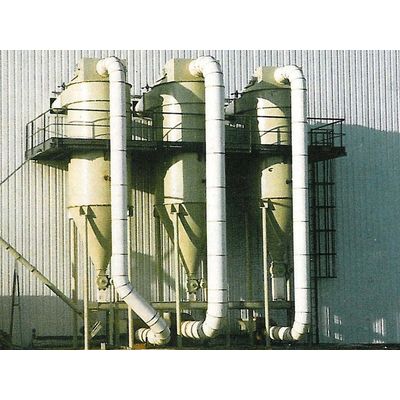

They perform a pre-separation (cyclone effect) of larger particles that can damage the filters. Thanks to its circular surface, they can withstand the suction pressure. The cyclofilters separate products from other products by high-pressure.

Industrial dusters with flat bags. Under the effect of the fan, the air admitted into the case comes through the bags from the outside to the inside and goes out again throuhg the case of treated air. The dust is deposited on the filter sleeve. The sequencer box cleans the filters of the bags after a filtration to prevent the dirt.

The product is downloaded in a watertight way. The sleeve is fitted to the inlet of the tank and an outer tube sucks the dust of the downloaded product. These sleeves offer plenty of options in material and structure (level control, vibrating sensor, keypads, drive type, bellow types and tissues, bell types) to be taken into account according to the product for which will be used.

Bellow feeder for open trucks, wagons, warehouses and ships. The sleeve starts downloading when it detects that its output is in contact with the floorof the wagon or ship. The dust generated by the discharge is drawn through an external pipe line. You can choose from several options in material and structure (level control, vibrating probes, keypads andbellow types and tissues).
