Stratum Reservoir products

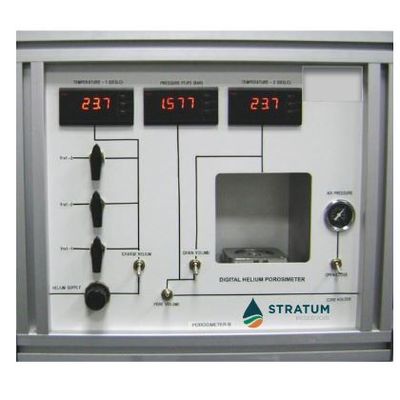

Measures both grain volume using internal matrix cup for samples and directly pore volume using ext. core holder. Porosimeter have several reference volumes (VI) that can be combined in order to adjust the ref. volume to achieve optimal calibration results for diff. sample sizes.

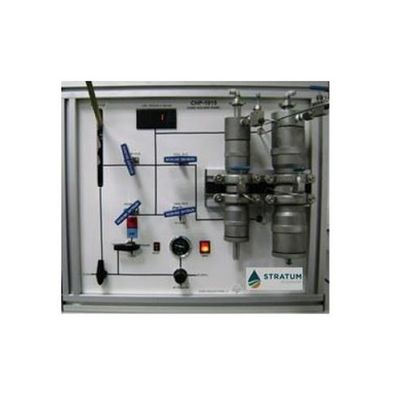

Panel with quick-load hydrostatic & BI-axial core holders, electrical insulated.

Quick-load light weight hydrostatic/BI-axial core holder, Ø1.0” diameter samples.

Scanner for continuous digital image log on both slabbed core and whole core.

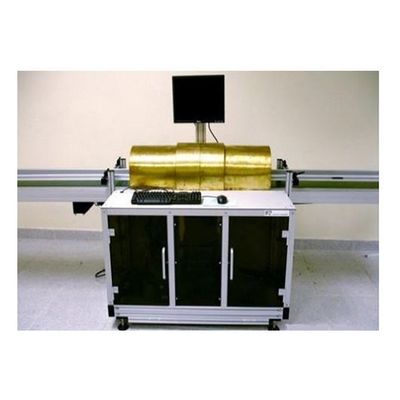

Heavy shielded Spectral Gamma Logger for optimal signal detection. Instrument is designed for improved core gamma measurements. Measures the natural radioactivity present in well cores. All sedimentary rocks contain natural radioactivity). Detects total gross gamma (API units) and elemental contribution of Potassium (%), Uranium (ppm) and Thorium (ppm).

Light weight Mercury free piston sample cylinder, TPED/DOT approved for transport.

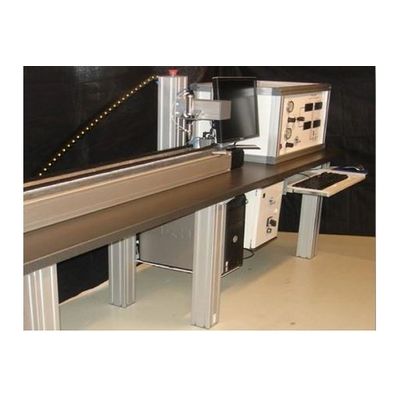

Scanner that measure gas permeability on both slabbed core and whole core.
