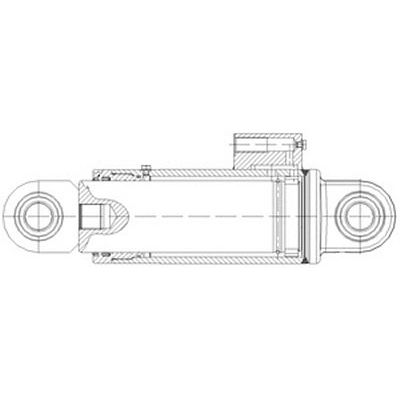

Series HZE4 was developed especially for installation into lifts up to 200 bar. It is characterized by a robust construction with minimum installation dimensions. The cylinders are designed for an operating pressure of 200bar in accordance with VBG14 (Lifting Platforms). The cylinder can be alternatively supported using a ball-and-socket joint that is maintenance-free or that can be relubricated. The connecting bore is designed for a burst pipe safety device or for a brake valve. The cylinder can be vented using the base-side or rod-side vent screw depending on the installation position. According to application, various sealing sets are included in the delivery of the cylinders. Various materials are available for the piston rods.

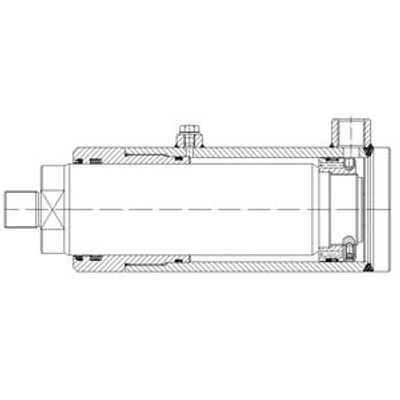

The HZE1 series cylinders are single-action pressure cylinders that are universally applicable due to their various models and sealing variants. The piston rod guide is designed to be screwable for maintenance tasks. The piston rod consists of hightensile structural steel with an approximately 25µm hard chromium-plated layer. Other materials and coatings are available on request. The end of the piston rod is guided into the cylinder tube, which minimizes the wear of the piston rod guide and the seal. Please consult us in case of radial forces and non-vertical installation.

The HZE5 series cylinders are single-action pressure cylinders that are universally applicable due to their various models and sealing variants. The piston rod guide is designed to be screwable for maintenance tasks. The piston rod consists of hightensile structural steel with an approximately 25µm hard chromium-plated layer. Other materials and coatings are available on request. The end of the piston rod is guided into the cylinder tube, which minimizes the wear of the piston rod guide and the seal.

The HZE1 series cylinders are single-action pressure cylinders that are universally applicable due to their various models and sealing variants. The piston rod guide is designed to be screwable for maintenance tasks. The piston rod consists of hightensile structural steel with an approximately 25µm hard chromium-plated layer. Other materials and coatings are available on request. The end of the piston rod is guided into the cylinder tube, which minimizes the wear of the piston rod guide and the seal.

The HZD1 series cylinders are double-action cylinders without end position damping that are universally applicable due to their various models and sealing variants. The piston rod guide is designed to be screwable for maintenance tasks. The piston rod consists of high-tensile structural steel with an approximately 25µm hard chromium-plated layer. Other materials and coatings are available on request.

The HZD3 series cylinders are double-action pressure cylinders without end position damping that are universally applicable due to their various models and sealing variants. The piston rod guide is designed to be screwable for maintenance tasks. The piston rod consists of hightensile structural steel with an approximately 25µm hard chromium-plated layer. Other materials and coatings are available on request.

The HZD4 series cylinders are double-action pressure cylinders with end position damping that are universally applicable due to their various models and sealing variants. The damping is not adjustable. The piston rod guide is designed to be screwable for maintenance tasks. The piston rod consists of hightensile structural steel with an approximately 25µm hard chromium-plated layer. Other materials and coatings are available on request.
