Summit Equipment, Inc. products

All Summit stationary compactors include standard remote power unit with 6` connections and with lockable controls (START button, `emergency ram control,` emergency STOP button, and container packing progress indicator)

All Summit stationary compactors include standard remote power unit with 6` connections and with lockable controls (START button, "emergency ram control," emergency STOP button, and container packing progress indicator)

All Summit stationary compactors include standard remote power unit with 8` connections and with lockable controls (START button, "emergency ram control," emergency STOP button, and container packing progress indicator)

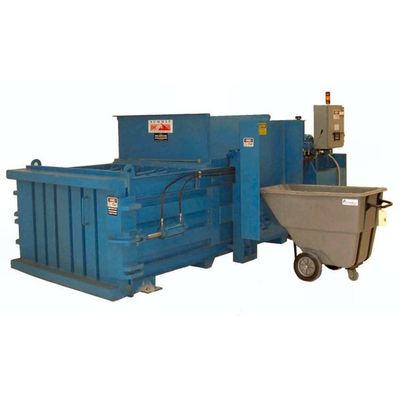

Bale size 24` x 36`W * 28`H. 3` cylinder. Typical OCC bale wt. |100-150 lbs.

Baler frames are built as appropriate for the cylinder forces applied. For example, an MD9 (`D` series with 9` cylinder, for scrap metal) is built much heavier than a D7 (`D` series with 7` cylinder, which could be used for shredded paper), even though their bale cross-sections are identical.

Different bale size. Larger or multiple cylinders. Longer or shorter top feed opening. Custom feed hoppers. Additional horsepower. Dual/redundant power unit. Handing. Fluffers. Bio-degradable AW hydraulic fluid. Shear blades. Ripper teeth. Fluid heating or cooling. Extra wear liners. Regen` hydraulics. Lower or Upper eye systems. Elevation for underneath cleaning. Dumpers, tippers

Replaceable wear liners and slatted floors. Adjustable, replaceable shear knives. Open-loop, thermostatically-controlled fluid cooling. Feed hopper atop top feed opening. Automatic wire strapper. Plc controls with variable wire spacing. Touch-screen interface for settings, help screens. Electric-eye auto-actuation. Floating clevis cylinder mount to protect seals

Adjustable tail pulley assembly.In-floor pit feeding section.2` cleats on 26` centers.30º incline section.10º nose-over section w/ idler sprocket.3/16` side walls, 36` high on incline & nose-over sections.Continuously-variable speed control, creep to approx. 120 FPM.Most sizes ship assembled for quick-fit installation

24`, 36`, 48` wide. Adjustable take-up at tail pulley assembly. Above-ground hopper, 48` feed height, flared to belt width 30`. PVC belt with 2` cleats 18` OC (available smooth-top, rough-top). 35º incline. Choice of 10`, 12`, 14`, or 16` length (call for other lengths). 18` side walls. Electric drive, 1.5HP, single-speed 50-60 FPM (call for other speeds). ON/OFF controls including E-STOP opposite side E-STOP. Shipped assembled for quick installation

24`, 36`, 48` wide. Adjustable take-up at head assembly. Below-ground hopper = 60` long x belt width wide, includes pit apron. PVC belt with 2` cleats 18` OC (available smooth-top, rough top). 35º incline. Choice of 18`, 20`, 22`, or 24` length (call for other lengths). 18` side wall. Electric drive, 2HP, single-speed 50-60 FPM (call for other speeds). ON/OFF controls including E-STOP opposite side . E-STOP. Shipped assembled for quick installation
