Sunbelt Corporate products

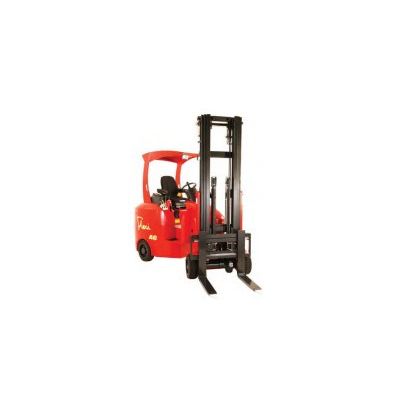

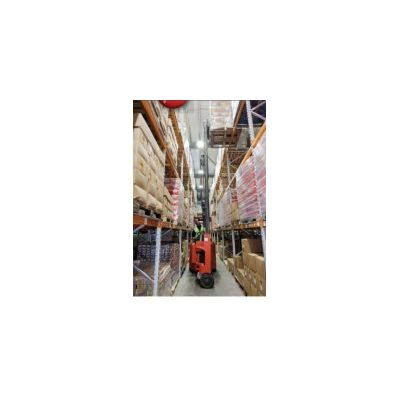

Convert existing costly guided very narrow aisle operations to Flexi. Flexi VNA can work in just 72”  with 48” deep loads.  Unique 230º over rotation . Lift heights to over 300”. Unique compact front axle -   maximum aisle clear ance. Chassis only 39” wide. Truck weight spread over four wheels,  low point loadings,  reduced tire wear. AC technology for increased speed and lower p ower consumption. Independent 1.8 KW power  steering motor conserves energy. No mechanical components under battery.

Chassis only 39” wide. 220º over rotation. Narrow front axle – maximum aisle clearance. Lift heights to over 362”. Clear vision lift mast - standard. Clear vision overhead guard desi gnexceeds all ANSI / ITSDF. Four wheel design exceeds Stability Standards. Fast acceleration and travel speed plus lower power usage with AC B56.1 - 2009 standards technology. Independent 1.8KW power steering motor for maximum energy saving. No mechanical components under battery.

Create up to 30% more warehouse capacity Flexi EURO works in 78” aisles. Lift heights to 26 feet Designed to bring Flexi articulated space saving and handling efficiency to users of all popular pallet types. Stacking performance Unique 39” wide chassis and “Artic” over rotate feature allow block stacking of pallets and drive in rack operation. Triplex or quad mast Lift mast options include triplex full free lift or quad fre e lift, t o suitmost operating conditions.

Exceptional lateral stability 5500 lb, twin deck articulation, combined with heavy duty 12.5” diameter slewing ring bearings, provide exceptional lateral stability. Engineered for high lift capability 49” or 53” 5000 pound chassis, plus special rear tires, delivers extra load rating and stability. Heavy duty fixed mast Heavy duty mast sections in strengthened front frame increases lift capacity. High definition LCD CCTV system available. Allows operator to stack safely to over 32 feet with minimum fatigue. Available with programmable lift height selector.

Lift heights to over 500`. Heavy duty fixed lift mast for unbeatable high level stability. Side shifting and tilting forks means special flat floors not required. Clear vision overhead guard. CCTV/LCD HiDEF operator vision system. Two chassis widths 49 1/4` and 53 1/4` for optimum aisle way performance. Heavy duty articulation design. AC technology and independent power steering motor for maximum energy saving. Saves space and adds 30% more ground level picking locations, compared to reach trucks. No mechanical components under battery.
