Sunostik Medical Technology CO.LTD. products

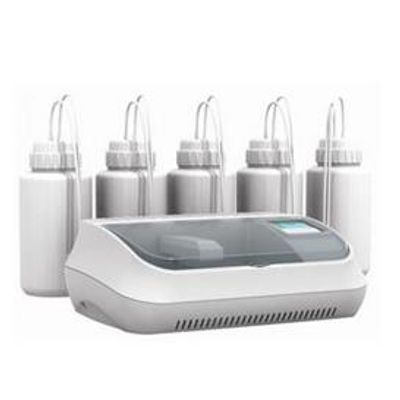

Large LCD display, intelligent software, easy to operate. Strong washing function, bottom washing and two positions aspiration make completed washing effect. 8-channel or 12 channel optional. Needle positions adjustable and up to 10 different needle positions pre-settable Pressure, volume & time adjustable, washing times, soap time pre-settable Pressure, volume & time adjustable, washing times, soap time pre-settable, whole plate or single strip reading. Needle positions adjustable and up to 10 different needle positions pre-settable 5 position of needles are adjustable, fit for multi-kind of plates. Self calibration and trouble alarm function. Large memory to store up to 100 program.

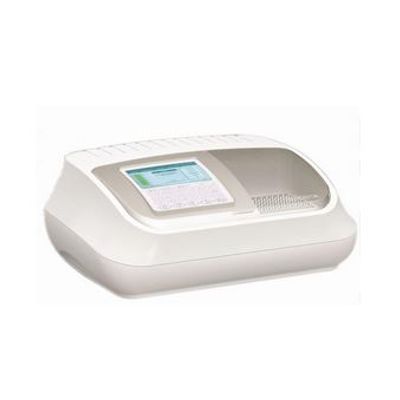

Advanced optical system, ensure accurate result and good repeatability. 8 channel optical fiber system enables 5 secs’ reading for 96 well plate. Bichromatic measurement, multi-calculation methods include ABS, Cut-off, Linearity and Log. Easily programmable and operate through PC software or keyboard. Ability to communicate with PC,free PC operating software. Plate shaking feature. 405nm, 450nm, 492nm, 630nm, 4 free positions. To carry out ideal operation and data management for Elisa test, we provide an intelligent PC software for SPR-960. Working base on Windows system. Control machine, test programming, calculating results and indicating reagent recession curve.  Multi-calculation methods on board: linearity, LogX, logY, logXY, Parabola regression, Polynomial regression, 4PL Regression. A complete data administration system for: micro-plate, reagent, patient, laboratory and results.

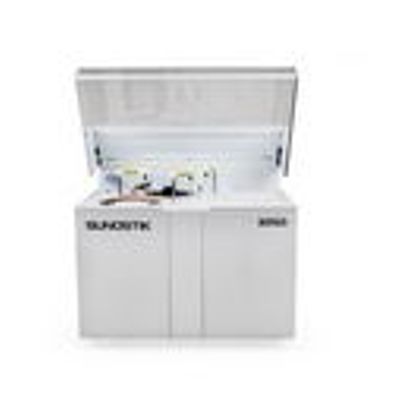

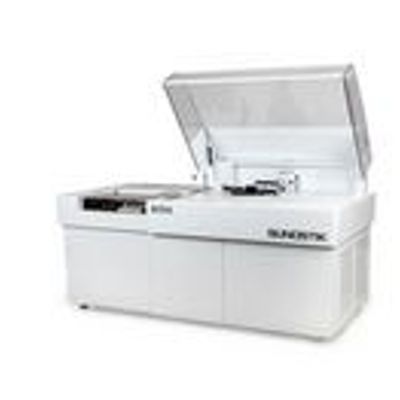

The instrument type:Automatic random choose discrete; Emergency priority detection. testing speed:800T/H,1400 T/H with ISE. test method:End point method, two points, rate method and the immune turbidimetry/double wavelength/wavelength. single wavelength method of linear and nonlinear calibration. Test project: conventional biochemical, specific protein, electrolytes, drugs, drug abuse, urine, cerebrospinal fluid, etc. analysis item at the same time: 90 photometric method, three electrode method.

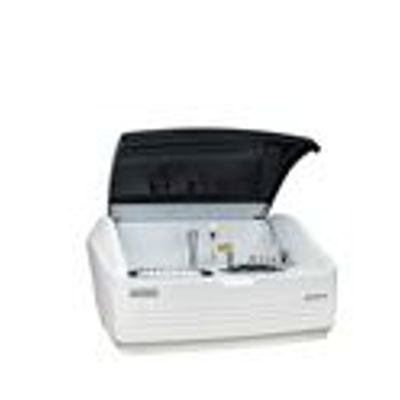

Test speed: Thoughput 400test/hour,800 test with ISE. Measuring wavelength: 340 to 800mm, 12 wavelengths invariable. Assay tape: End point, Kinetics, fixed time, immunoturbidimetry  Monochromatic, Bi-chromatic&Multi-standard Analysis Linearity&Nonlinearity Calibration Single&Dual reagent can be used. Calibration Mode: Linear(one-point,Two-point and Multi-point),Logit-log4p, Logit-log5Spine,Exponential, Polynomial, Parabola. Light source: Halogen lamp 6V/10W, Life span≥3000hours. Cuvette: Light pass length: 6mm. Reaction disk: Turntable. Teaction temperature: 37?±0.1?. Sample Volume: 2 to 35µL(in steps of 0.1µL). Power supply: 220V AC, 50/60HZ.

Sample tray: 44 sample position. Sample volume:3~30ul, programmed by 0.1ul step. Sample probe: Liquid level detection and  Collision protection automatically. Probe cleaning: automatic washing both inside and outside, Carry over

Stream line design, nice appearance. Self calibration and trouble alarm function. Absolutely open system: both of programming and reagent. Warning tone for finished sipping and any other ready function. Function sketches on main menu, the software is simplicity, easy and fast operation. Real time curve monitoring enhances the reliability of result. Memory for 100 programs and 20000 test results, results tracking by date. On-broad Quality control, control results available either memory or display.
